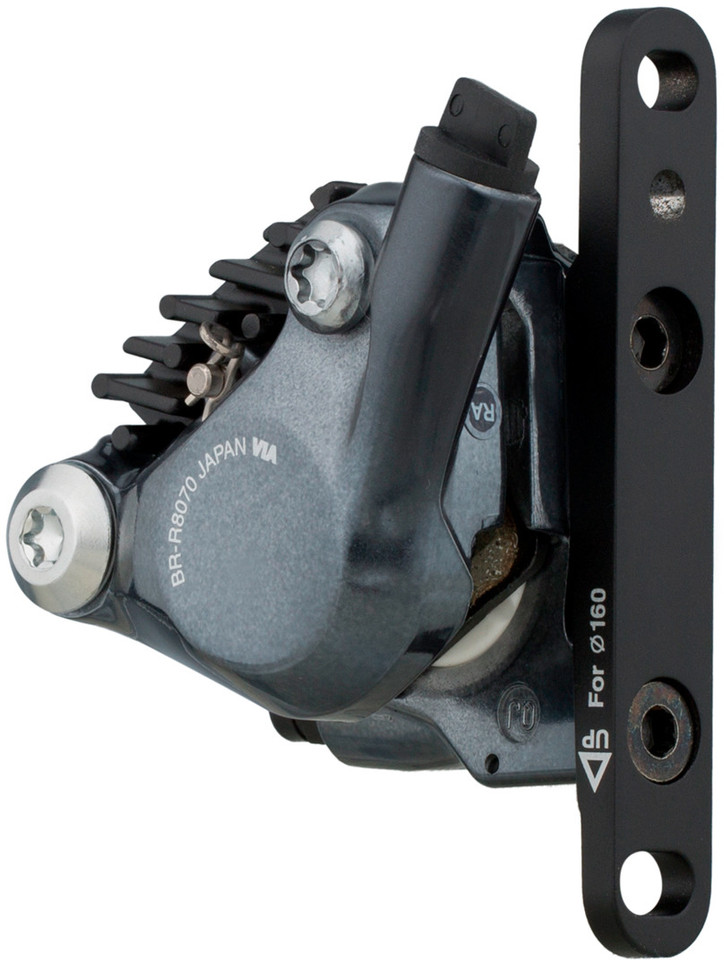

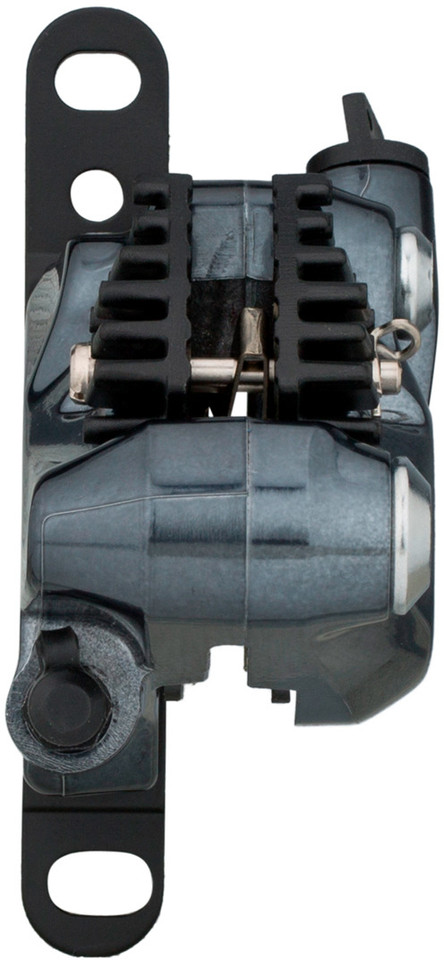

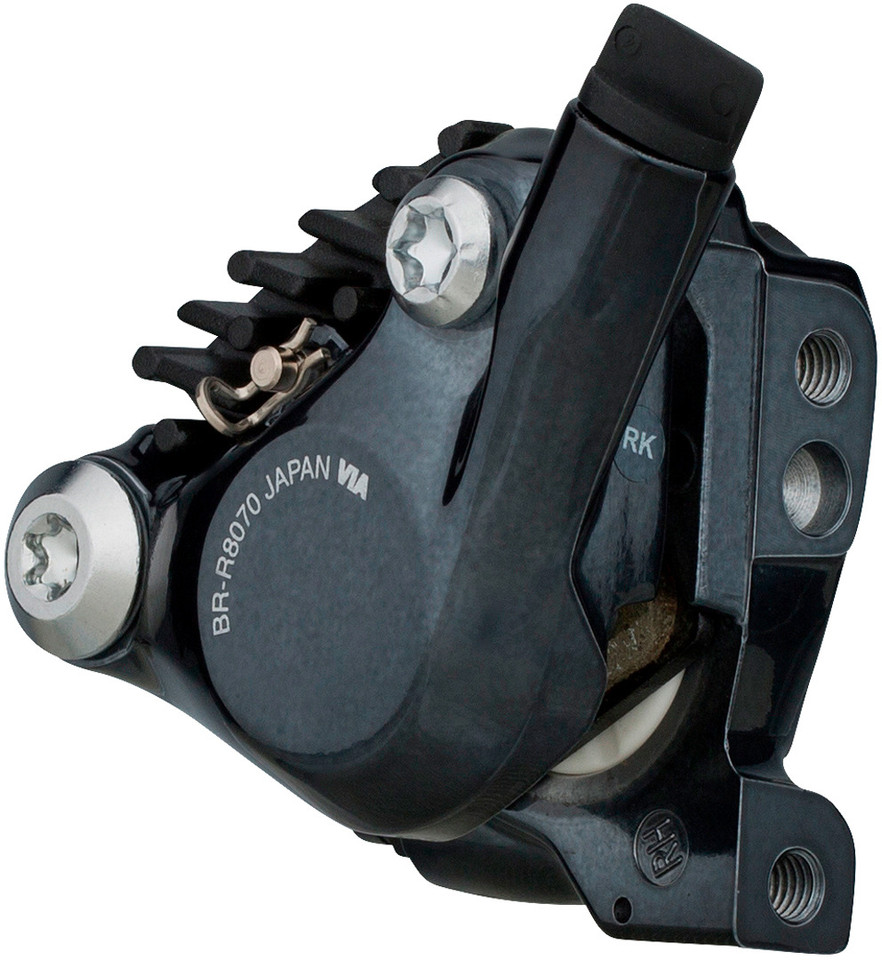

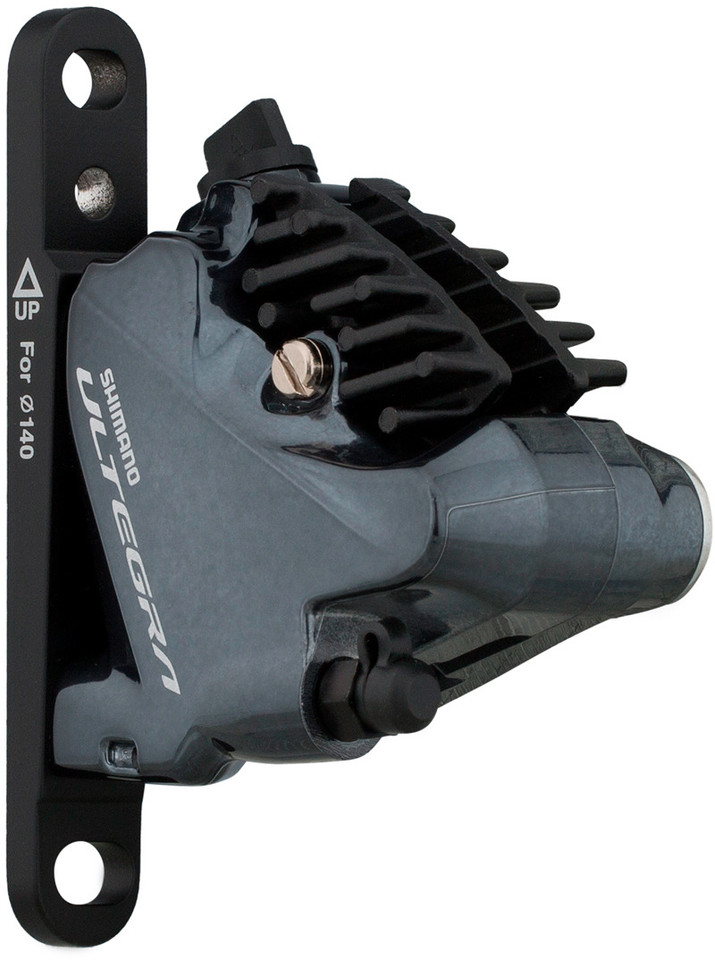

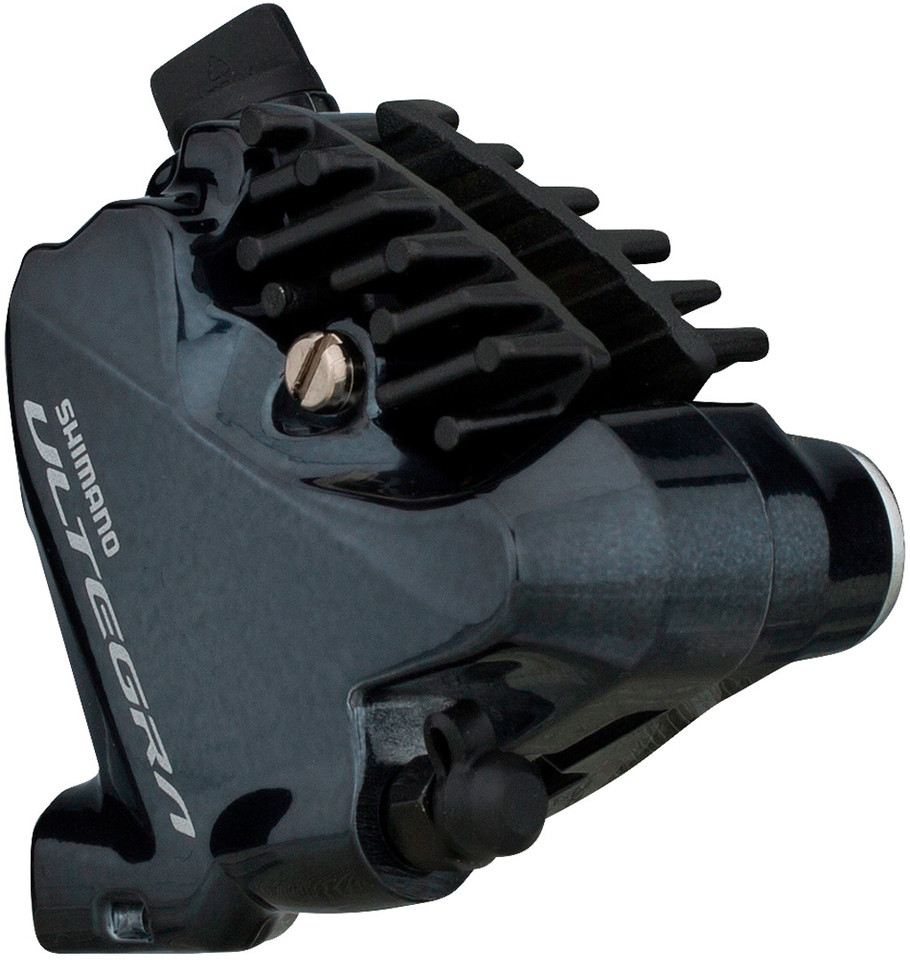

Shimano Ultegra BR-R8070 Brake Caliper w/ Resin Pads

Shimano Ultegra BR-R8070 Brake Caliper - More control, everywhere and at any time

The Shimano Ultegra BR-R8070 brake caliper offers road cyclists more braking control in all conditions and weather. Thanks to the flat-mount design, it integrates seamlessly into the profile of the road bike. The caliper has two ceramic pistons and has been equipped with Ice Technology for optimal heat dissipation - an effect that comes from using the right brake rotor (not included) and the organic cooling-fin brake pads supplied. In addition, the One Way Venting function enables easy, correct venting. A brake rotor adapter is supplied with the front version and bolts are included with the rear version.

Specifications:

Series:

Ultegra R8000

Application:

Road, Cyclocross

Type:

hydraulic, 2 pistons

Actuation:

mineral oil

Hose:

SM-BH90-JK-SSR, SM-BH90-J-SSR (not included)

Technical Information:

Caliper Mount:

flat mount

Pads:

resin with cooling fins

Design:

2-piece

Piston Material:

Ceramic

Calliper Material:

Aluminium

Hose Connection:

straight

Compatibility:

Brake Rotor:

140 mm, 160 mm, 180 mm (recommended: SM-RT800)

Pads:

organic and sintered; with narrow pad shape; standard and Ice Tech brake pads

Recommended Brake Lever:

ST-R8070, ST-R8020, also compatible with ST-R9120, ST-R9170, ST-R8025, ST-R7020, ST-R7025, ST-RX810, ST-RX810-LA, ST-RX810-LE, BL-RX810-L, ST-RX815, ST-RX600, BL-RX600-L, ST-RX400, ST-4720, ST-4725, ST-R9180, ST-R785, ST-RS685, ST-RS505 and additional brake lever BL-RX812

Features:

• more control under all conditions
• flat mount design for seamless integration into the aero profile of the bike
• two ceramic pistons
• anodised
• steel bolts (4 mm)

Technology:

One Way Bleeding
One Way Bleeding is a technique used on Shimano calipers that facilitates brake bleeding. The hose routing has been optimised so that no air bubbles remain in the brake calliper. In combination with the funnel, the brake can be bled cleanly and easily.

Manufacturer Numbers:

Front:

I-BRR8070F1RF

Rear:

I-BRR8070R1RF

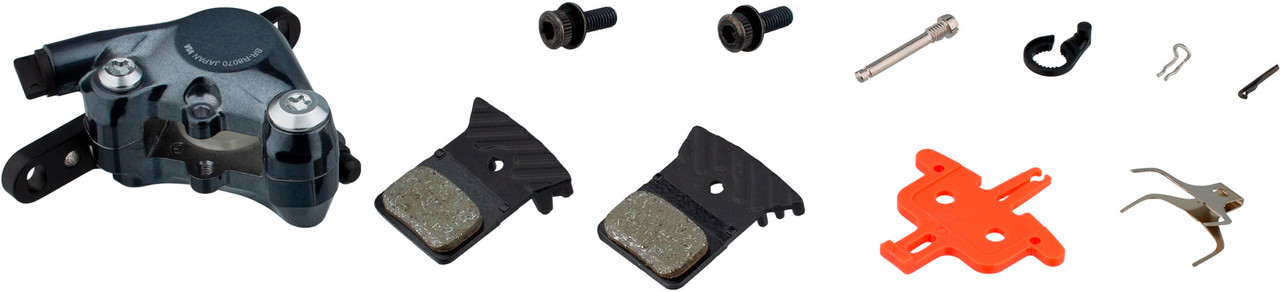

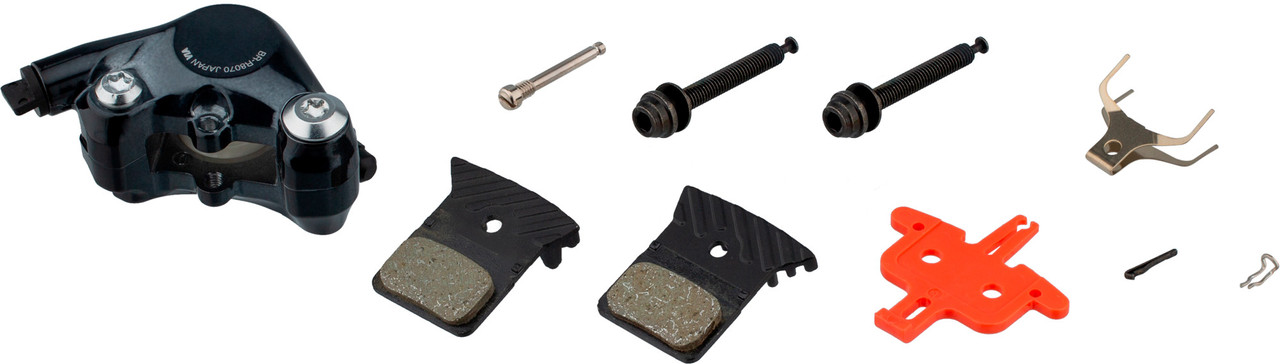

Contents:

• 1 x Shimano Ultegra BR-R8070 brake calliper
• 1 x pair Shimano brake pads
• 1 x disc brake adapter for front 140/160 + 160/180 mm (only for front)
• 2 x caliper bolts for 25 mm frame diameters (rear)

Order Together:

• FM to FM brake adapter SM-MA-R160 D/D for 160 mm brake rotor on 140 mm FM frame (for rear)
• FM-to-FM brake adapter SM-MA-R160 D/D for 180 mm brake rotor on 160 mm FM frame (for rear)

Optional Accessories:

• bolts for 15/20/30 mm frame diameters
• K05S Resin Pads
• K04S Metal Pads
• L04C Metal Pads with cooling fins

• black/Front wheel/without: 148 g
• black/Rear wheel/without: 138 g
