Shimano WH-MT500-CL Center Lock Disc 29" Wheelset

Shimano WH-MT500-CL 29" Wheelset - Aluminium rims and cone bearings

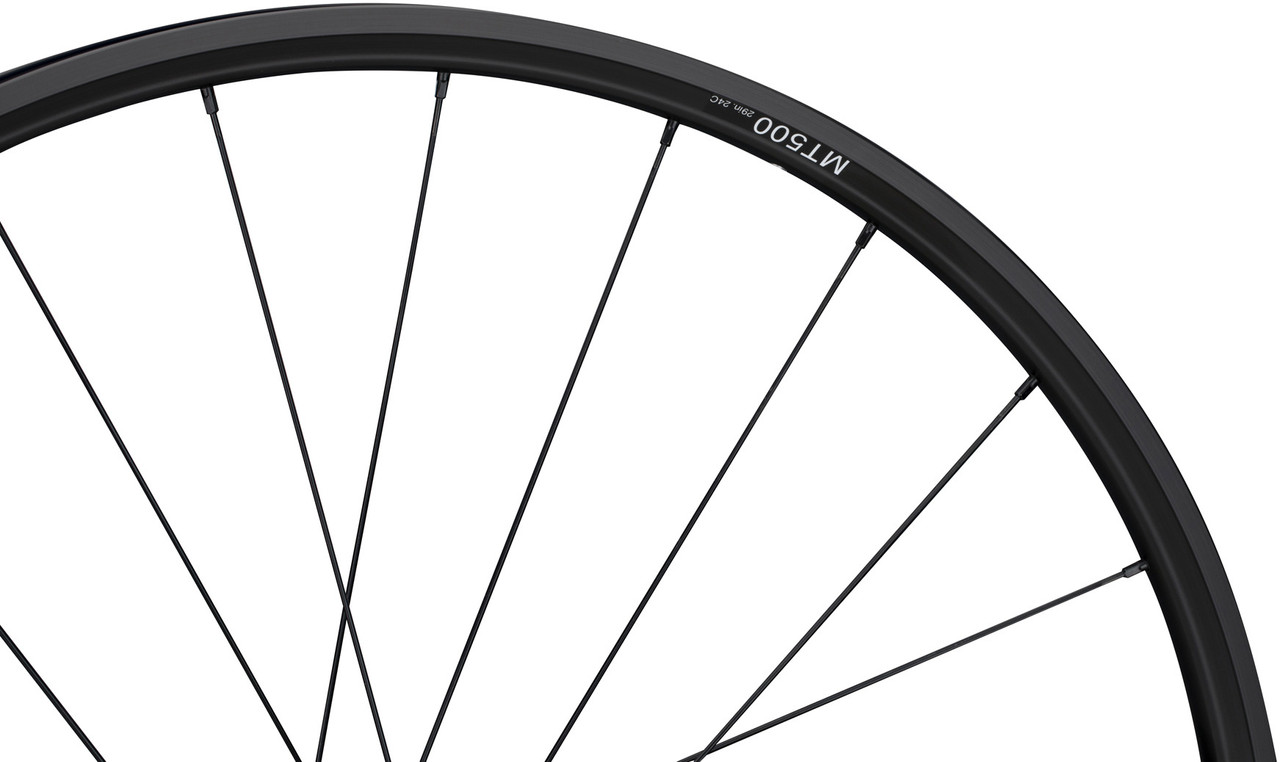

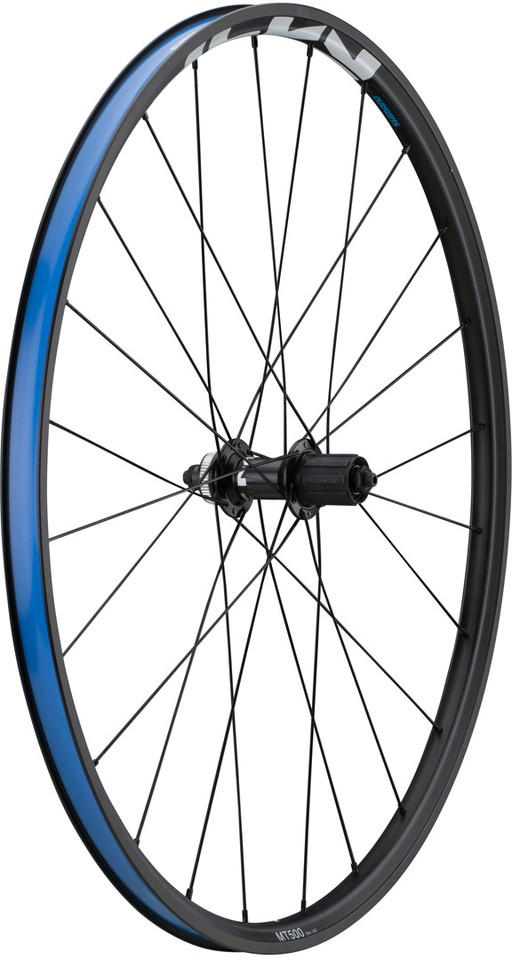

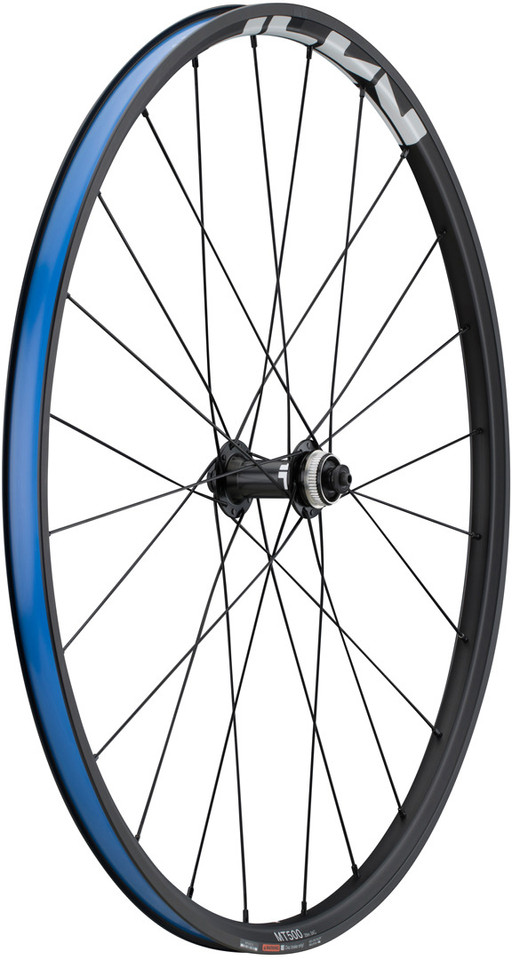

The WH-MT500-CL 29" wheelset by Shimano is a groupless mountain bike wheelset. It has an anodised aluminium rim with 24 mm inner width, painted aluminium hubs, a steel freehub, stainless steel double-butted spokes - 24 each on front and rear - and brass nipples. Sealed and greased cone bearings ensure low-friction running. You can choose between a version with quick releases on the front and rear wheel, a thru-axle version or a mixed version with thru-axle at the front and quick release at the rear. The WH-MT500-CL wheels have to be used with a tube.

Specifications:

Application:

All Mountain

Wheel Size:

29"

Tyre Type:

clincher tyre

Number of Spokes:

24

Brake Type:

Center Lock Disc

Tubeless System:

none

Technical Information - Rim:

Rim Flange:

with hook

Dimensions (ETRTO):

24-622

Inner Width:

24 mm

Outer Width:

29.6 mm

Depth:

21 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

Aluminium

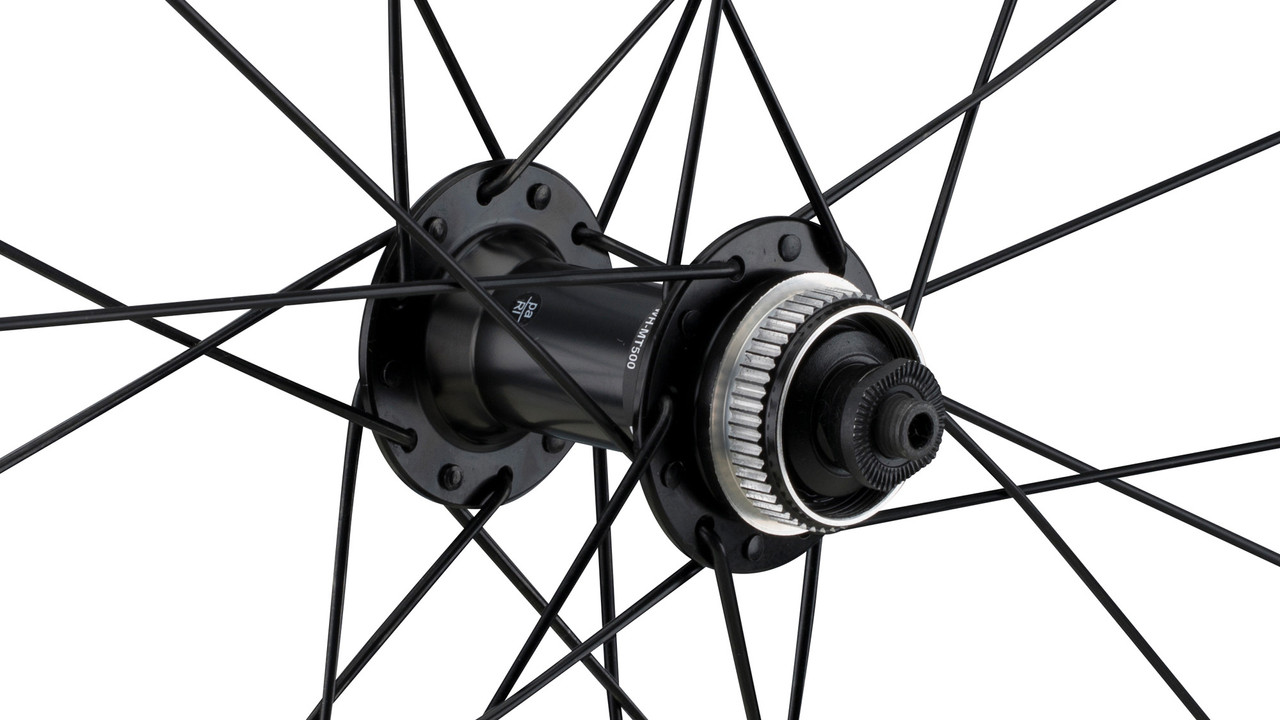

Technical Information - Front Hub:

Over Locknut Dimension:

9 x 100 mm quick release, 15 x 100 mm thru-axle

Bearings:

cup & cone

Body Material:

Aluminium

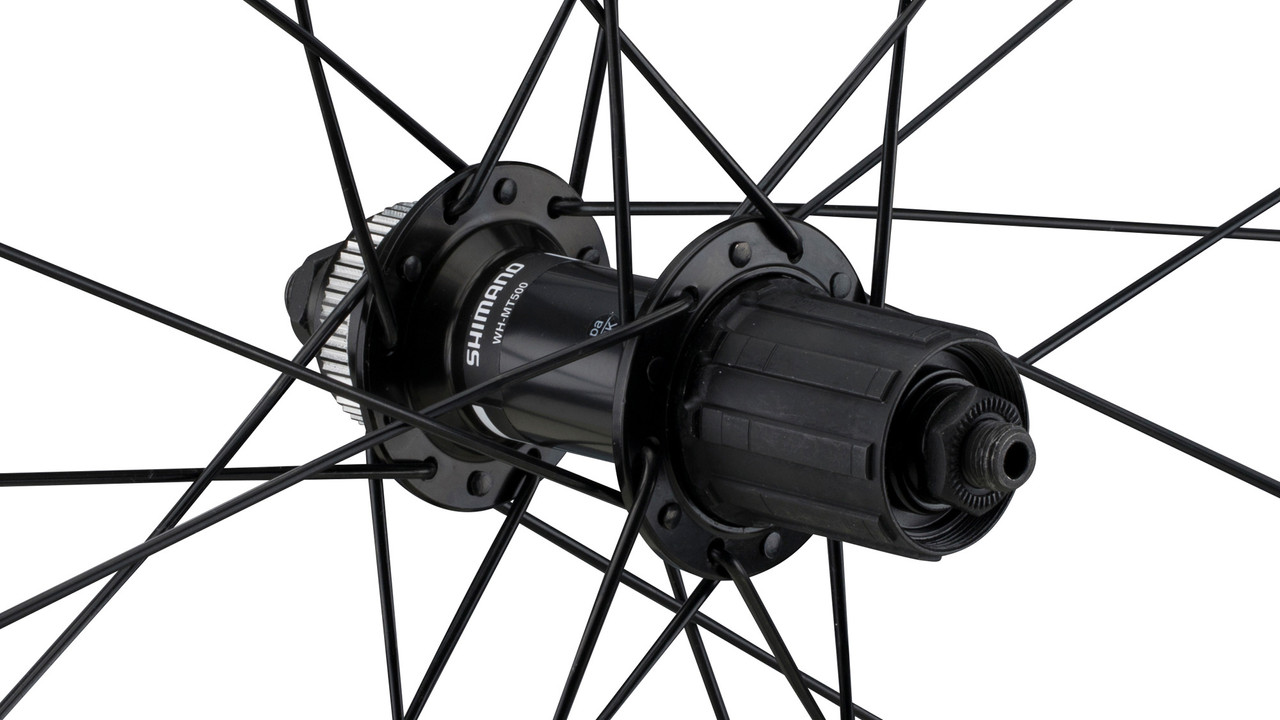

Technical Information - Rear Hub:

Over Locknut Dimension:

10 x 135 mm quick release, 12 x 142 mm thru-axle

Bearings:

cup & cone

Body Material:

Aluminium

Freehub Body Material:

steel

Freehub Body:

pawls

Technical Information - Lacing:

Front Lacing Pattern:

2-cross

Rear Lacing Pattern:

2-cross

Spoke Type:

J-Bend / double butted (2.3)

Spoke Size:

290 mm

Spoke Material:

stainless steel

Nipple Material:

brass

Approved For:

Recommended Tyre Width:

2.0" - 2.35"

Features:

• anodised aluminium rim, sleeved
• painted hubs
• hub axles made of steel (front/rear for quick release version, rear for thru-axle version) or aluminium (front for thru-axle version)
• labyrinth and contact seals
• internal grease coating

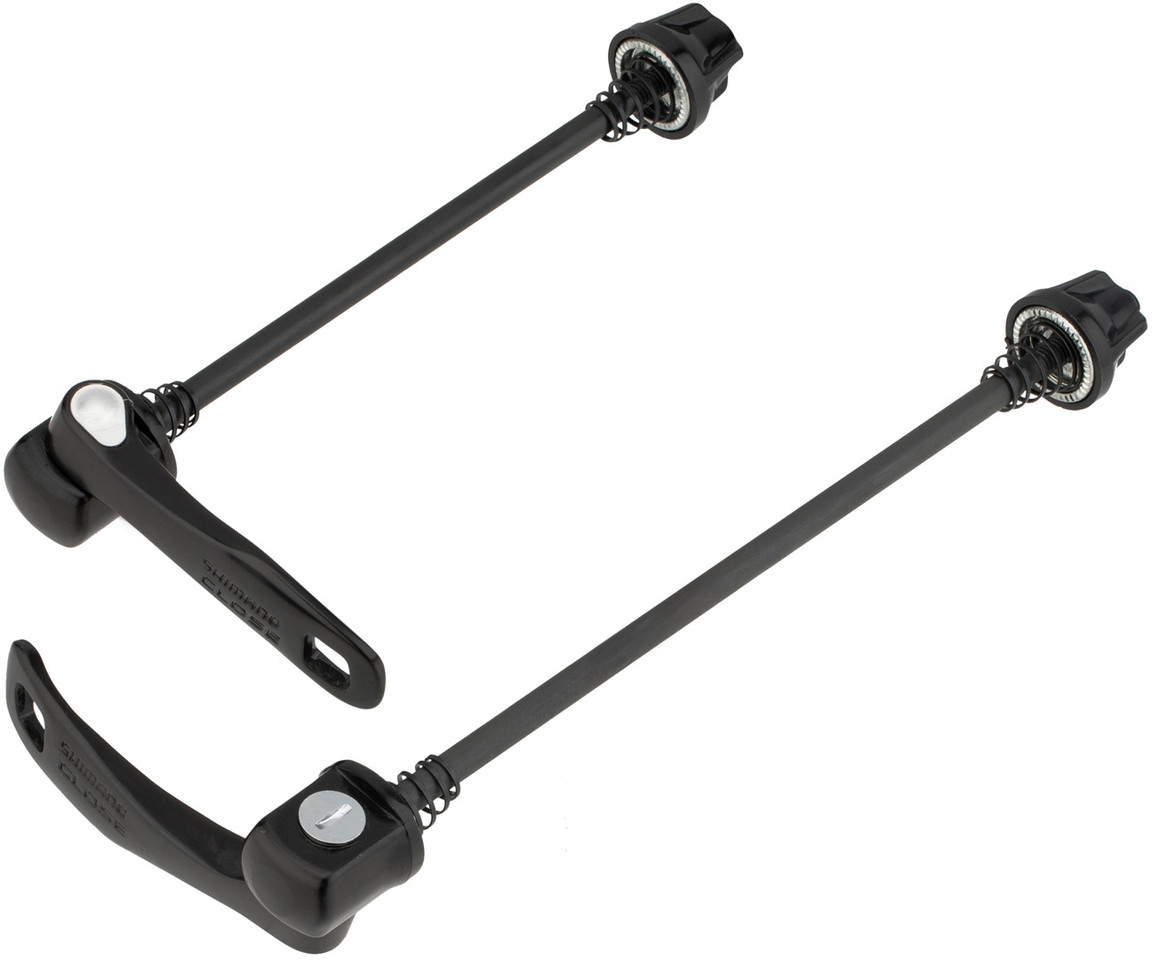

• quick release length (for quick release version) 133 mm (front) and 168 mm (rear), lever made of aluminium
• please use with rim tape (24-622, included)

Models:

29" set (front 9x100 + rear 10x135) Shimano:

Freehub:

Shimano MTB

Gearing:

8-/9-/10-/11-speed

Manufacturer Number:

E-WHMT500FD9 + E-WHMT500RD9C

29" set (front 15x100 + rear 12x142) Shimano:

Freehub:

Shimano MTB

Gearing:

8-/9-/10-/11-speed

Manufacturer Number:

E-WHMT500F15D9X + E-WHMT500R12D9

29" set (front 15x100 + rear 10x135) Shimano:

Freehub:

Shimano MTB

Gearing:

8-/9-/10-/11-speed

Manufacturer Number:

E-WHMT500F15D9X + E-WHMT500RD9C

Contents:

• 1 x Shimano WH-MT500-CL wheelset (front & rear)
• 2 x Shimano quick releases (front 9x100 only + rear 10x135) or 1 x quick release (front 15x100 only + rear 10x135)
• 2 x roll of rim tape
