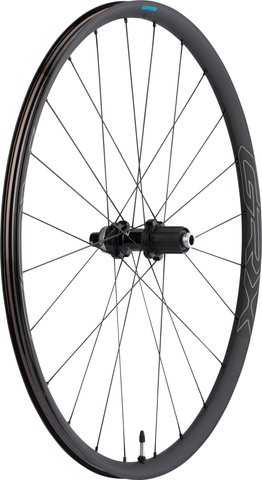

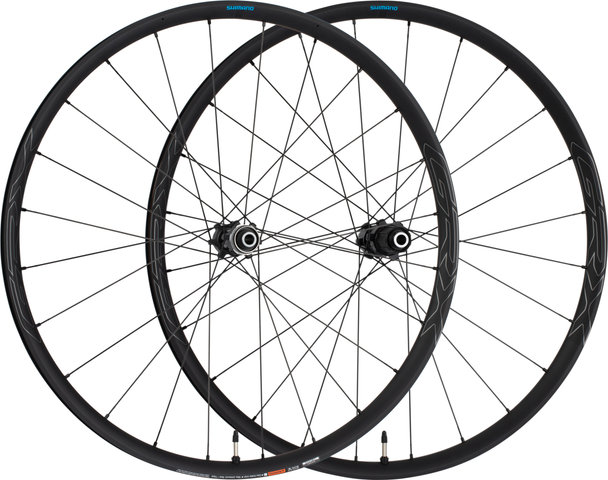

Shimano WH-RX570-TL GRX Center Lock Disc 28" Wheelset

The Shimano GRX WH-RX570 28" wheelset makes a great impression off the road

The Shimano GRX WH-RX570-TL 700C wheelset is specially designed for Gravel and off-road cycling. Compared to the 27.5" version, it is the faster, and more sporty. Its wide tubeless rim is characterized by low flex even when cornering hard. The asymmetrical rim shape has been optimised for dirt repellence via an MTB-tested design. Overall, the WH-RX570 wheels stand for high stiffness and durability with surprisingly low weight.

Are you interested in the GRX series? Then have a look at our Shimano gravel site. You will find many more products there.

Specifications:

Application:

Gravel, Cyclocross, City & Touring

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

24

Brake Type:

Center Lock Disc

Tubeless System:

TL/UST

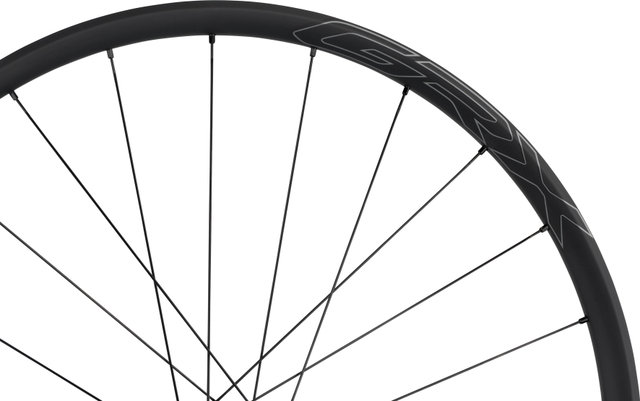

Technical Information - Rim:

Type:

Offset 2.5 mm

Rim Flange:

with hook

Dimensions (ETRTO):

21-622

Inner Width:

21.6 mm

Outer Width:

26 mm

Depth:

22 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium

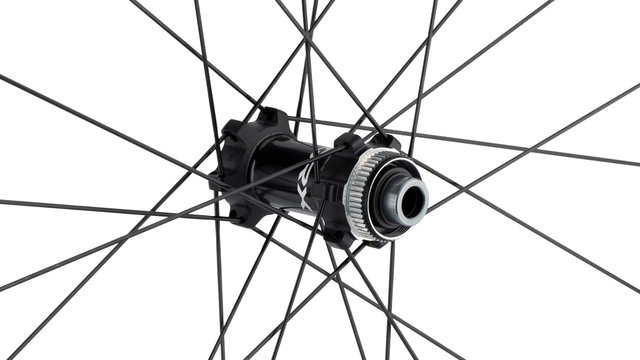

Technical Information - Front Hub:

Over Locknut Dimension:

12 x 100 mm thru-axle

Bearings:

cup & cone

Body Material:

aluminium

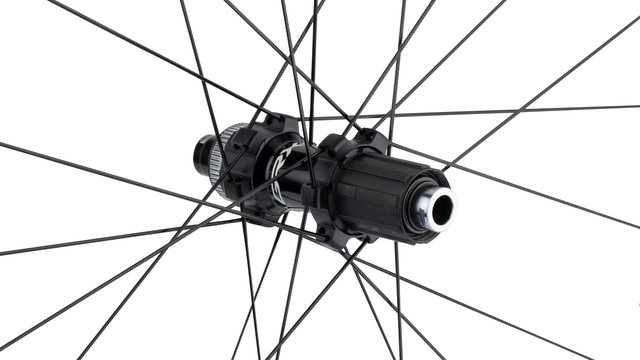

Technical Information - Rear Hub:

Over Locknut Dimension:

12 x 142 mm thru-axle

Bearings:

cup & cone

Body Material:

aluminium

Freehub Body Material:

steel

Freehub Body:

pawls

Technical Information - Lacing:

Front Lacing Pattern:

2-cross

Rear Lacing Pattern:

2-cross

Spoke Type:

bladed / straight pull /straight

Spoke Size:

296 mm

Spoke Material:

stainless steel

Nipple Size:

2 mm (diameter)

Nipple Material:

aluminium

Approved For:

Air Pressure (max.):

5 bars

Recommended Tyre Width:

32-622 - 42-622

Features:

• optimally designed for fast, reliable riding on mixed terrain
• wide tubeless rim limits flex when cornering aggressively
• feeling of rotation similar to smaller wheels
• high stiffness and durability without additional weight
• MTB-inspired, asymmetrical, dirt-repellent rim shape
• welded rim joint
• CBN precision machined bearings, polished, with contact seal
• freehub body has contact seal
• internal grease sleeve
• anodised and painted rim, anodised hub body
• aluminium hub axles
• use tubeless rim tape (included)

Technology:

Cup and Cone Bearings
Angular contact ball bearings of the cup & cone type are superior to sealed cartridge bearings in terms of load carrying capacity, as they distribute lateral and vertical forces better, and thus run particularly smoothly and last a long time. They are also easier to adjust, maintain and replace.

E-Thru
E-Thru is a tool-free thru-axle system from Shimano that optimises the stiffness-to-weight ratio and ensures easy handling via its reliable internal cam mechanism. It is characterised by a high torsion resistance and thus also supports cornering at high speed. E-Thru thru-axle hubs and thru-axles are available in the corresponding over locknut dimensions for front and rear.

Colour Info:

black:

• Rim: black
• Hubs: black
• Spokes: black
• Nipples: black

Models:

28" set (front 12x100 + rear 12x142) Shimano:

Freehub:

Shimano Road

Gearing:

8-/9-/10-/11-/12-speed

Note:

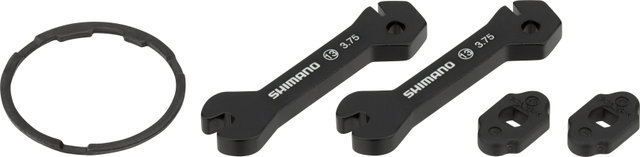

Assembly of 8-/9-/10-speed cassettes on Shimano Road freehub bodies requires a 1.85 mm spacer.

Manufacturer Number:

E-WHRX570LFED70 + E-WHRX570LRED70

Contents:

• 1 x Shimano WH-RX570-TL-700C wheelset (front & rear)
• 2 x rolls tubeless rim tape (applied)
