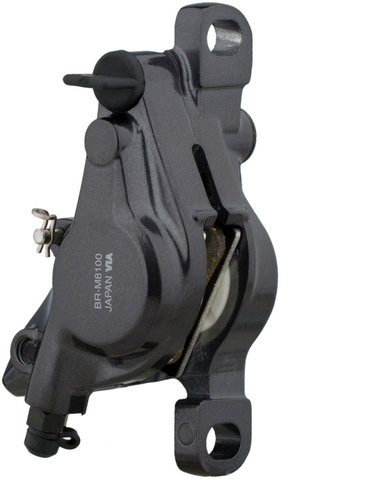

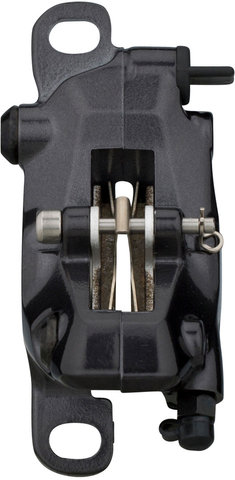

Shimano XT BR-M8100 Brake Caliper w/ Resin Pads
The Shimano XT BR-M8100 brake caliper is a lightweight two-piston system
The Shimano XT BR-M8100 brake caliper has two pistons and was specially designed for Cross Country use. It features excellent brake control and a simple connection system. Thanks to its excellent, easily modulated braking performance, it's easy to keep your focus on the trail.
Specifications:
- Series:
- Deore XT M8100
- Application:
- Cross Country, City & Touring
- Type:
- hydraulic, 2 pistons
- Actuation:
- mineral oil
- Hose:
- SM-BH90-SBM (not included)
Technical Information:
- Mount:
- post mount
- Pads:
- resin
- Design:
- 2-piece
- Calliper Material:
- aluminium
- Piston Material:
- Ceramic
- Hose Connection:
- banjo
Compatibility:
- Mounting Position:
- front or rear wheel
- Brake Rotor:
- 140 mm, 160 mm, 180 mm, 203 mm, 220 mm (recommended: RT-MT800)
- Pads:
- organic and sintered; with narrow pad shape; standard and Ice Tech brake pads
- Recommended Brake Lever:
- BL-M8100, BL-T8100
Features:
- excellent brake control helps you to focus on the trail
- lightweight 2-piston system (ceramic)
- easy and quick installation
- painted
- steel bolts (5 mm)
Technology:
One-Way BleedingOne Way Bleeding is a technique used on Shimano calipers that facilitates brake bleeding. The hose routing has been optimised so that no air bubbles remain in the brake calliper. In combination with the funnel, the brake can be bled cleanly and easily.
Manufacturer Number:

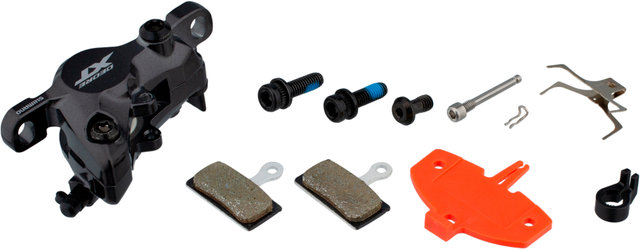

I-BRM8100MPRXContents:
- 1 x Shimano XT BR-M8100 brake calliper
- 1 x pair Shimano brake pads with spring
- 2 x calliper bolts
- 1 x Shimano Y-2RT98010 banjo bolt
- 1 x pad retaining bolts
- 1 x snap ring
Order Together:
Optional accessories:
- G04S Metal Linings w/o Cooling Fins
- J03A Resin Pads with Cooling Fins
- J04C Metal Pads w/ Cooling Fins
