Shimano XT BR-M8120+ BL-T8100 Disc Brake Set J-Kit

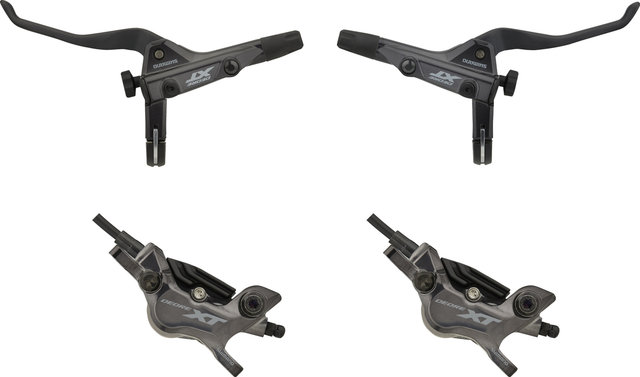

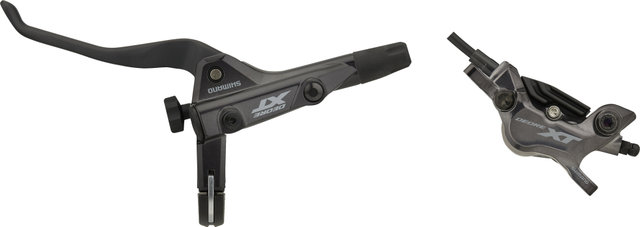

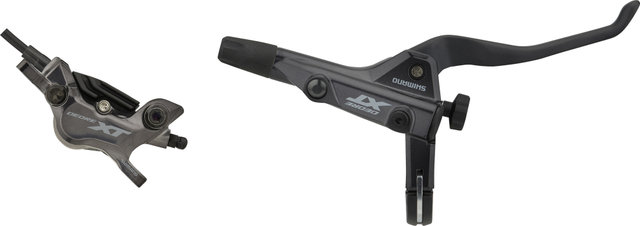

The Shimano XT BR-M8120 disc brake set with BL-T8100 3-finger brake levers

This version of the Shimano BR-M8120 XT disc brake set, consisting of front and rear brakes, comes with two BL-T8100 3-finger brake levers, which impress with very good operability and braking dosage. They are compatible with I-Spec II shifters, which can be installed on the same mount to save space. The handle width can be adjusted without tools. The BR-M8120 are four-piston calipers specifically designed for enduro and trail riding, featuring excellent brake control and a simple connection system. That way, you can give your full attention to the challenges of the terrain. Organic brake pads with cooling fins are also supplied.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Series:

Deore XT M8100

Application:

Enduro, All Mountain

Type:

hydraulic, 4 pistons

Actuation:

mineral oil

Hose:

SM-BH90-SBM

Hose Length (Front/Rear):

1000 mm / 1700 mm

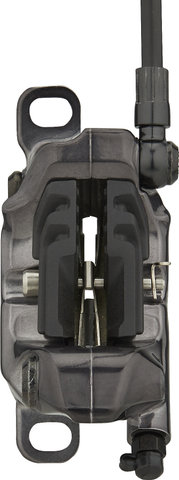

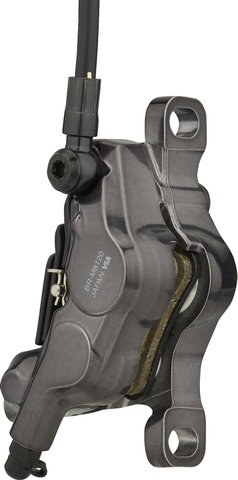

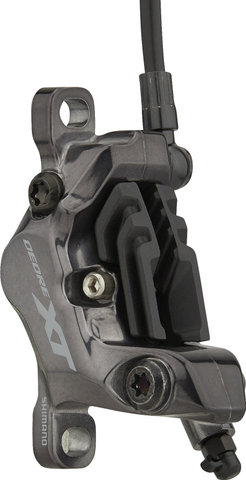

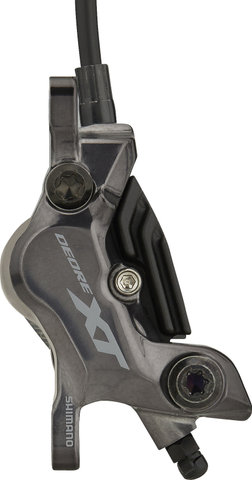

Technical Information - Caliper:

Caliper Mount:

post mount

Pads:

resin with cooling fins

Design:

2-piece

Calliper Material:

aluminium

Piston Material:

Ceramic

Hose Connection:

banjo

Technical Information - Lever:

Lever Length:

3-finger

Adjustment Options:

reach adjust (no tools required)

Mount:

clamp (split), I-Spec II

Design:

right (side-specific), left (side-specific)

Brake Lever Material:

aluminium

Brake Lever Housing Material:

aluminium

Hose Connection:

straight

Compatibility:

Mounting Position:

• front brake caliper: brake lever left
• rear brake caliper: brake lever right

Brake Rotor:

140 mm, 160 mm, 180 mm, 203 mm, 220 mm (recommended: RT-MT800)

Pads:

organic and sintered; with narrow pad shape; standard and Ice Tech brake pads

E-Bike:

EP8 EP801, EP8 EP800 for MTB / Touring

Features:

Brake Caliper:

• excellent brake control helps you to focus on the trail
• extremely powerful braking for more self-confidence and downhill control
• less brake rotor noise and 10% more braking power than M8000
• easy and quick installation
• 4 ceramic pistons
• approved for use with transport and cargo bikes
• painted
• steel bolts (5 mm)

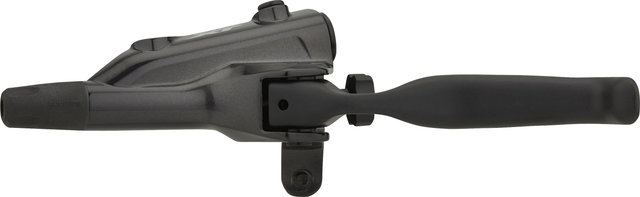

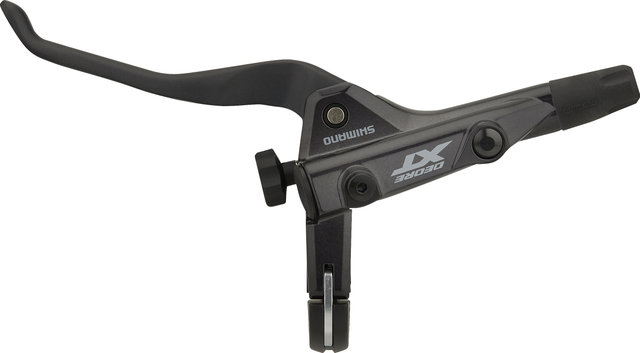

Brake Lever:

• longer 3-finger lever
• I-Spec II compatible
• greater braking power and intuitive modulation, adapted to touring E-bikes
• improved ergonomics and control
• funnel venting with M5 funnel
• anodised lever, painted body
• stainless steel clamp bolts

Technology:

One-Way Bleeding
One Way Bleeding is a technique used on Shimano calipers that facilitates brake bleeding. The hose routing has been optimised so that no air bubbles remain in the brake calliper. In combination with the funnel, the brake can be bled cleanly and easily.

I-Spec II
I-Spec II describes a variant of the connection between the brake lever and the shift lever on MTB or, more precisely, flatbar gears from Shimano. This type of mount makes for a tidy cockpit as it reduces the number of clamps needed. On some models it is also possible to adjust the shift lever both horizontally and vertically in relation to the brake lever. Then there is 12 mm of adjustment travel in the longitudinal direction and/or up to 15° of rotation - for optimum ergonomic adaptation to your riding style, seat position and anatomy.

J-Kit
J-Kit is a simple line connection system for hydraulic brakes from Shimano, so that you can install your brakes quickly and easily. The brake hose does not come connected to the brake to facilitate routing of the hose in the frame. The brake hose is already filled with oil in the J-Kit and sealed with a thin membrane. There is a small pin in the J-Kit brake lever that pierces this diaphragm during assembly to allow oil to flow.

Manufacturer Number:

I-M81201JLFPSA100 + I-M81201JRRXSA170

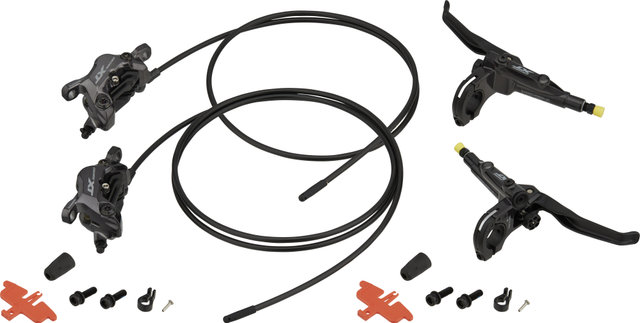

Contents:

• 2 x Shimano XT BR-M8120 + BL-T8100 disc brakes, front & rear
• 1 x Shimano SM-BH90-SBM brake hose, 1000 mm (front)
• 1 x Shimano SM-BH90-SBM brake hose, 1700 mm (rear)
• 2 x pair Shimano brake pads, resin
• 2 x insert
• 4 x calliper bolts
• 2 x olive (installed)
• ready for installation, filled, bleeding is recommended after installation

Order Together:

• TL-BH61 tool for insert installation
• Disc Brake Adapter
