Shimano XT BR-M8120 Disc Brake Set w/ Sintered Pads J-Kit
Item number: 71597

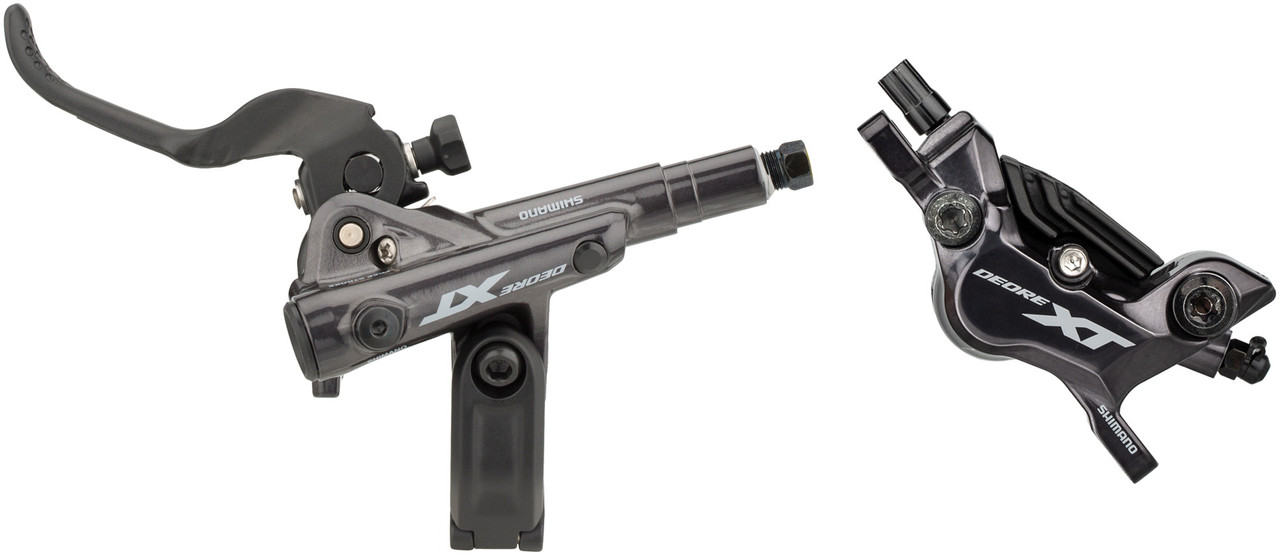

XT BR-M8120 disc brake set by Shimano - more control and self-confidence downhill

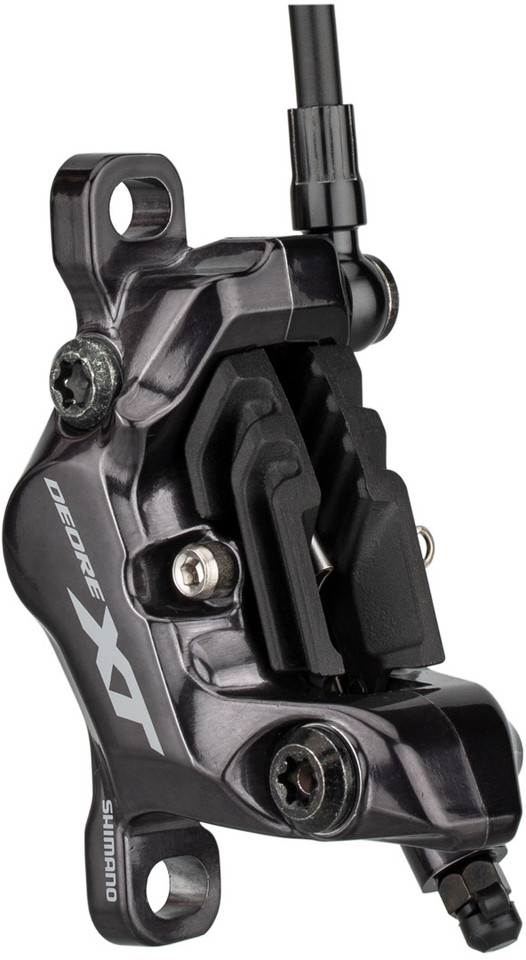

Shimano XT BR-M8120 is a four-piston disc brake set with sintered brake pads specially designed for Enduro and Trail applications. The brake callipers feature excellent brake control and a simple connection system. The I-Spec EV compatible BL-M8100 brake levers are mounted at an angle to provide an additional contact point. This increases stiffness and provides more direct feedback. In addition, Shimano Servo Wave increases braking power: more performance is available with shorter empty travel.
Guidelines for Replacing E-bike Components:
Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.Specifications:
- Series:
- Deore XT M8100
- Application:
- Enduro, All Mountain
- Type:
- hydraulic, 4 pistons
- Actuation:
- mineral oil
- Hose:
- SM-BH90-SBM
- Hose Length (Front/Rear):
- 1000 mm/1700 mm

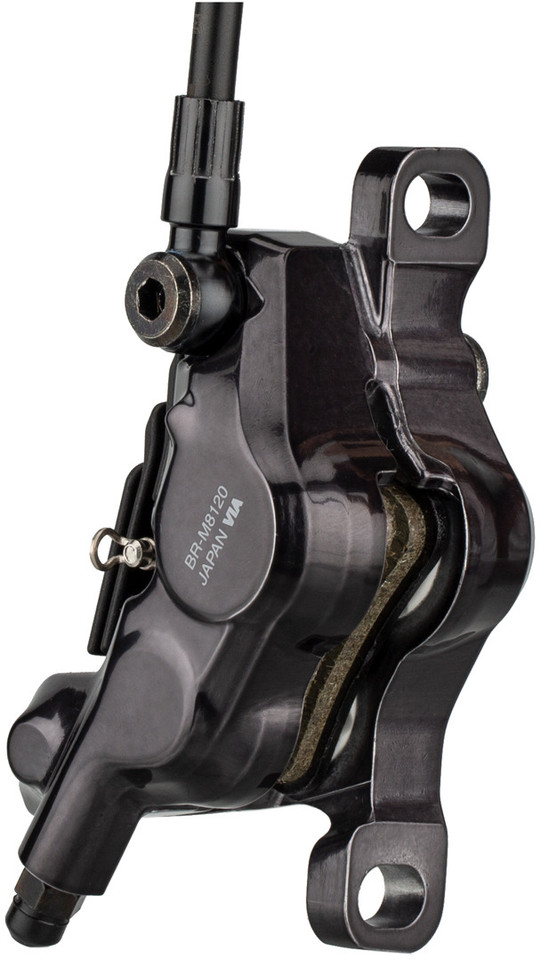

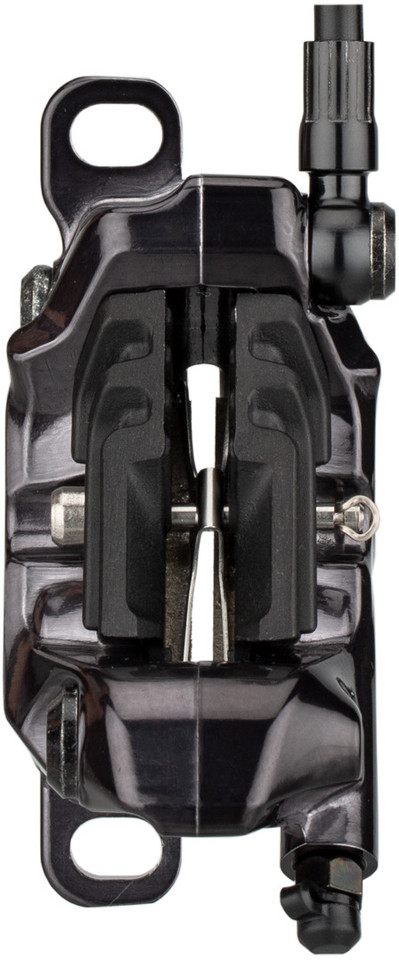

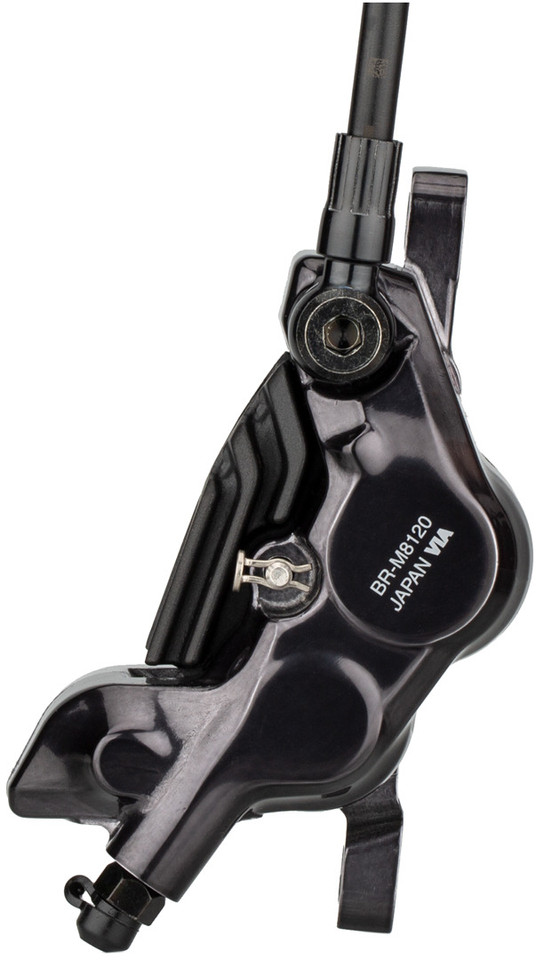

Technical Information - Caliper:
- Caliper Mount:
- post mount
- Pads:
- sintered with cooling fins
- Design:
- 2-piece
- Calliper Material:
- aluminium
- Piston Material:
- Ceramic
- Hose Connection:
- banjo
Technical Information - Lever:
- Lever Length:
- 2-finger
- Adjustment Options:
- reach adjust (no tools required), contact point
- Mount:
- clamp (split), I-Spec EV
- Design:
- right (side-specific), left (side-specific)
- Brake Lever Material:
- aluminium
- Brake Lever Housing Material:
- aluminium
- Hose Connection:
- straight
Compatibility:
Mounting Position:- front brake caliper: brake lever left
- rear brake caliper: brake lever right
- Brake Rotor:
- 140 mm, 160 mm, 180 mm, 203 mm, 220 mm (recommended: RT-MT800)
- Pads:
- organic and sintered; with narrow pad shape; standard and Ice Tech brake pads
- E-Bike:
- EP8 EP801, EP8 EP800 for MTB / Touring
Features:
Brake Caliper:- excellent brake control helps you to focus on the trail
- extremely powerful braking for more self-confidence and downhill control
- less brake rotor noise and 10% more braking power than M8000
- easy and quick installation
- 4 ceramic pistons
- approved for use with transport and cargo bikes
- painted
- steel bolts (5 mm)

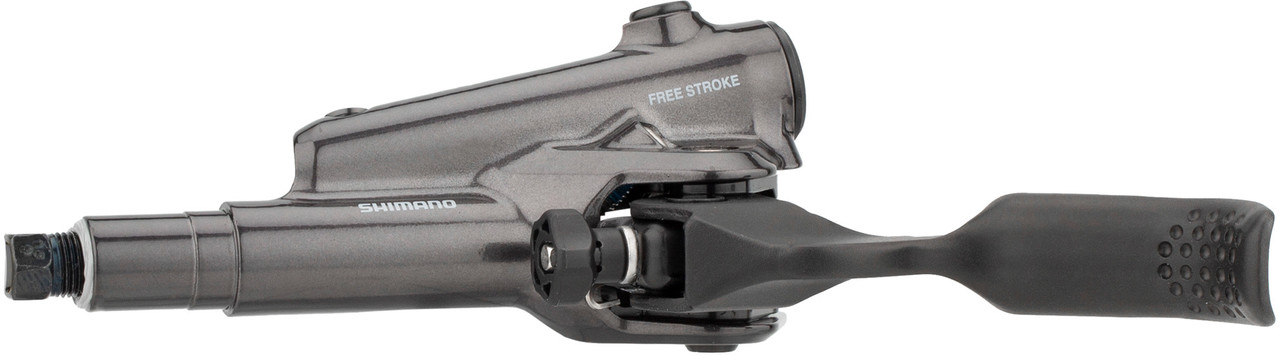

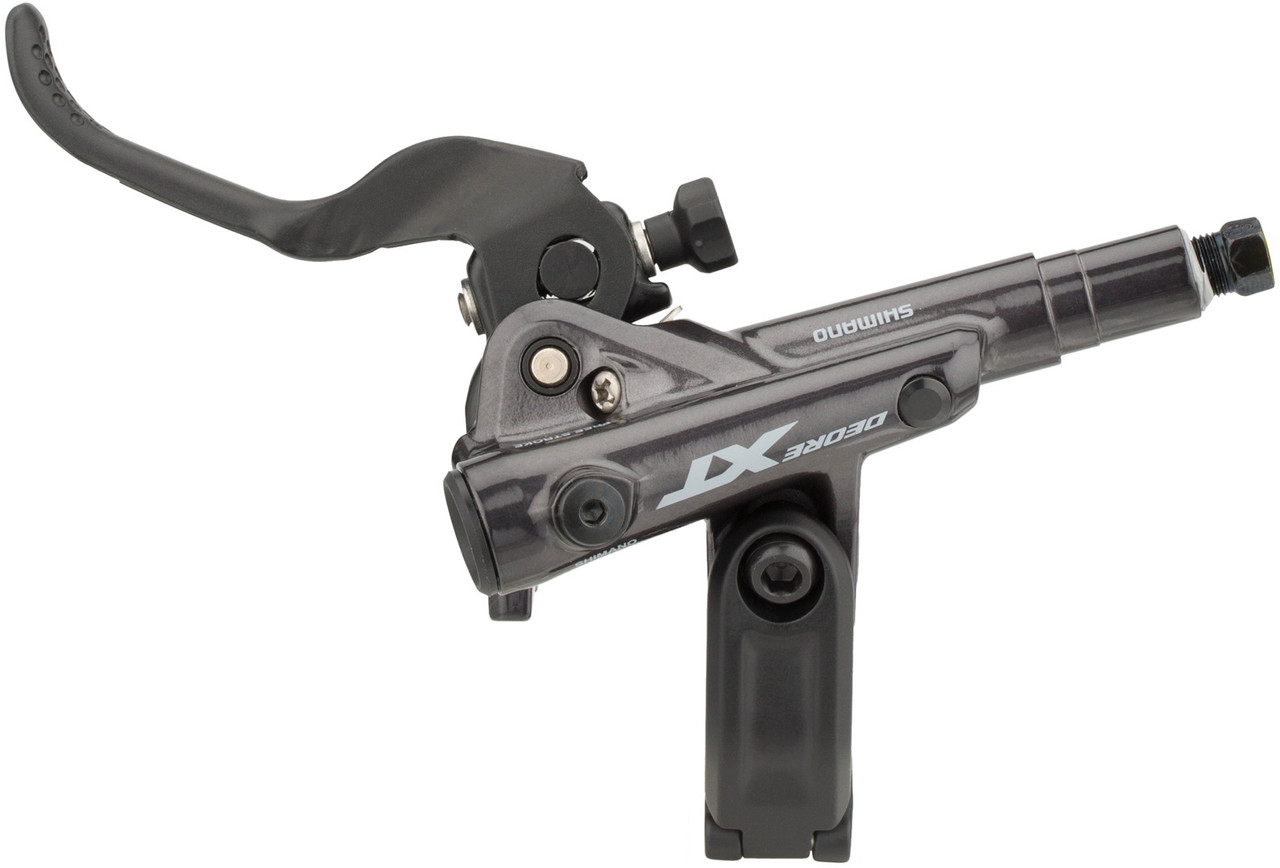

Brake Lever:
- optimised lever axis position with additional contact point and revised ergonomics
- flexible, action-optimised cockpit layout thanks to I-Spec EV
- rotation adjustment angle for compatible shift lever: 20°
- 10% stiffer than M8000 even in heat
- faster braking with less empty pull
- funnel venting with M5 funnel
- anodised lever, painted body
- stainless steel clamp bolts
Technology:
Servo WaveShimano Servo Wave technology optimises the travel of your brake levers. During the braking process, the brake pads are guided quickly to the brake rotor with very short lever travel. The greater part of the lever travel is reserved for the actual braking force. In this way, you can apply your braking power in a more targeted manner and use it more effectively.
I-Spec EV
I-Spec EV describes a variant of the connection between brake lever and shift lever on Shimano MTB derailleurs. This type of mounting allows the shifter to be adjusted both horizontally and vertically in relation to the brake lever, and ensures a tidy cockpit by reducing the number of clamps required. Compared to I-Spec and I-Spec II, I-Spec EV offers a much wider adjustment range. 14 mm adjustment range the longitudinal direction and up to 60° rotation allow an optimal ergonomic adjustment to your riding style, your sitting position and your anatomy.
One-Way Bleeding
One Way Bleeding is a technique used on Shimano calipers that facilitates brake bleeding. The hose routing has been optimised so that no air bubbles remain in the brake calliper. In combination with the funnel, the brake can be bled cleanly and easily.
J-Kit
J-Kit is a simple line connection system for hydraulic brakes from Shimano, so that you can install your brakes quickly and easily. The brake hose does not come connected to the brake to facilitate routing of the hose in the frame. The brake hose is already filled with oil in the J-Kit and sealed with a thin membrane. There is a small pin in the J-Kit brake lever that pierces this diaphragm during assembly to allow oil to flow.
Manufacturer Number:
I-M8120JLFXNA100 + I-M8120JRRXNA170Contents:
- 2 x Shimano XT BR-M8120 + BL-M8100 disc brakes, front & rear
- 1 x Shimano SM-BH90-SBM brake hose, 1000 mm (front)
- 1 x Shimano SM-BH90-SBM brake hose, 1700 mm (rear)
- 2 x pairs Shimano brake pads
- 2 x inserts
- 4 x calliper bolts
- 2 x olives (assembled)
- ready for installation, filled, bleeding is recommended after installation
