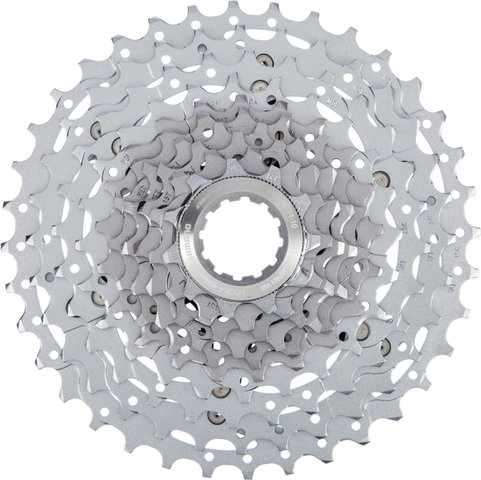

Shimano XT CS-M771-10 10-Speed Cassette

Shimano XT 10-speed CS-M771-10 cassette - with 3+3 sprocket construction

With the Shimano XT CS-M771-10 cassette, the six large sprockets are mounted on two spiders so that a large contact surface and a low weight can be achieved. Hyperglide technology (HG) ensures fast, smooth and silent gear changes, which are further supported by the Dyna-Sys system. Shimano's Dyna-Sys is not just about 10-speed gearing, but about optimal power transfer and traction.

Specifications:

Application:

Cross Country, All Mountain, Gravel, City & Touring

Gearing:

10-speed

Gradation:

11-32, 11-34, 11-36

Sprocket Material:

steel

Freehub Compatibility:

Shimano MTB

Note:

compatible with Shimano Road 11-/12-speed using a 1.85 mm spacer

Technical Information:

Series:

Deore XT M770

Spider:

2 (aluminium)

Recommended Chain:

HG-X 10-speed (e.g. CN-HG95)

Compatibility:

Shifter:

SL-M7000-10, SL-M6000, SL-M4100, SL-M820, SL-M640, SL-M610, SL-T8000, SL-T6000, SL-T780, SL-T670, SL-T610, SL-R780, SL-4600, SL-R460, SL-4700

Shift/Brake Lever:

ST-6700, ST-5700, ST-4600, ST-R460, ST-4700, ST-4720, ST-4725, ST-RS405, ST-RX400

Rear Derailleur:

RD-M7000-10, RD-T8000, RD-M6000, RD-T6000, RD-M820, RD-M640, RD-RX400

• 11-32 only: RD-5701, RD-4601
• 11-32 / 11-34 only: RD-T780, RD-T670-A, RD-T610, RD-R350-10, RD-4700-GS

Chain:

CN-M981, CN-M980, CN-HG95, CN-HG94, CN-HG75, CN-HG74, CN-HG54, CN-7901, CN-6701, CN-5701, CN-4601, CN-7801, CN-6600, CN-5600

Features:

• optimised HG tooth profile for HG-X chain and Shadow rear derailleur: precise positioning, clean, consistent shifting
• 6 sprockets on spider (3+3 construction): precise alignment, absolute stiffness, optimised for dynamic pedalling
• lockring made of aluminium (anodised)
• chrome finish (blasted)

Technology:

HG cassette
Shimano Hyperglide cassettes (HG cassettes) have strategically-positioned ramps and special tooth profiles so that the chain can be completely guided directly onto the next sprocket. This prevents the chain from just touching the tips of the teeth before it actually touches down. This optimises the chain guide and enables fast, highly efficient shifting.

Dyna-Sys
Dyna-Sys is the name of the 10-speed shifting system for MTBs from Shimano. It works with closer gear ratios that enable smooth and efficient shifting. Optimised gear combinations maximise propulsion and extend the life of the cassette, chain and chainring.

Models:

11-32:

Gradation:

11-12-14-16-18-20-22-25-28-32 t

Manufacturer Number:

I-CSM77110132

11-34:

Gradation:

11-13-15-17-19-21-23-26-30-34 t

Manufacturer Number:

I-CSM77110134

11-36:

Gradation:

11-13-15-17-19-21-24-28-32-36 t

Manufacturer Number:

I-CSM77110136

Contents:

• 1 x Shimano XT CS-M771-10 cassette
• 1 x Shimano aluminium lockring
