Shimano XT CS-M771-10 Cassette + CN-HG95 10-speed Chain Wear & Tear Set

The Shimano XT CS-M771-10 + CN-HG95 Wear & Tear Set - Hyperglide and SIL-TEC

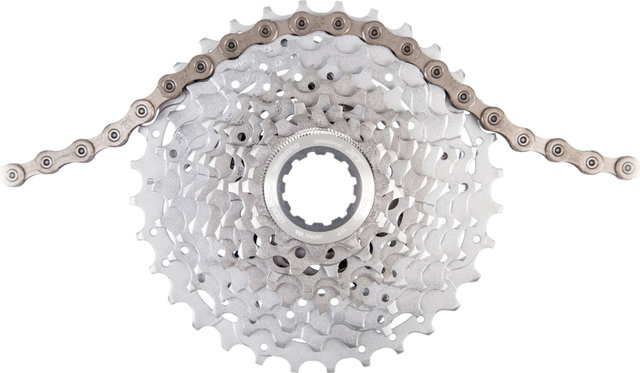

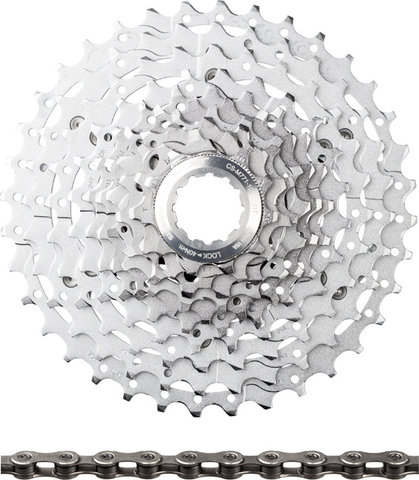

This Shimano XT wear set consists of CS-M771 10-speed cassette and CN-HG95 10-speed chain. Benefit from the combined advantages of Hyperglide technology and SIL-TEC coating.

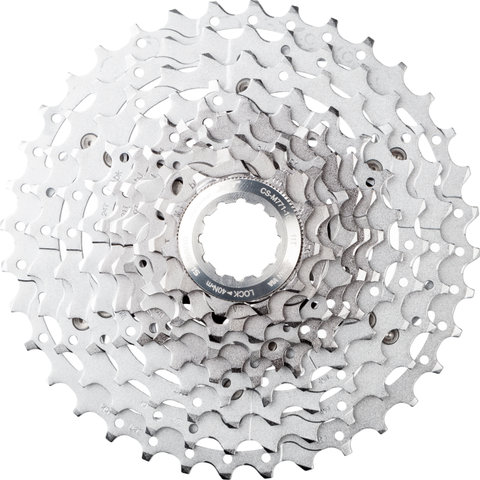

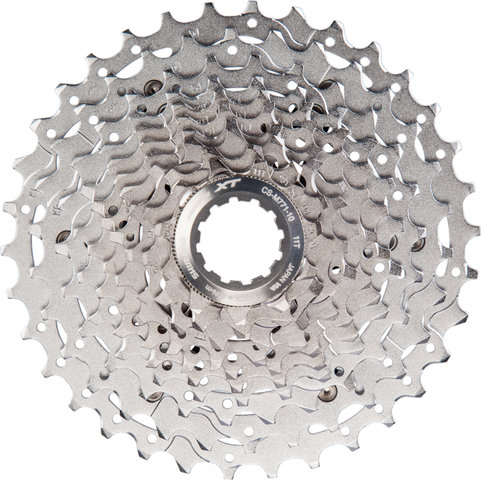

With the Shimano XT CS-M771-10 cassette, the six large sprockets are mounted on two spiders so that a large contact surface and a low weight can be achieved. Hyperglide technology (HG) ensures fast, smooth and silent gear changes, which are further supported by the Dyna-Sys system. Shimano's Dyna-Sys is not just about 10-speed gearing, but about optimal power transfer and traction.

The Shimano CN-HG95 is a 10-speed chain with directional binding and double SIL-TEC surface treatment: on the outer plate and inner plate. This ensures quiet, low-maintenance operation. This Dyna-Sys chain type HG-X is compatible with all 2x10 and 3x10 MTB and touring drivetrains.

Specifications:

Application:

Cross Country, All Mountain, Gravel, City & Touring

Gearing:

10-speed

Freehub Compatibility:

Shimano MTB

Note:

compatible with Shimano Road 11-/12-speed using a 1.85 mm spacer

Technical Information - Cassette:

Series:

Deore XT M770

Sprocket Material:

steel

Spider:

2 (aluminium)

Technical Information - Chain:

Number of Links:

116

Closure Type:

chain pin w/ double ring

Pin Type:

chromium-plated, solid

Directional:

yes

Material:

steel

Compatibility:

MTB:

3x10-speed, 2x10-speed, 1x10-speed

Trekking:

3x10-speed

Road 2x10-speed:

• Shifters: ST-6700, ST-5700, ST-4600, ST-R460, SL-R780, SL-4600, SL-R460, ST-4700, ST-RS405, SL-4700, ST-4720, ST-4725, ST-RX400
• Front Derailleurs: FD-4600, FD-R460, FD-4700, FD-RX400
• Crank: FC-4700, FC-R460, FC-RS400, FC-RX600-10
• Rear Derailleurs: RD-R350-10, RD-4700-GS (11-32, 11-34), RD-RX400 (11-32, 11-34, 11-36)

Road 3x10-speed:

• Shifters: ST-4703, SL-4703
• Front Derailleur: FD-4703
• Crank: FC-4703
• Rear Derailleur: RD-4700-GS (11-32)

Features:

Cassette:

• optimised HG tooth profile for HG-X chain and Shadow rear derailleur: precise positioning, clean, consistent shifting
• 6 sprockets on spider (3+3 construction): precise alignment, absolute stiffness, optimised for dynamic pedalling
• aluminium lockring
• chrome finish (blasted)

Chain:

• super narrow HG-X 10-speed chain for 2x10, 3x10
• for all Shimano MTB 10-speed drivetrains
• for all Shimano City & Touring 10-speed drivetrains
• more efficient, quieter, low maintenance with surface SIL-TEC coating (outer and inner plates)
• improved wear resistance due to chrome plating of the pins
• directional chain: ensures a new evolution of shifting performance
• standard pin
• performance indicator: Advanced (level 2 out of 3)
• not compatible with 10-speed Road drivetrains

Models:

11-32:

Gradation:

11-12-14-16-18-20-22-25-28-32 t

Manufacturer Number:

I-CSM77110132 (cassette) + I-CNHG95116I (chain)

11-34:

Gradation:

11-13-15-17-19-21-23-26-30-34 t

Manufacturer Number:

I-CSM77110134 (cassette) + I-CNHG95116I (chain)

11-36:

Gradation:

11-13-15-17-19-21-24-28-32-36 t

Manufacturer Number:

I-CSM77110136 (cassette) + I-CNHG95116I (chain)

Contents:

• 1 x Shimano XT CN-HG95 10-speed chain
• 1 x Shimano XT CS-M771 10-speed cassette
• 1 x Shimano aluminium lockring
• 1 x chain pin
