Shimano XT Di2 1x11-speed Upgrade Kit

The XT Di2 1x11-speed upgrade kit by Shimano - easy to upgrade

Thanks to the Shimano XT Di2 1x11 upgrade kit you can easily switch from 10-speed to 1x11-speed and equip your bike with a modern electronic drivetrain system. The kit contains an 11-speed cassette (11-42 or 11-46 T), a Quick-Link chain, a Di2 rear derailleur and a Di2 shifter for the right as well as a battery with Bluetooth function, charger and junction box. An optional information display is also included. This setup is just right for you if you are an ambitious rider and maybe even take part in occasional races.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

Series:

Deore XT Di2 M8050

Application:

Cross Country, All Mountain

Shifters & Derailleurs:

11-speed (electronic)

Cable Routing:

internal

Batter Mount:

internal

Interfaces:

ANT private, Bluetooth LE (wireless)

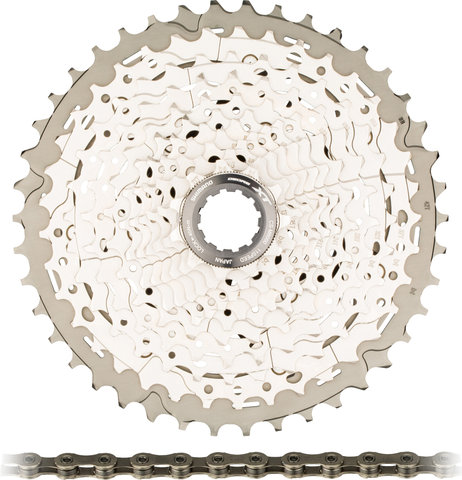

Technical Information - Cassette:

Type:

Deore XT CS-M8000 (HG)

Gearing:

11-speed

Gradation:

11-42 T (11-13-15-17-19-21-24-28-32-37-42 T), 11-46 T (11-13-15-17-19-21-24-28-32-37-46 T)

Sprocket Material:

steel, aluminium (sprocket 11 on 11-42 t, sprocket 10+11 on 11-46 t)

Freehub Compatibility:

Shimano MTB

Note:

compatible with Shimano Road 11-speed using a 1.85 mm spacer

Spider:

2 (aluminium)

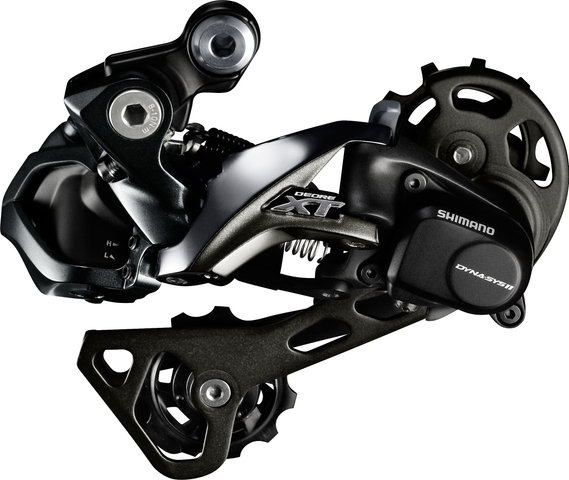

Technical Information - Rear Derailleur:

Type:

Deore XT Di2 RD-M8050 short/mid (GS)

Mount:

standard (Direct Mount compatible)

Capacity:

35-tooth

Largest Sprocket Teeth (max.):

42 with 2x11-speed, 46 with 1x11-speed

Largest Sprocket Teeth (min.):

40-tooth

Smallest Sprocket Teeth (max.):

11-tooth

Smallest Sprocket Teeth (min.):

11-tooth

Chainring Difference (max.):

10-tooth

Compatibility:

Shimano MTB 11-speed

Compatibility - Chains:

HG-X11

Derailleur Pulleys:

11-tooth

Outer Cage Material:

Aluminium

Inner Cage Material:

Aluminium

Other Materials:

aluminium, stainless steel, carbon (CFRP), steel

Technical Information - Chain:

Type:

Ultegra / XT CN-HG701-11 (HG-X11)

Number of Links:

116

Closure Type:

master link (Quick-Link)

Pin Type:

chromium-plated, solid

Directional:

yes

Material:

steel

Technical Information - Shifter:

Type:

Deore XT Di2 SW-M8050 (Firebolt)

Mount:

clamp (closed)

Body Material:

Composite

Lever Material:

Composite

Adjustment Options:

position adjust

Features:

2 shifters, 1 E-Tube port, multiple input right: hole, multiple input left: compatible with RD Multishift, Suspension switch: left rear shock control from FOX iRD components possible

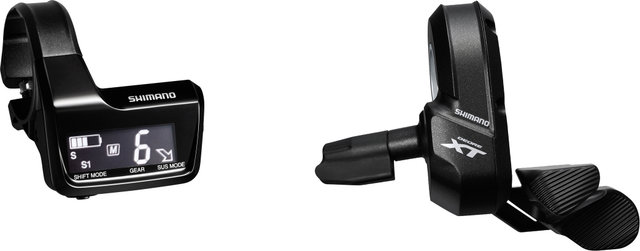

Technical Information - Display:

only Display Version

Type:

Di2 SC-MT800

Mount:

Handlebar (clamp 31.8 mm or 35 mm)

Rear Gear Indicator:

11

Front Gear Indicator:

1/2/3

Display Functions:

gear indication, shifter mode (manual, Synchro), suspension mode (FOX iRD), drivetrain adjust mode, battery life

Adjustment Functions:

gearing

System Functions:

drivetrain adjust indicator, system diagnostics, charging port for built-in battery, Synchro Shift mode change

Number of E-Tube Ports:

3

Additional Components Needed:

• To use the electronic drivetrain you have to find out the necessary number of EW-SD50 power cables needed and their correct length. Please refer to the Shimano manual or contact our customer service team.
• Also recommended for internal cable routing are the SM-GM01/02 rubber grommets.

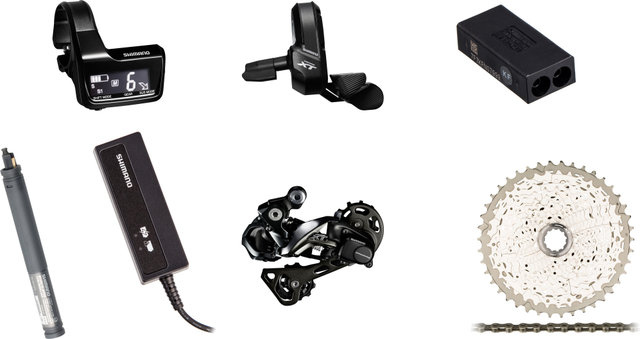

Contents:

The Shimano XT Di2 1x11 electronic kit includes:

• 1 x Shimano XT CS-M8000 cassette
• 1 x Shimano XT Di2 RD-M8050 rear derailleur
• 1 x Shimano Ultegra / XT CN-HG701 chain
• 1 x Shimano SW-M8050 XT Di2 shifter (right)

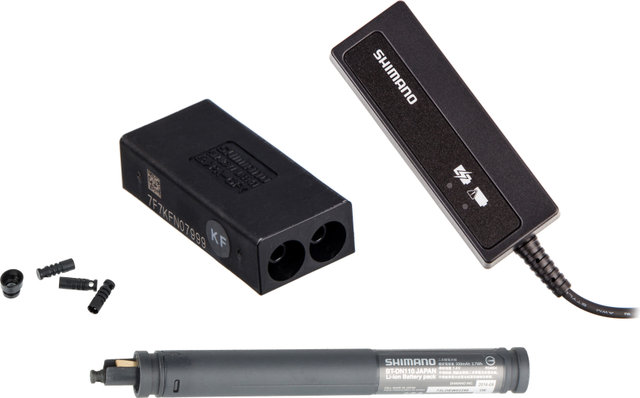

• 1 x Shimano Di2 battery (BT-DN110)
• 1 x Shimano Di2 battery charger (SM-BCR2)
• 1 x Shimano SM-JC41 internal junction box
• 1 x Shimano 3 port junction box (SM-EW90-A, display version only)
• 1 x Shimano wireless unit (EW-WU101, display version only)
• 1 x Shimano Di2 SC-MT800 system information display (display version only)
• 1 x Shimano aluminium cassette lockring
• 1 x Shimano SM-CN900-11 Quick-Link master link
• 1 x Shimano TL-EW02 plug tool
• 1 x Shimano USB Y-7FJ00020 charging cable
• 1 x mounting material for EW-WU101 (version without display only)
• 2 x handlebar clamp adapters (display version only)
