Shimano XT FC-M780 / FC-T780 / FC-T781 10-speed Chainring

The Shimano XT 10-speed Chainring for the FC-M780 crank

This Shimano 10-speed XT chainring is compatible with the FC-M780 crank, but also with the FC-T780 or FC-T781 touring crank, depending on the version. With its 104 mm or 64 mm bolt circle diameter, it can be used for various 3-speed gradations. The SG-X tooth profile ensures smooth and quiet shifting in the Dyna-Sys 10-speed drivetrain. The chainrings are designed to work optimally with the other front drivetrain components (HyperDrive).

Specifications:

Application:

All Mountain, City & Touring

Mount:

104/64 mm bolt circle diameter, 4-arm

Teeth:

24 t, 32 t, 36 t, 42 t, 44 t, 48 t

Gearing:

3x10-speed

Technical Information:

Combinations:

24-32-42 T, 24-32-44 T, 26-36-48 T

Material:

aluminium (24 t + 26 t, 42 t to 48 t), steel-carbon composite (32 t)

Features:

• large chainring anodised, medium and small chainring plated

Note:

The FC-T780 with chain guard requires a special chainring.

Models:

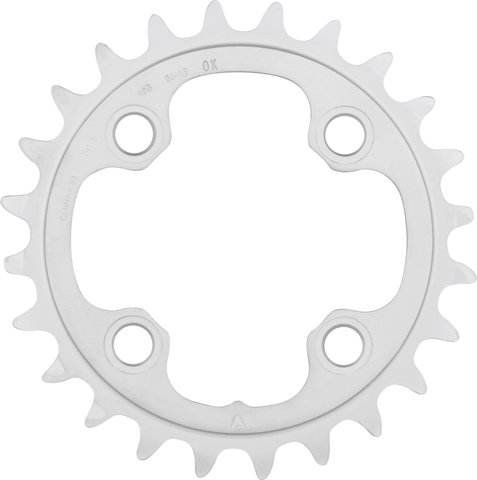

24 tooth:

Type:

AE

Compatibility:

XT FC-M780, FC-T781, also suited for FC-T551, FC-M770-10, FC-M660-10

Bolt Circle Diameter:

64 mm

Manufacturer Number:

Y-1MM24000

32 tooth:

Type:

AE

Compatibility:

XT FC-M780, FC-T781, FC-M770-10, also suited for FC-M980, FC-T551, FC-M660-10

Bolt Circle Diameter:

104 mm

Note:

incl. chainring bolts (= B-Type)

Manufacturer Number:

Y-1MM98130

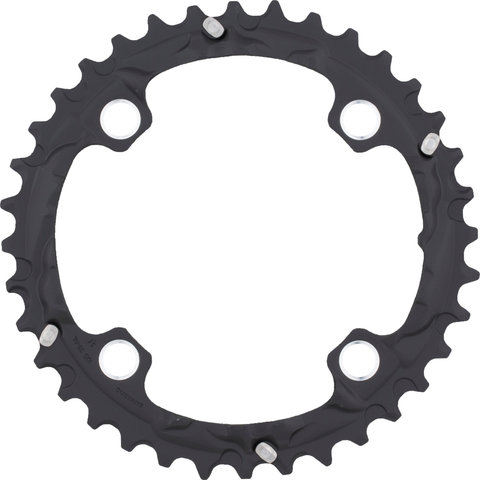

36 tooth:

Type:

AL

Compatibility:

XT FC-T780, FC-T781, FC-T8000 / SLX FC-M670 / LX FC-T671, also suited for FC-T551

Bolt Circle Diameter:

104 mm

Manufacturer Number:

Y-1MP98020

42 tooth:

Type:

AE

Compatibility:

XT FC-M780, also suited for FC-T551, FC-M770-10, FC-M660-10

Bolt Circle Diameter:

104 mm

Manufacturer Number:

Y-1MM98110

44 tooth:

Type:

AE

Compatibility:

XT FC-T781, also fits FC-T551

Bolt Circle Diameter:

104 mm

Manufacturer Number:

Y-1MP98030

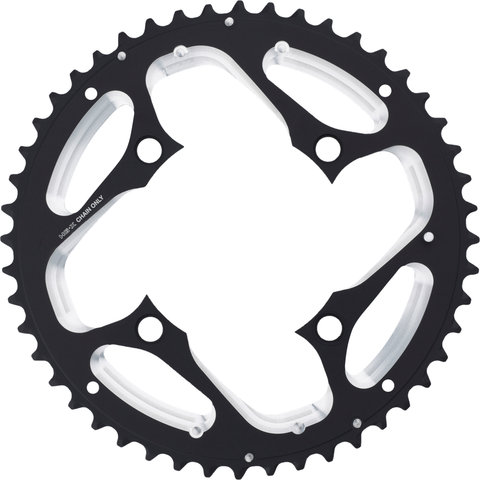

48 tooth (FC-T780):

Type:

AL

Compatibility:

XT FC-T780, also suited for FC-T781, FC-T551

Bolt Circle Diameter:

104 mm

Manufacturer Number:

Y-1MN98010

48 tooth (FC-T781):

Type:

AL

Compatibility:

XT FC-T781, also suited for FC-T780, FC-T551

Bolt Circle Diameter:

104 mm

Manufacturer Number:

Y-1MP98050

Note:

The 26 tooth chainring for FC-T780 and FC-T781 (Y-1J226000) is identical to the XT chainring FC-M771-K.

Note to Type Designation:

The type designation (one or two characters) helps identify the compatibility of various chainrings with other chainrings. Because the larger chainrings have specially-formed teeth and upward shifting assistance, only particular smaller chainrings will match to ensure proper shifting performance. An XY chainring should only be combined with another XY chainring. This applies to all other types as well.

Contents:

• 1 x Shimano XT FC-M780 chainring
• 4 x chainring bolts (32 tooth only)
