Shimano XT FC-M782 10-speed Chainring

The Shimano XT 10-speed Chainring for the FC-M782 crank

This Shimano XT 10-speed chainring is compatible with the FC-M782 crank and has a bolt circle diameter of 96 or 64 mm (symmetrical 4-arm design). This allows the 22-30-40 tooth combination to be formed. The middle chainring is made of a steel-carbon composite, the other two are made of aluminium.

Specifications:

Application:

Cross Country, All Mountain

Mount:

96/64 mm bolt circle diameter, 4-arm symmetrical

Teeth:

22 t, 30 t, 40 t

Gearing:

3x10-speed

Technical Information:

Combinations:

22-30-40 T

Material:

aluminium (22 t + 40 t), steel-carbon composite (30 t)

Compatibility:

• XT FC-M782
• 22/30 Z also fits SLX FC-M672

Features:

• large chainring anodised, medium and small chainring plated

Models:

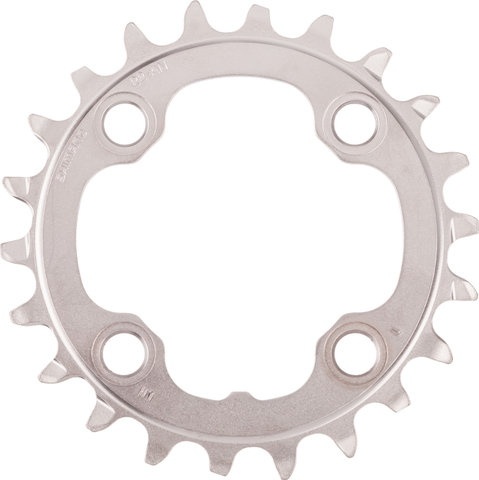

22 tooth:

Type:

AN

Bolt Circle Diameter:

64 mm

Manufacturer Number:

Y-1NV22000

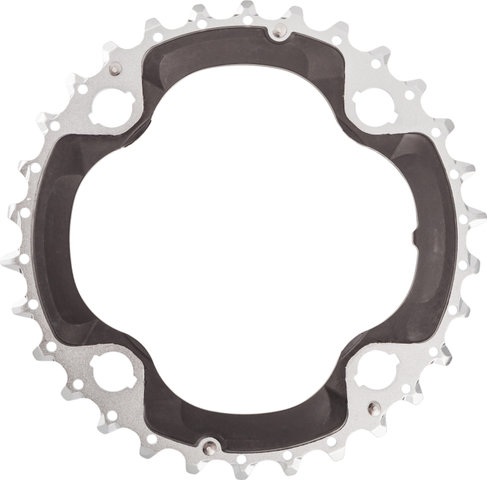

30 tooth:

Type:

AN

Bolt Circle Diameter:

96 mm

Manufacturer Number:

Y-1NV98010

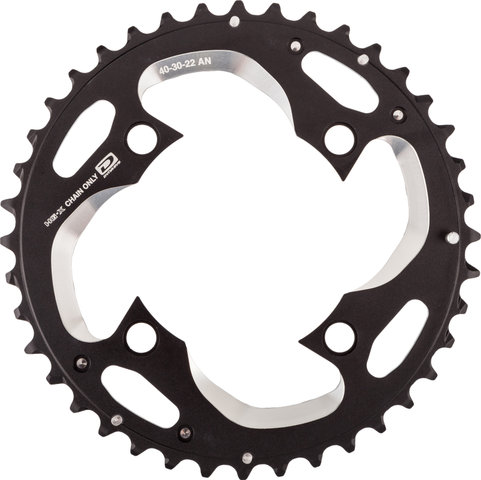

40 tooth:

Type:

AN

Bolt Circle Diameter:

96 mm

Manufacturer Number:

Y-1NV98020

Note to Type Designation:

The type designation (one or two characters) helps identify the compatibility of various chainrings with other chainrings. Because the larger chainrings have specially-formed teeth and upward shifting assistance, only particular smaller chainrings will match to ensure proper shifting performance. An XY chainring should only be combined with another XY chainring. This applies to all other types as well.

Contents:

• 1 x Shimano XT FC-M782 chainring
