Shimano XT FC-M785 10-speed Chainring

The Shimano XT 10-speed Chainring for the FC-M785 crank

The Shimano XT FC-M785 2x10-speed chainring impresses with fast and quiet shifting processes thanks to its SG-X design and integrates perfectly into the HyperDrive concept for the front drivetrain. It has a bolt circle diameter of 104 or 64 mm and is made of aluminium. Shimano Dyna-Sys technology means not only a 10th gear, but optimal functional efficiency.

Specifications:

Application:

Cross Country

Mount:

104/64 mm bolt circle diameter, 4-arm

Teeth:

24 t, 26 t, 28 t, 38 t, 40 t

Gearing:

2x10-speed

Technical Information:

Combinations:

24-38 t, 26-38 t, 28-40 t

Material:

aluminium

Compatibility:

• XT FC-M785

Features:

• large chainring anodised, small chainring plated

Models:

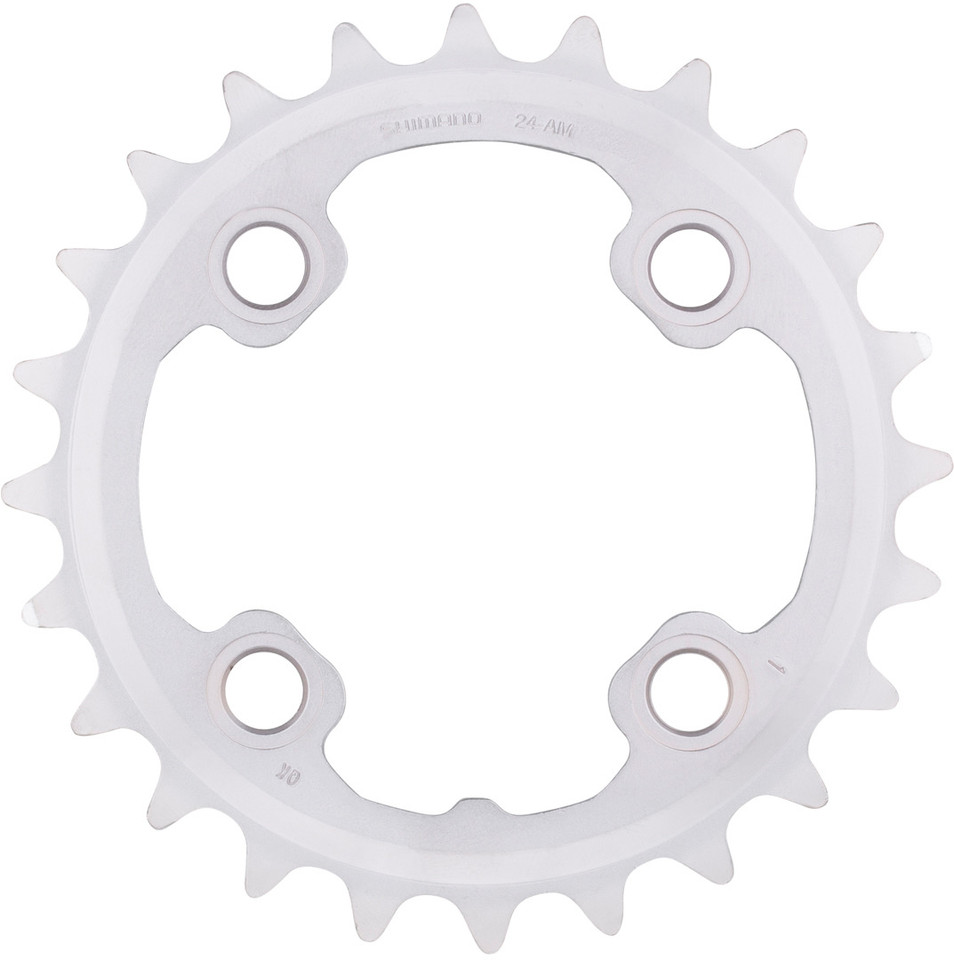

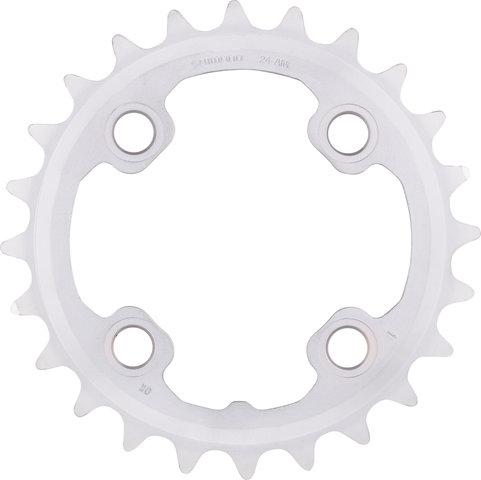

24 tooth:

Type:

AM

Bolt Circle Diameter:

64 mm

Manufacturer Number:

Y-1ML24000

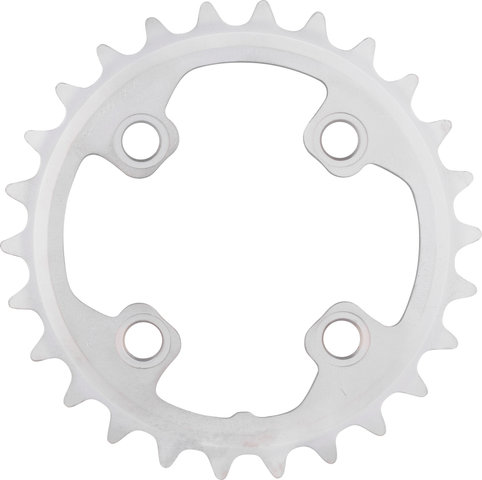

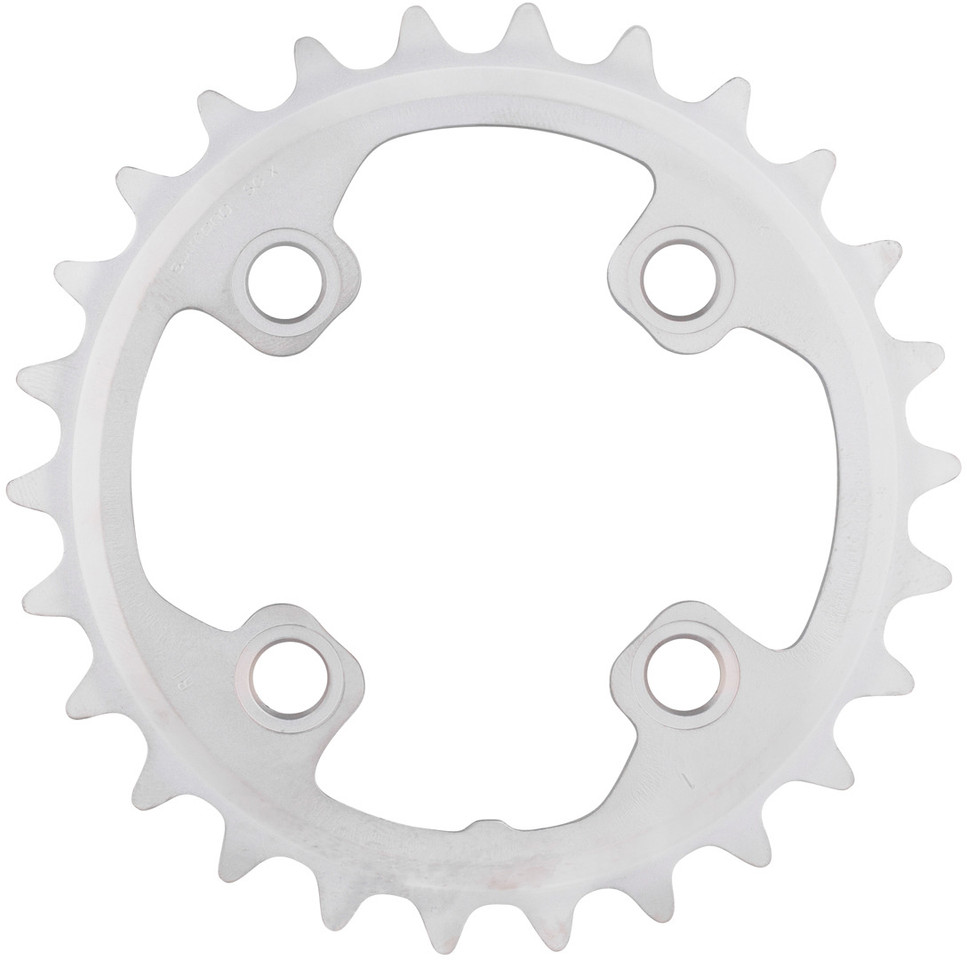

26 tooth:

Type:

AK

Bolt Circle Diameter:

64 mm

Manufacturer Number:

Y-1ML26000

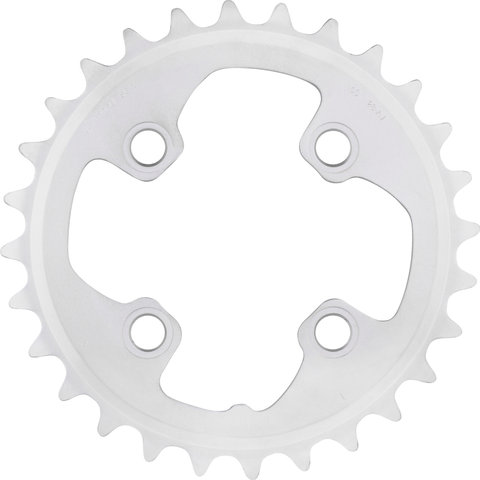

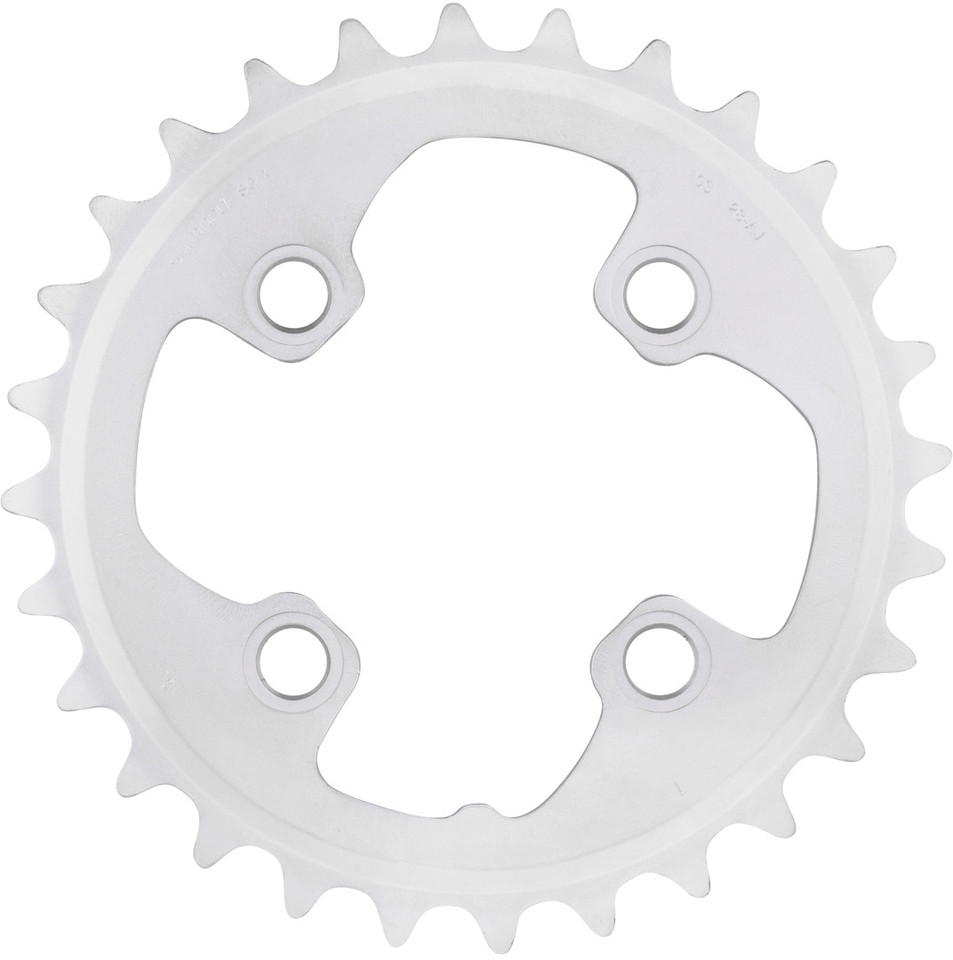

28 tooth:

Type:

AJ

Bolt Circle Diameter:

64 mm

Manufacturer Number:

Y-1ML28000

38 tooth (x24):

Type:

AM

Bolt Circle Diameter:

104 mm

Manufacturer Number:

Y-1ML98040

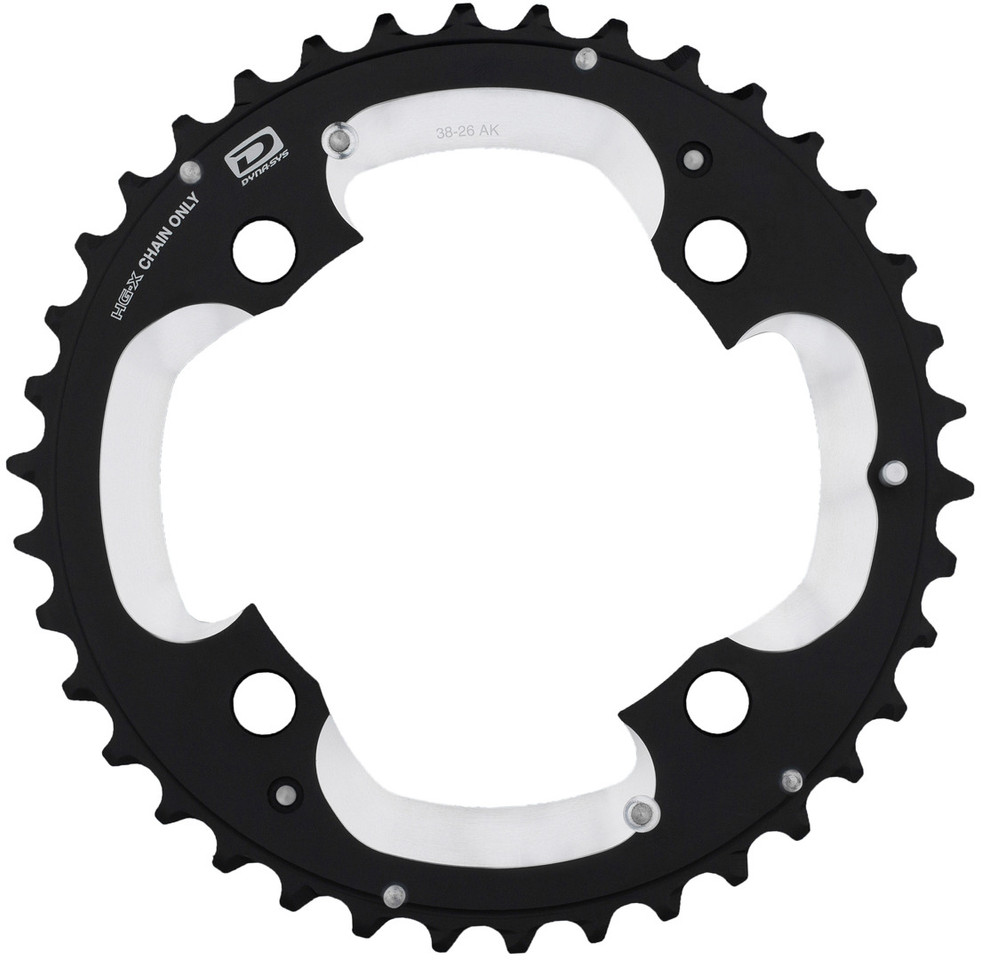

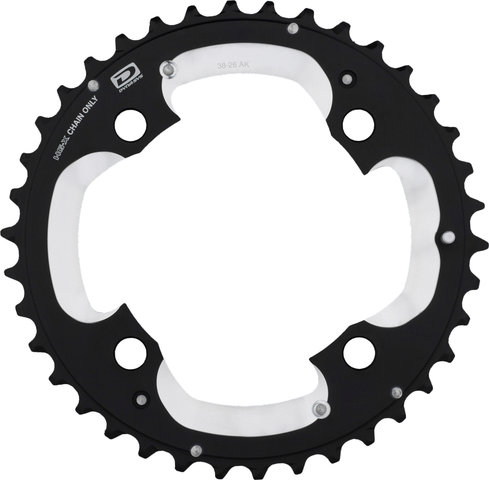

38 tooth:

Type:

AK

Bolt Circle Diameter:

104 mm

Manufacturer Number:

Y-1ML98020

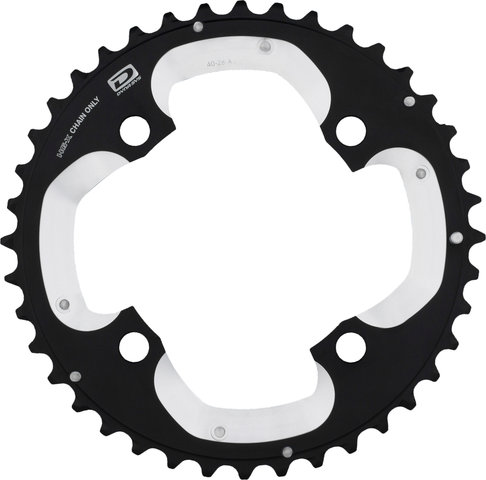

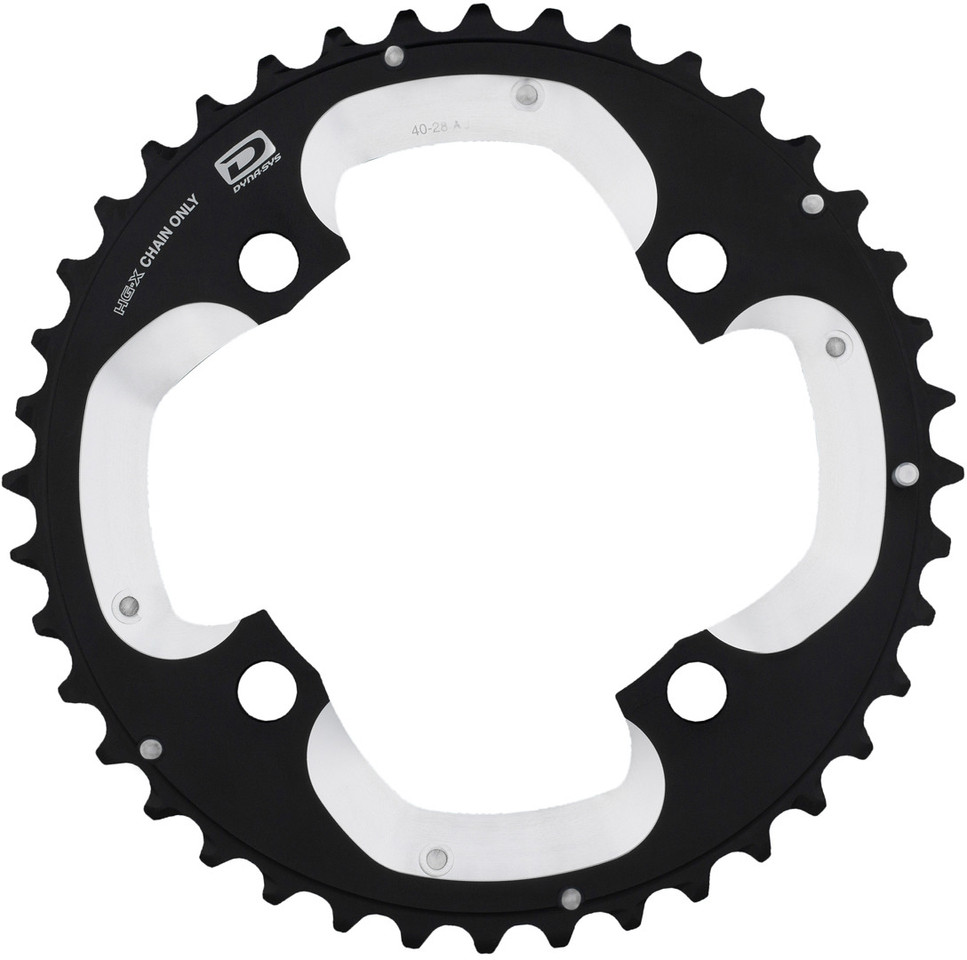

40 tooth:

Type:

AJ

Bolt Circle Diameter:

104 mm

Manufacturer Number:

Y-1ML98030

Note to Type Designation:

The type designation (one or two characters) helps identify the compatibility of various chainrings with other chainrings. Because the larger chainrings have specially-formed teeth and upward shifting assistance, only particular smaller chainrings will match to ensure proper shifting performance. An XY chainring should only be combined with another XY chainring. This applies to all other types as well.

Contents:

• 1 x Shimano XT FC-M785 chainring
