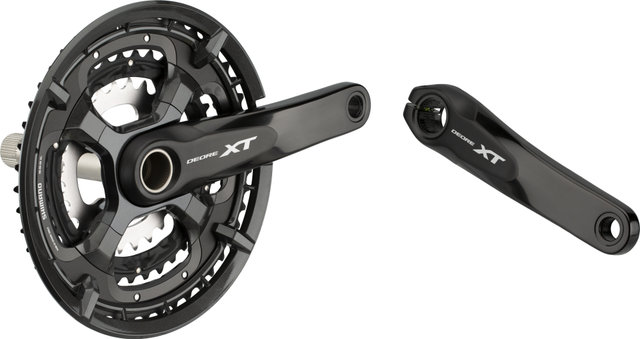

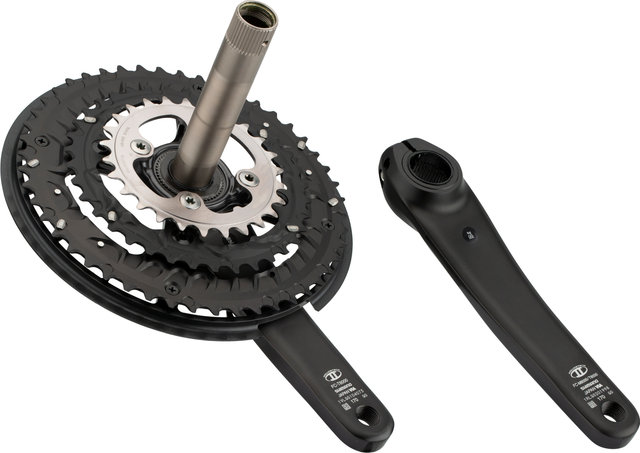

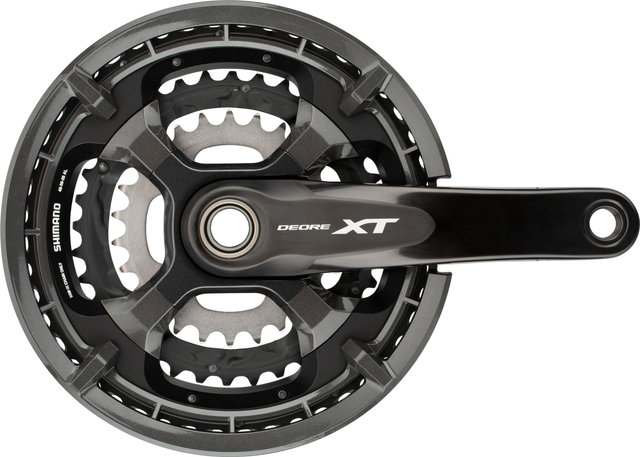

Shimano XT FC-T8000 Hollowtech II Crankset w/ Chain Guard

Shimano XT FC-T8000 Crankset w/ chain guard - An efficient drivetrain for city & touring

The Shimano XT FC-T8000 crankset is aimed at all city & touring riders who value high-quality components. Thanks to its Hollowtech II construction, the FC-T8000 offers an optimal strength-to-weight ratio and impresses with its reliable high drive efficiency. The crank is designed for 10-speed shifting systems and comes with three chainrings as well as a chain guard, which has been integrated in an attractive way and protects your trousers from contact with the chain. Crank arms and chainrings are made of light aluminium.

Specifications:

Application:

City & Touring

Compatibility:

Shimano 3x10-speed

Chainring Mount:

104/64 mm bolt circle diameter, 4-arm

Technical Information:

Series:

Deore XT T8000

Crank Arm Material:

aluminium

Chainring Material:

aluminium

Axle Material:

steel

Gradation:

26-36-48

Crank Arm Length:

170.0 mm, 175.0 mm

Chainline:

50 mm

Q-Factor:

176 mm

Axle Diameter:

24 mm

Compatible BSA Shell Width:

68 mm / 73 mm

Recommended Bottom Bracket:

BB-MT801 or BB-MT800-PA Press Fit Hollowtech II (not included)

Recommended Chain:

HG-X 10-speed (e.g. CN-HG95)

Compatibility:

Touring 3x10-speed:

Shifter:

SL-T8000, SL-T780, SL-M780, SL-T670, SL-M670, SL-T610, SL-M610, SL-M591, SL-T6000

Front Derailleur:

FD-T8000, FD-T780, FD-T781, FD-T670, FD-T671, FD-T610, FD-T611, FD-T6000

Bottom Bracket:

SM-BB93, SM-BB80, BB-MT801, BB-MT800, SM-BB52, BB-MT501, BB-MT500, SM-BB94-41A, BB-MT800-PA, BB-MT500-PA

Chain:

CN-M981, CN-M980, CN-HG95, CN-HG94, CN-HG75, CN-HG74, CN-HG54

Chain Case:

not compatible

Features:

• reliable shifting performance
• sustainable drivetrain system with revised design
• higher drivetrain efficiency
• smoother cadence
• integrated chain guard design
• optimised Q-factor
• crank arms and large chainring anodised, middle/small chainring plated
• aluminium and stainless steel chainring bolts

Technology:

Hollowtech II
Shimano Hollowtech II is a crank bottom bracket system designed to achieve an ideal ratio of stiffness, weight and rotational efficiency. It is based on an integration of the bottom bracket and the right crank arm and works with a 24 mm axle or bearing diameter, which has proven to be optimal in terms of stability. In many cases, the bearing cups are on the outside so that the load is better distributed. High-quality precision seals ensure a long service life.

Manufacturer Numbers:

170.0 mm 26-36-48:

I-FCT8000CX866C

175.0 mm 26-36-48:

I-FCT8000EX866C

Contents:

• 1 x Shimano XT FC-T8000 crankset (26-36-48 tooth)
• 1 x Shimano chain guard
• 1 x Shimano crank bolt
