Shimano XT FH-M8010 Center Lock Disc Rear Hub for 12 mm Thru-Axles

The XT rear hub FH-M8010 by Shimano - lightweight, reliable, fast

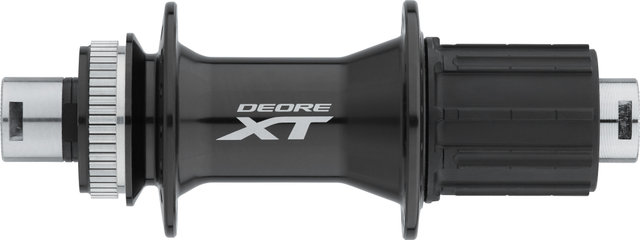

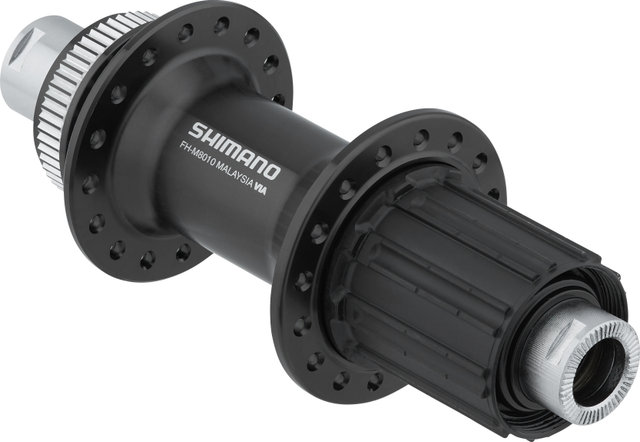

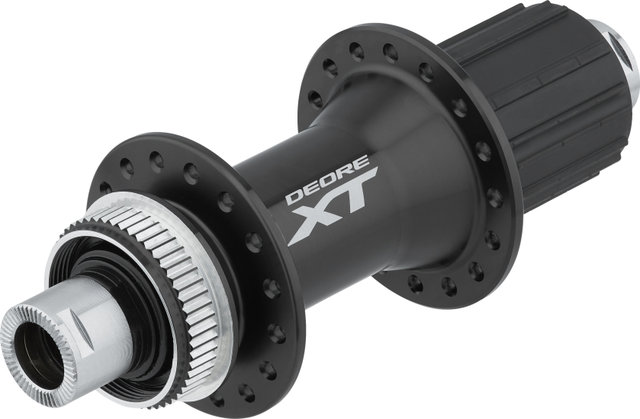

The Shimano XT FH-M8010 rear hub is an 11-speed compatible hub for bikes with 12 x 142 mm rear over locknut dimensions. It consists of a light aluminium body and an aluminium axle - only the freehub is made of steel. Sealed, greased cup & cone bearings and Quick Engagement technology guarantee reliable performance and fast traction. The Shimano E-Thru system inspires with its strength and torsional stiffness under all conditions.

Specifications:

Series:

Deore XT M8000

Application:

Cross Country, All Mountain

Brake Type:

Center Lock Disc

Freehub Body Type:

steel, Quick Engagement (>36points/360°)

Technical Information:

Body Material:

aluminium

Bearings:

cup & cone

Seals:

labyrinth + contact

Features:

• 142 mm axle length, 14 mm axle diameter
• flange diameter 52.8 mm left, 53.8 mm right
• 6.4 mm offset
• CBN precision machined bearings
• aluminium axles
• anodised hub shell
• freehub body has contact seal
• durable and suitable for all weather conditions, reliable performance and lower weight
• refined gear changes and improved power transmission
• internal grease sleeve
• quick engagement

Technology:

E-Thru
E-Thru is a tool-free thru-axle system from Shimano that optimises the stiffness-to-weight ratio and ensures easy handling via its reliable internal cam mechanism. It is characterised by a high torsion resistance and thus also supports cornering at high speed. E-Thru thru-axle hubs and thru-axles are available in the corresponding over locknut dimensions for front and rear.

Models:

32 hole:

Over Locknut Dimension:

12 x 142 mm thru-axle

Spoke Hole Count:

32 hole

Freehub:

Shimano MTB

Gearing:

8-/9-/10-/11-speed

Flange Distance (L/R):

57.4 mm (35.1 mm/22.3 mm)

Partial Bolt Circle Diameter (L/R):

44 mm/45 mm

Manufacturer Number:

E-FHM8010E

Contents:

• 1 x Shimano XT FH-M8010 rear hub

• black/32/Shimano MTB/Shimano MTB: 359 g
