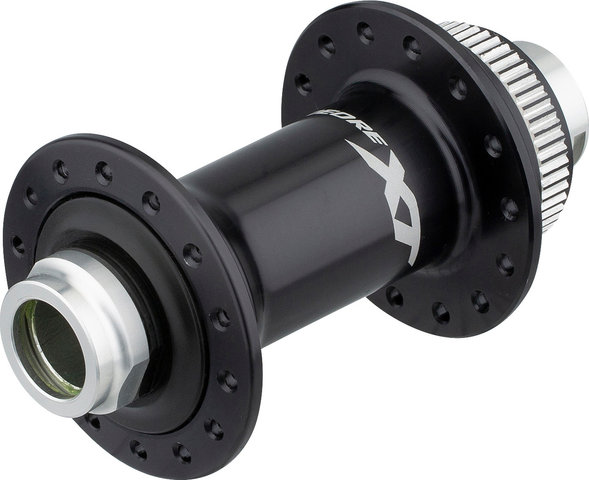

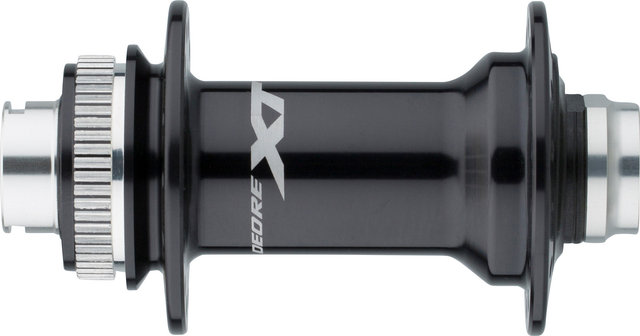

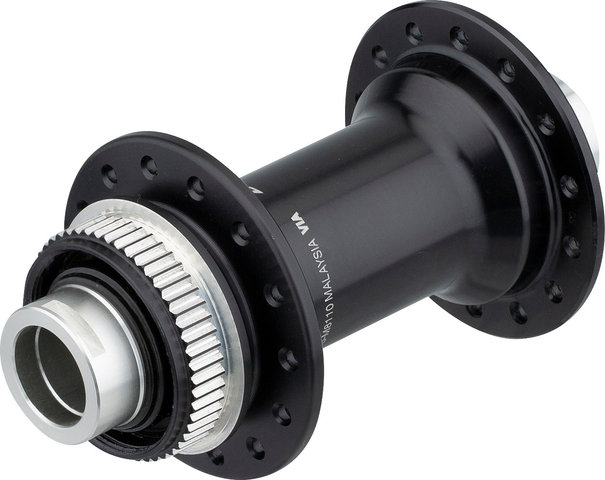

Shimano XT HB-M8110 Center Lock Disc 15 mm Thru-Axle Front Hub

Shimano XT HB-M8110 front hub - reliable performance on the trail

The Shimano XT HB-M8110 front hub has an over locknut dimension of 100 mm. It features easy rotor setup and reliable trail performance. The Shimano E-Thru technology for optimal stiffness and the combination of labyrinth and contact seals are further important features of the HB-M8110 hubs.

Specifications:

Series:

Deore XT M8100

Application:

Enduro, All Mountain, Cross Country

Brake Type:

Center Lock Disc

Technical Information:

Body Material:

aluminium

Bearings:

cup & cone

Features:

• easy setup and reliable trail performance
• brake rotor can be quickly mounted with spline mount and lockring
• tool-free 15 mm thru axle system optimises stiffness and weight
• 52.8 mm flange diameter
• 5.7 mm offset
• CBN precision machined bearings/polished
• aluminium axles
• anodised hub shell
• internal grease sleeve

Technology:

E-Thru
E-Thru is a tool-free thru-axle system from Shimano that optimises the stiffness-to-weight ratio and ensures easy handling via its reliable internal cam mechanism. It is characterised by a high torsion resistance and thus also supports cornering at high speed. E-Thru thru-axle hubs and thru-axles are available in the corresponding over locknut dimensions for front and rear.

Cup and Cone Bearings
Angular contact ball bearings of the cup & cone type are superior to sealed cartridge bearings in terms of load carrying capacity, as they distribute lateral and vertical forces better, and thus run particularly smoothly and last a long time. They are also easier to adjust, maintain and replace.

Models:

15 x 100 mm / 28 hole:

Over Locknut Dimension:

15 x 100 mm thru-axle

Spoke Hole Count:

28 hole

Flange Distance (L/R):

60.2 mm (24.4 mm/35.8 mm)

Partial Bolt Circle Diameter (L/R):

44 mm/44 mm

Manufacturer Number:

E-HBM8110CX

15 x 100 mm / 32 hole:

Over Locknut Dimension:

15 x 100 mm thru-axle

Spoke Hole Count:

32 hole

Flange Distance (L/R):

60.2 mm (24.4 mm/35.8 mm)

Partial Bolt Circle Diameter (L/R):

44 mm/44 mm

Manufacturer Number:

E-HBM8110BX

Contents:

• 1 x Shimano XT HB-M8110 front hub
