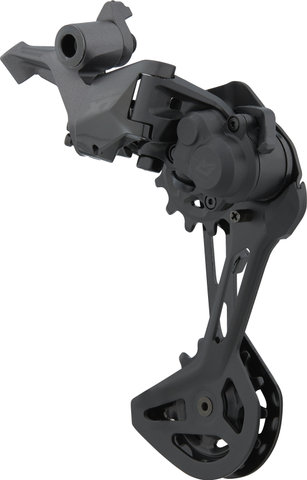

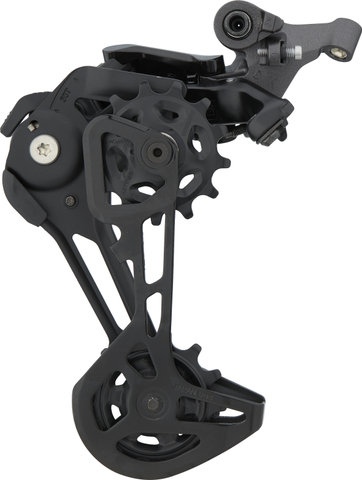

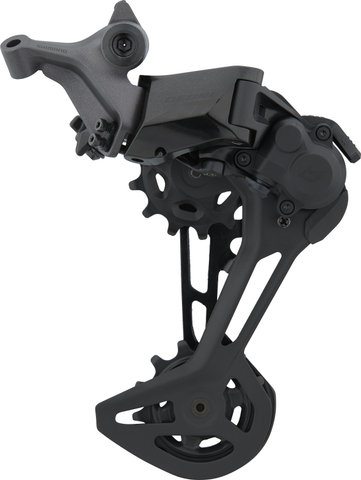

Shimano XT Linkglide RD-M8130 11-speed Shadow Plus Rear Derailleur

The Shimano RD-M8130 XT Rear Derailleur for Linkglide 11-speed Drivetrains

XT RD-M8130 is an 11-speed rear derailleur from Shimano which, in combination with other Linkglide components, ensures very smooth but also very defined gear changes. The Linkglide drivetrain has been specially developed for e-bikes and punishing applications in the touring and MTB sector. The rear derailleur features the tried-and-tested Shadow Plus design, which opens up plenty of scope for off-road riding, and not just because of its low profile. It also prevents chain slap and counteracts chain drop thanks to the built-in stabilizer. The RD-M8130 has a long cage and a total capacity of 39 teeth. You can use it to shift a Linkglide cassette with a maximum of 50 teeth. Please note that there is no compatibility with non-Linkglide shifters due to the different cable ratio.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Series:

Deore XT M8100 (Linkglide)

Application:

All Mountain, Touring

Gearing:

11-speed

Mount:

standard

Capacity:

39-tooth

Compatibility:

Shimano MTB 11-speed (Linkglide)

Compatibility - Chains:

HG-X 11-speed, CN-LG500

Technical Information:

Derailleur Pulleys:

13-tooth

Outer Cage Material:

aluminium

Inner Cage Material:

aluminium

Other Materials:

aluminium, stainless steel, steel, composite material (GFRP)

Compatibility:

Linkglide 11-speed:

Shifter:

SL-M8130-R11, SL-M8130-IR11, SL-U8000-11R, SL-U8000-11IR, SL-U6000-11R

Cassette:

CS-LG700-11, CS-LG600-11, CS-LG400-11

Chain:

CN-LG500, CN-HG601-11, CN-HG701-11, CN-HG901-11, CN-E8000-11

E-bike Drivetrain:

EP8 EP801, EP8 EP800, EP6 for MTB / Touring

Features:

• smooth, defined shifting in the Linkglide system
• low profile
• chain stabilizer (Shadow+) against chain drops, chain slaps and noise
• sealed guide and tension roller bearings
• painted cage plates
• 7 pivot bushings, fluorine-coated

Technology:

Shadow RD+
Shadow Plus rear derailleurs are just as low-profile as Shimano's Shadow rear derailleurs. In addition, a stabilizer with on/off switch is used to reduce chain slap and thus counteract chain drop. At the same time, this results in a quieter drive. Weight is also saved compared to other chain restraint devices.

Models:

long:

Cage Length:

SGS

Max. Largest Sprocket Teeth:

50-tooth

Min. Largest Sprocket Teeth:

50-tooth

Max. Smallest Sprocket Teeth:

11-tooth

Min. Smallest Sprocket Teeth:

11-tooth

Max. Chainring Difference:

0-tooth

Total Capacity:

39-tooth

Manufacturer Number:

I-RDM8130SGS

Contents:

• 1 x Shimano XT RD-M8130 Shadow+ rear derailleur
