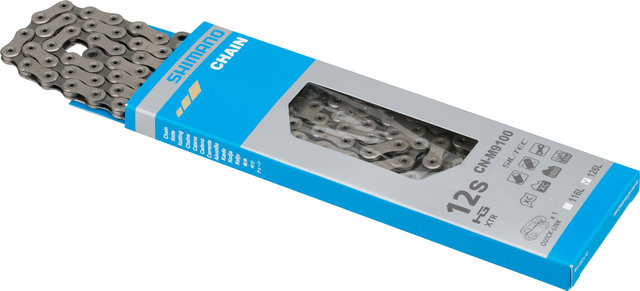

Shimano XTR / Dura-Ace / E-bike Quick-Link CN-M9100 12-speed Chain

The XTR CN-M9100 12-speed chain by Shimano - enlarged inner plates

The Shimano CN-M9100 chain for XTR and Dura-Ace 12-speed has enlarged inner plates which create a perfect connection to the Dynamic Chain Engagement+ chainring. In this way, it contributes significantly to smooth shifting performance. Vibrations are avoided, chain hold is improved and pedalling efficiency is increased (HG technology). The SIL-TEC coating of the outer plates and rollers ensures smoother, low-wear running. CN-M9100 chains come with hollow-formed pins to save weight and are directional. As they are approved for e-bikes, there is also an extra-long version with 138 links. The matching SM-CN910-12 Quick-Link master link is included.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

MTB, Road, Triathlon & Time Trial

Gearing:

12-speed

Technical Information:

Number of Links:

116, 126, 138

Closure Type:

master link (Quick-Link)

Pin Type:

chromium-plated, hollow

Directional:

yes

Recommended Groupset:

XTR M9100/9120, Dura-Ace R9200

Material:

steel

Compatibility:

• MTB 1x12-speed, 2x12-speed
• Dura-Ace, Ultegra, 105 2x12-speed
• GRX 1x12-speed, 2x12-speed
• e-bike: EP8 EP800 for MTB / Touring, STEPS E8080

Features:

• HG chain for 1x12, 2x12
• SIL-TEC coating on outer plate and roller, chrome-plated inner plate
• enlarged inner plates
• improved shift behaviour
• more even riding in rough terrain
• with master link for easy installation
• performance indicator: ultimate (3 out of 3)

Technology:

HG 12-speed for Hyperglide+
Shimano Hyperglide (HG) 12-speed chains have enlarged inner plates designed to work with Hyperglide+ cassettes and Dynamic Chain Engagement+ chainrings. This prevents vibrations when the chainring and chain come into contact, resulting in improved chain retention. In combination with an HG+ 12-speed cassette, shifting and drive efficiency are increased. This also benefits the service life of the chain. HG 12-speed chains are directional, i.e. they have an asymmetrical design and thus a predefined installation direction.

SIL-TEC
SIL-TEC is a fluorine particle-based surface coating from Shimano. It results in smoother, lower friction operation and less contamination. This makes maintenance easier, reduces wear and extends the service life of SIL-TEC components.

Manufacturer Numbers:

12 speed / 116 links:

I-CNM9100116Q

12 speed / 126 links:

I-CNM9100126Q

12 speed / 138 links:

I-CNM9100138Q

Contents:

• 1 x Shimano XTR / Dura-Ace CN-M9100 chain
• 1 x Shimano SM-CN910-12 Quick-Link master link
