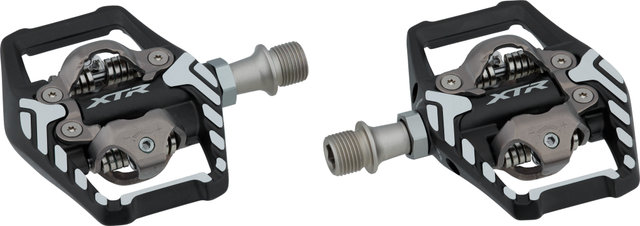

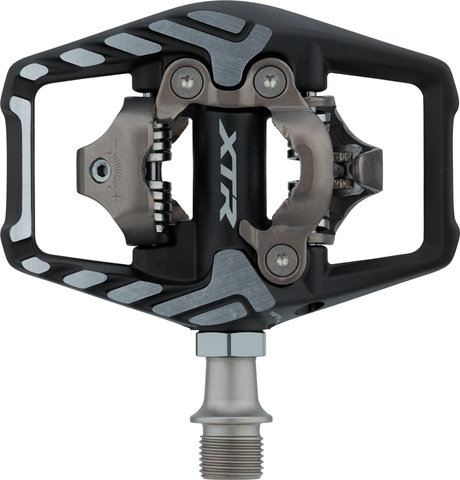

Shimano XTR Enduro PD-M9120 Clipless Pedals

Shimano XTR Enduro PD-M9120 clipless pedals - more stability, more control

The XTR PD-M9120 pedals were designed by Shimano for enduro use. Their wider and longer contact surface stabilises the shoe-pedal interface, optimises power transfer and improves bike control. In addition, an integrated cage protects the SPD binding from shocks and can serve as a guide when clipping into the pedal.

Specifications:

Application:

Enduro

Type:

clipless pedals

Pedal System:

SPD

Cleat Mount:

2-bolt

Technical Information:

Body Material:

aluminium

Axle Material:

steel (CrMo)

Bearings:

compact

Height:

15.4 mm

Recommended Cleats:

SM-SH51, SM-SH56

Pedal Centre to Crank Arm Distance:

55 mm

Features:

• Series: XTR M9100
• wider and longer contact area forms a stable interface between shoe and pedal, ensures better control of the bike through efficient power transmission
• finely tuned for efficient interaction with ME and AM shoes
• integrated cage not only protects the binding from impacts, but also facilitates access by acting as a guide
• dual-sided binding mechanism
• cartridge axle
• sealed mechanism
• tension adjust
• anodised
• optional SM-PD60 reflectors

Manufacturer Number:

I-PDM9120

Contents:

• 1 x pair Shimano XTR PD-M9120 clipless pedals

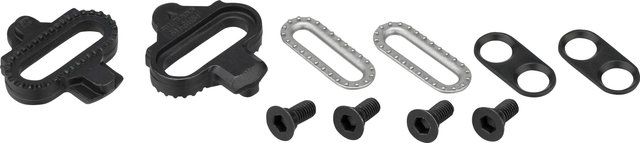

• 1 x pair Shimano SM-SH51 pedal cleats
• 2 x 1 mm cleat spacers
