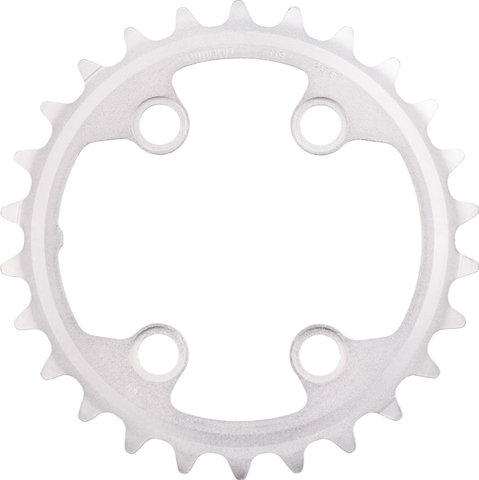

Shimano XTR FC-M9000-2 / FC-M9020-2 11-speed Chainring

The Shimano XTR 11-speed Chainring for FC-M9000-2 and FC-M9020-2 Cranks

The 11-speed chainring for Shimano XTR FC-M9000 and FC-M9020 cranks can be used for three different 2-speed combinations: 24-34, 26-36 and 28-38. Its 3D hollow structure (Hollowglide) ensures stiffness with the lowest possible weight. The small chainrings are made of aluminium, the large ones of a composite in which carbon and titanium are also used.

Specifications:

Application:

Cross Country, All Mountain, Enduro

Mount:

96/64 mm bolt circle diameter, 4-arm asymmetrical

Teeth:

24 t, 26 t, 28 t, 34 t, 36 t, 38 t

Gearing:

2x11-speed

Technical Information:

Combinations:

24-34 t, 26-36 t, 28-38 t

Material:

aluminium (24 t to 28 t), titanium/aluminium/carbon (CFRP, 34 to 38 t)

Compatibility:

• XTR FC-M9000
• XTR FC-M9020
• XTR FC-M9020-B

Features:

• hollow-formed (Hollowglide)
• large chainring anodised, small chainring plated

Models:

24 tooth:

Type:

AS

Bolt Circle Diameter:

64 mm

Manufacturer Number:

Y-1PV24000

26 tooth:

Type:

AT

Bolt Circle Diameter:

64 mm

Manufacturer Number:

Y-1PV26000

28 tooth:

Type:

AW

Bolt Circle Diameter:

64 mm

Manufacturer Number:

Y-1PV28000

34 tooth:

Type:

AS

Bolt Circle Diameter:

96 mm

Manufacturer Number:

Y-1PV98040

36 tooth:

Type:

AT

Bolt Circle Diameter:

96 mm

Manufacturer Number:

Y-1PV98050

38 tooth:

Type:

AW

Bolt Circle Diameter:

96 mm

Manufacturer Number:

Y-1PV98060

Note to Type Designation:

The type designation (one or two characters) helps identify the compatibility of various chainrings with other chainrings. Because the larger chainrings have specially-formed teeth and upward shifting assistance, only particular smaller chainrings will match to ensure proper shifting performance. An XY chainring should only be combined with another XY chainring. This applies to all other types as well.

Contents:

• 1 x Shimano XTR chainring
