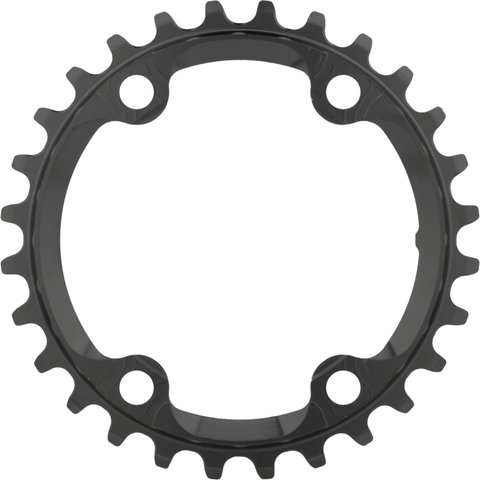

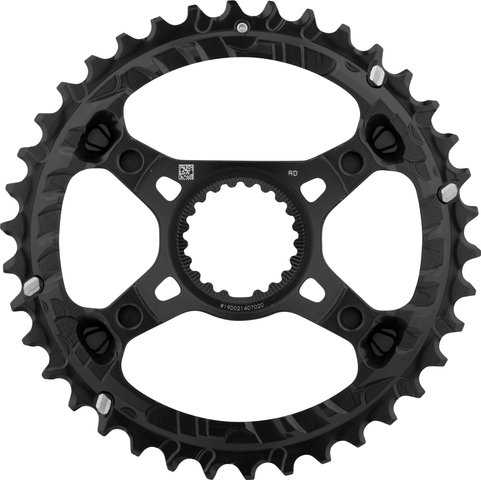

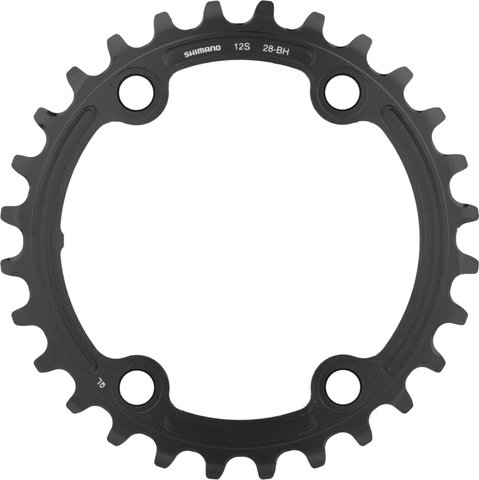

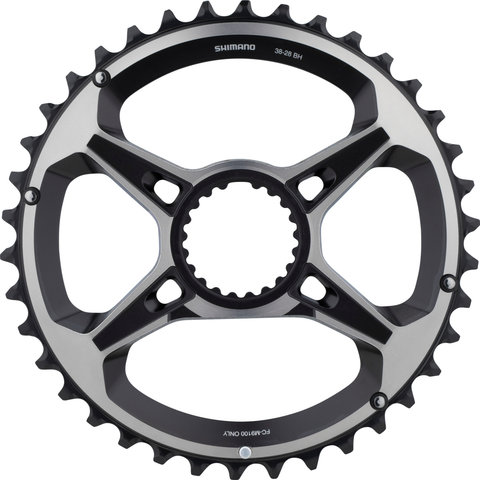

Shimano XTR FC-M9100-2 12-speed Chainring

The Shimano 12-speed Chainring for FC-M9100-2 Cranks

The Shimano XTR FC-M9100 2x12-speed chainring is a Direct Mount chainring available with 28 and 38 teeth. The outer chainring produces a chainline of 48.8 mm. The 28-tooth version, on the other hand, is also compatible with the FC-M9120 crank, provided it is ridden with 2 chainrings. Both the large and the small chainring are made of plated aluminium.

Specifications:

Application:

Cross Country, Enduro

Attachment:

Shimano Direct Mount

Teeth:

28 T, 38 T

Gearing:

2x12-speed

Technical Information:

Chainline:

48.8 mm (38 T)

Combinations:

28-38 T

Material:

Aluminium

Features:

• plated

Models:

28 tooth:

Type:

BH

Compatibility:

XTR FC-M9100, FC-M9120

Manufacturer Number:

Y-1X228000

38 tooth:

Type:

BH

Compatibility:

XTR FC-M9100

Manufacturer Number:

Y-1X298010

Note to Type Designation:

The type designation (one or two characters) helps identify the compatibility of various chainrings with other chainrings. Because the larger chainrings have specially-formed teeth and upward shifting assistance, only particular smaller chainrings will match to ensure proper shifting performance. An XY chainring should only be combined with another XY chainring. This applies to all other types as well.

Contents:

• 1 x Shimano XTR FC-M9100-2 chainring
