Shimano XTR FC-M980 10-speed Chainring

The Shimano XTR 10-speed Chainring for the FC-M980 crank

The Shimano XTR FC-M980 chainring is a Dyna-Sys chainring for use in a 10-speed MTB drivetrain. It works perfectly with the other components and fits seamlessly into the Shimano HyperDrive concept. SG-X technology ensures super-smooth shifting even under load.

Specifications:

Application:

Enduro, All Mountain, Cross Country

Mount:

104/64 mm bolt circle diameter, 4-arm

Teeth:

24 t, 26 t, 32 t, 38 t, 42 t

Gearing:

2x10-speed, 3x10-speed

Technical Information:

Combinations:

26-38 T, 24-32-42 T

Material:

aluminium (24 t + 26 t, 38 t + 42 t), titanium/carbon (CFRP, 32 t)

Compatibility:

• XTR FC-M980

Features:

• 38/42 t painted, 32 t blasted, 24/26 t plated

Models:

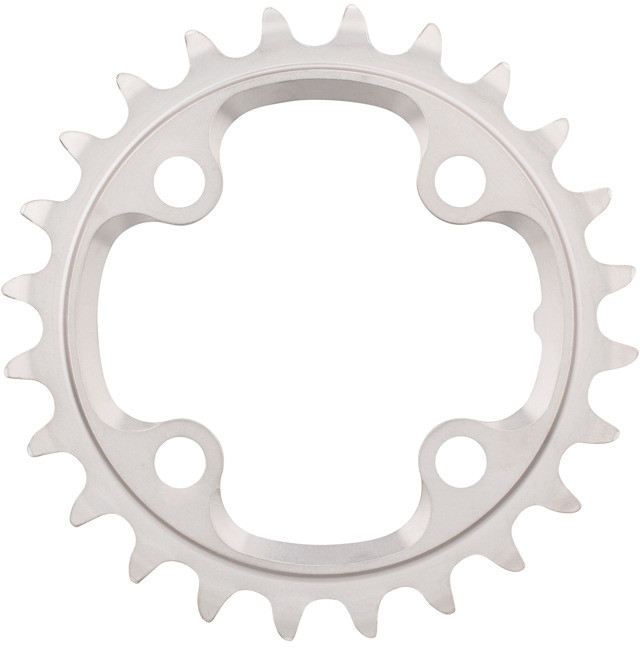

24 tooth:

Type:

AE

Bolt Circle Diameter:

64 mm

Manufacturer Number:

Y-1LR24000

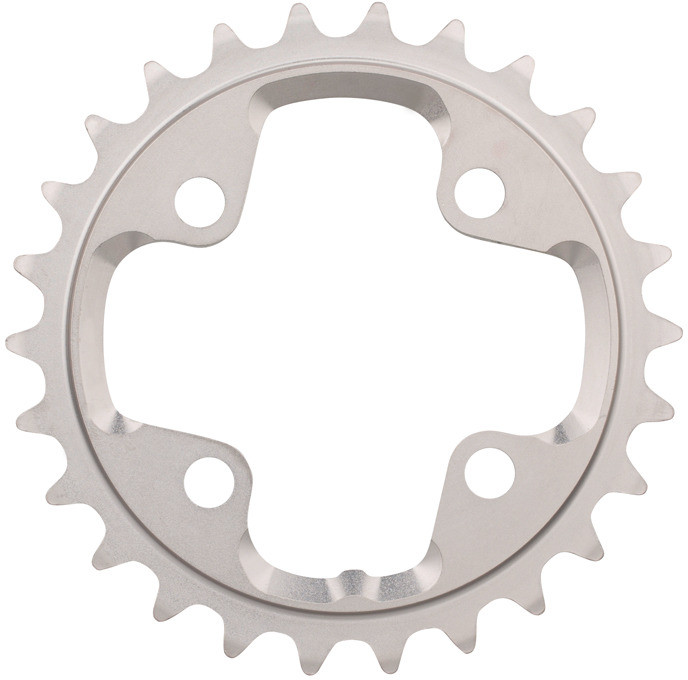

26 tooth:

Type:

AH

Bolt Circle Diameter:

64 mm

Manufacturer Number:

Y-1LR26000

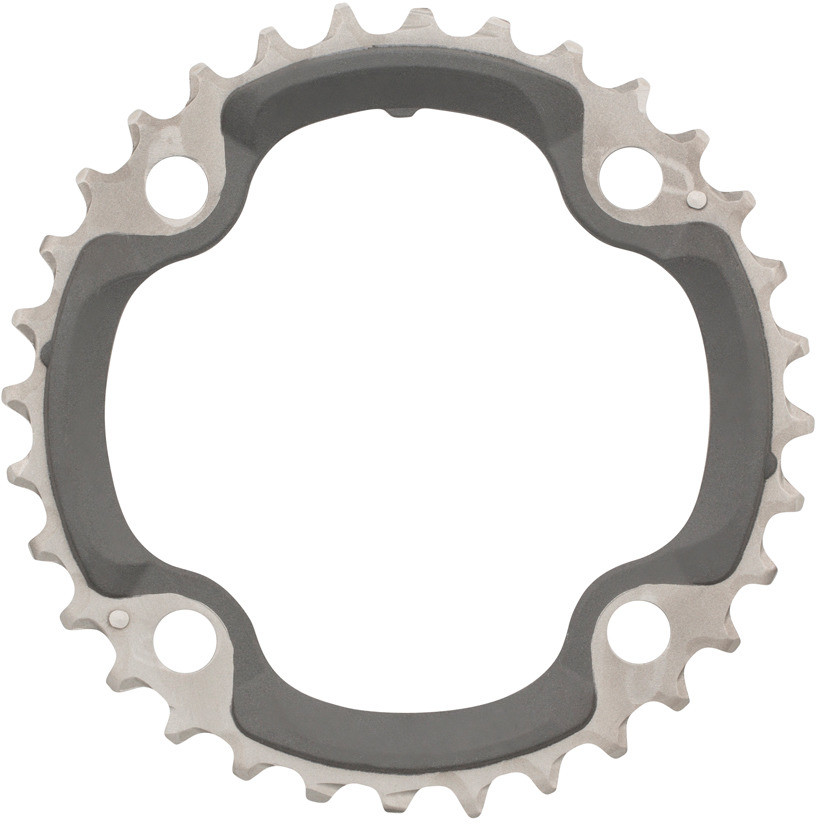

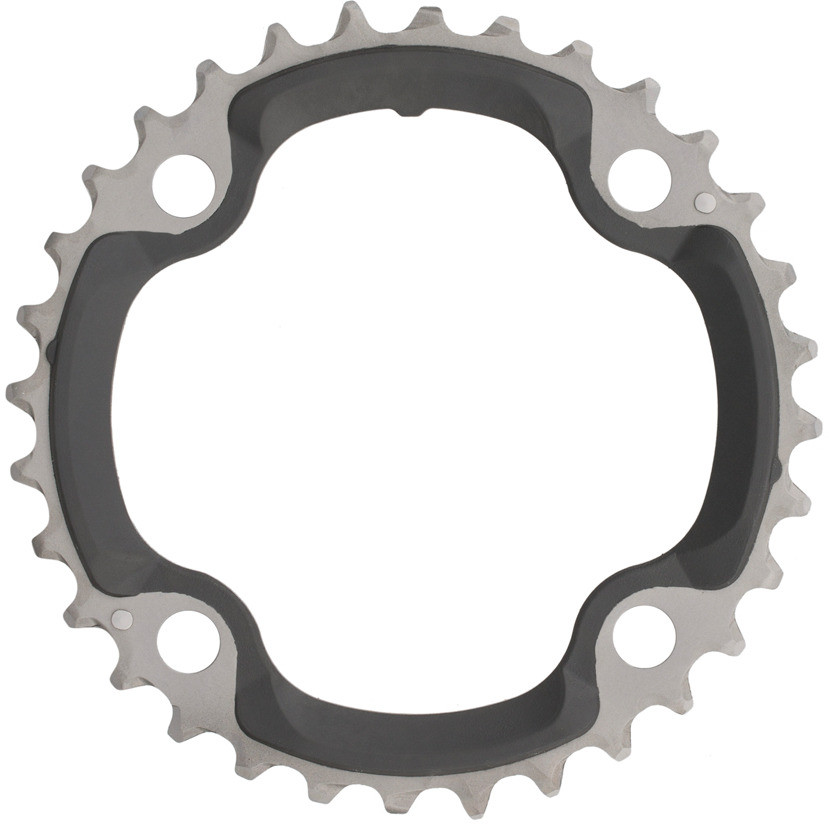

32 tooth:

Type:

AE

Bolt Circle Diameter:

104 mm

Manufacturer Number:

Y-1LR98020

Note:

Closeout model; replaced by Y-1LR98140 (32-tooth (B))

32-tooth (B):

Type:

AE

Bolt Circle Diameter:

104 mm

Manufacturer Number:

Y-1LR98140

Note:

incl. chainring bolts; replaces Y-1LR98020 (32-tooth)

38 tooth:

Type:

AH

Bolt Circle Diameter:

104 mm

Manufacturer Number:

Y-1LR98030

42 tooth:

Type:

AE

Bolt Circle Diameter:

104 mm

Manufacturer Number:

Y-1LR98010

Note to Type Designation:

The type designation (one or two characters) helps identify the compatibility of various chainrings with other chainrings. Because the larger chainrings have specially-formed teeth and upward shifting assistance, only particular smaller chainrings will match to ensure proper shifting performance. An XY chainring should only be combined with another XY chainring. This applies to all other types as well.

Contents:

• 1 x Shimano XTR FC-M980 chainring

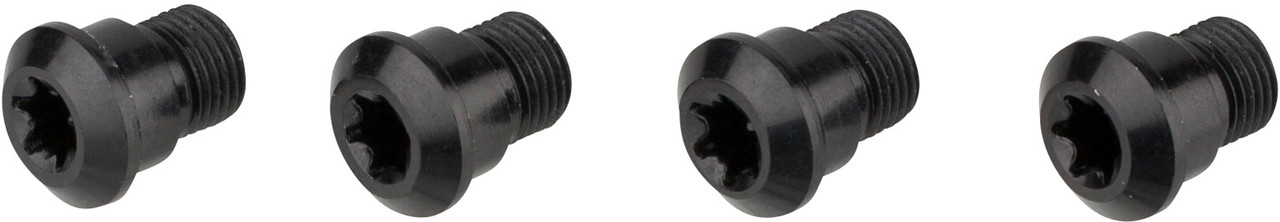

• 4 x Shimano chainring bolts (32 tooth only (B))
