Shimano XTR SL-M9100-I Mono 2x Shifter w/ I-Spec EV

The XTR SL-M9100-I Mono shifter by Shimano - one for both

With the XTR SL-M9100-I Mono 2-speed shifter, Shimano replaces the familiar Rapidfire Plus and 2-Way Release technology with a revolutionary new way of working. This allows you to shift to the large and small chainring with just one lever. Push the lever forward to shift up and it will stay in this position. If you want to shift down again, press the lever again with your thumb or pull it with your index finger. The front derailleur could never be operated more intuitively, which clearly benefits focus while racing.
Of course, the SL-M9100-I Mono Shifter features all the advantages of the innovative I-Spec EV assembly, namely extended position and rotational adjustment within the increased range provided by the integrative mounting of the shift and brake levers. The two rubber contact surfaces provide more grip and the 4x bearings stand for smooth, long-lasting function. Last but not least, the Instant Release Technology guarantees an immediate release of the shift cable. By the way, this one is polymer-coated and is supplied just like the cable housing.

Specifications:

Series:

XTR M9100

Application:

Cross Country, Enduro

Gearing:

2x

Mount:

I-Spec EV

Technical Information:

Type:

Rapidfire Plus Mono

Body Material:

Aluminium

Lever Material:

Aluminium

Cable:

stainless steel, polymer coating

Cable Housing:

OT-SP41

Adjustment Options:

• cable adjust
• position adjust
• shift lever rotation adjust

Compatibility:

MTB 2x12-speed:

Right Shifter:

SL-M9100-IR, SL-M9100-R

Front Derailleur:

FD-M9100, FD-M8100, FD-M7100

Crank:

FC-M9100-2, FC-M8100-2, FC-M7100-2, FC-MT610-2, FC-M9120-B2, FC-M8120-B2, FC-M7120-B2, FC-MT610-B2

Chain:

CN-M9100, CN-M8100, CN-M7100, CN-M6100

Brake Lever:

I-Spec EV

Features:

• intuitive, simple front shifting
• compact design in lightweight construction
• faster accessible lever and less effort during operation for continuous concentration while riding
• greater flexibility and action-optimised cockpit layout
• 2 rubber contact surfaces
• 4x ball bearing construction for easier shifting
• housing and lever painted
• stainless steel clamp bolts

Technology:

Rapidfire Plus Mono
Shimano Rapidfire Plus Mono shift levers are only available for the left side, because they shift the front derailleur. In contrast to regular Rapidfire Plus models, only one lever is installed here, which is used for both upshifting and downshifting. This is practical and accommodates natural finger positions. You change the chainring comfortably while keeping a firm grip on the handlebars and concentrating on the ride.

2-Way-Release
With 2-Way-Release, the shifter can be pressed and pulled to shift to the smaller sprocket or chainring. This allows you to adjust the shifting process to your personal preferences. Most Rapidfire Plus shifters are equipped with 2-Way Release.

Instant Release
With Instant Release, the spring and thus the cable are released immediately when the lever is actuated, which ensures an enormously fast shifting process. The delay caused by a two-step shifting process with click and release is eliminated, so that the gear change is considerably accelerated and improved.

I-Spec EV
I-Spec EV describes a variant of the connection between brake lever and shift lever on Shimano MTB derailleurs. This type of mounting allows the shifter to be adjusted both horizontally and vertically in relation to the brake lever, and ensures a tidy cockpit by reducing the number of clamps required. Compared to I-Spec and I-Spec II, I-Spec EV offers a much wider adjustment range. 14 mm adjustment range the longitudinal direction and up to 60° rotation allow an optimal ergonomic adjustment to your riding style, your sitting position and your anatomy.

Models:

2-speed:

Mount:

left

Manufacturer Number:

I-SLM9100ILBP

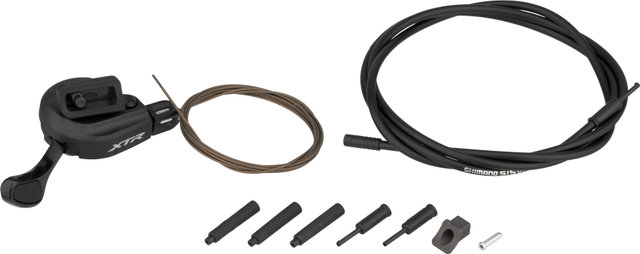

Contents:

• 1 x Shimano XTR SL-M9100-I Mono shifter
• 1 x Shimano cable (1800 mm)
• 1 x Shimano cable housing (1200 mm)
