Shimano XTR, XT Disc Brake Adapter for 160 mm Rotors

Shimano XTR, XT disc brake adapter for 160 mm rotors - weight optimised

The Shimano XTR and XT disc brake adapter for 160 mm rotors has weight-optimising cut-outs that allow you to save valuable grams. Of course it works not only with the top groupsets for which it was developed, but also with other Shimano disc brakes. The adapter allows a post mount brake caliper to be mounted on an IS fork or IS frame. There is also a version for adapting a PM frame for 140 mm direct mount to a PM brake with 160 mm rotor.

Technical Information:

Adapter Material:

Aluminium

Bolt Material:

steel

Rotor Size:

160 mm

Models:

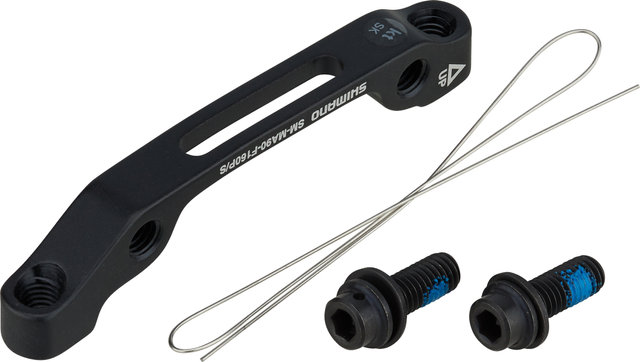

front IS to PM:

Fork Mount:

international standard

Caliper Mount:

post mount

Included in Delivery:

2 x bolts, 1 x safety wire

Manufacturer Number:

I-SMMA90F160PS

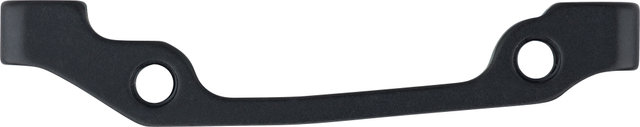

PM to PM:

Frame/Fork Mount:

post mount 5"

Caliper Mount:

post mount

Increased Height:

20 mm

Included in Delivery:

1 x long bolt, 1 x short bolt, 1 x safety wire, 2 x A-type washers, 2 x B-tyre washers

Manufacturer Number:

I-SMMA90F180PPC

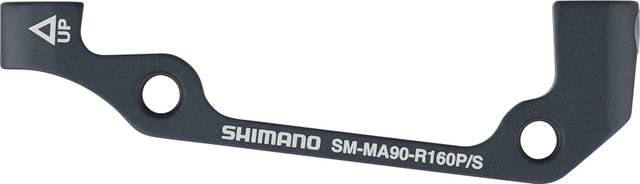

rear IS to PM:

Frame Mount:

international standard

Caliper Mount:

post mount

Included in Delivery:

2 x bolts, 1 x safety wire

Manufacturer Number:

I-SMMA90R160PS

Contents:

• 1 x Shimano SM-MA90 160 mm adapter
