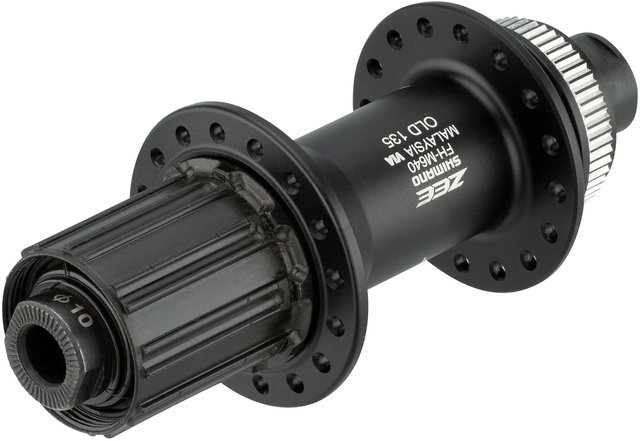

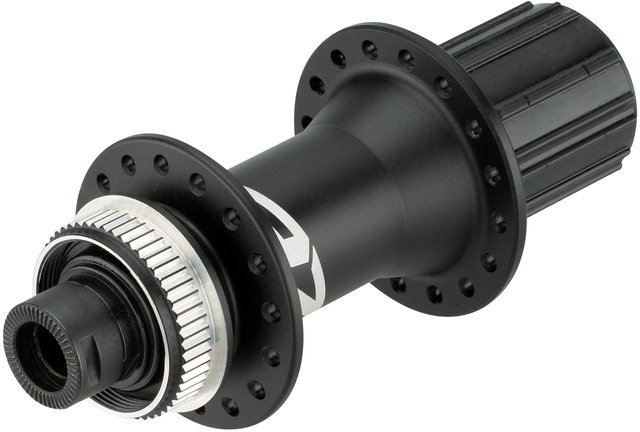

Shimano ZEE FH-M640 Center Lock Disc Rear Hub for 10 mm Thru-Axles

The ZEE rear hub FH-M640 by Shimano - for bikes with 10 x 135 mm thru-axles

The Shimano ZEE FH-M640 rear hub is suitable for freeride and downhill use and is compatible with 10 x 135 mm thru-axles. It combines an anodised aluminium body, a robust steel axle, low-maintenance cup-and-cone bearings and high-quality seals to form a reliable package for beginner gravity cyclists. Added to this is the steel freehub with quick engagement. The Shimano E-Thru technology provides torsional stiffness at a reasonable weight.

Specifications:

Series:

ZEE M640

Application:

Enduro, Downhill

Brake Type:

Center Lock Disc

Freehub Body Type:

steel, Quick Engagement (36points/360°)

Technical Information:

Body Material:

aluminium

Bearings:

cup & cone

Seals:

labyrinth + contact

Features:

• flange diameter 52.8 mm left, 53.8 mm right
• 6.4 mm offset
• CBN precision machined bearings
• steel axle
• anodised hub shell
• freehub body has contact seal
• internal grease sleeve
• fast response

Technology:

E-Thru
E-Thru is a tool-free thru-axle system from Shimano that optimises the stiffness-to-weight ratio and ensures easy handling via its reliable internal cam mechanism. It is characterised by a high torsion resistance and thus also supports cornering at high speed. E-Thru thru-axle hubs and thru-axles are available in the corresponding over locknut dimensions for front and rear.

Models:

32 hole:

Over Locknut Dimension:

10 x 135 mm thru-axle

Spoke Hole Count:

32 hole

Freehub:

Shimano MTB

Gearing:

8-/9-/10-/11-speed

Flange Distance (L/R):

57.4 mm (35.1 mm/22.3 mm)

Partial Bolt Circle Diameter (L/R):

44 mm/45 mm

Manufacturer Number:

E-FHM640EZA

36 hole:

Over Locknut Dimension:

10 x 135 mm thru-axle

Spoke Hole Count:

36 hole

Freehub:

Shimano MTB

Gearing:

8-/9-/10-/11-speed

Flange Distance (L/R):

57.4 mm (35.1 mm/22.3 mm)

Partial Bolt Circle Diameter (L/R):

44 mm/45 mm

Manufacturer Number:

E-FHM640DZA

Contents:

• 1 x Shimano ZEE FH-M640 Center Lock Disc rear hub 10 mm
