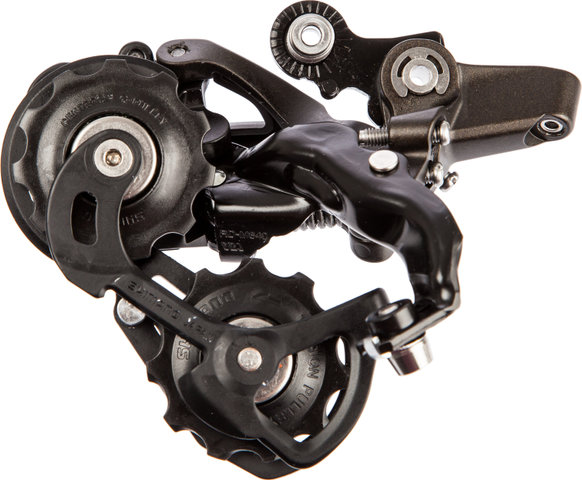

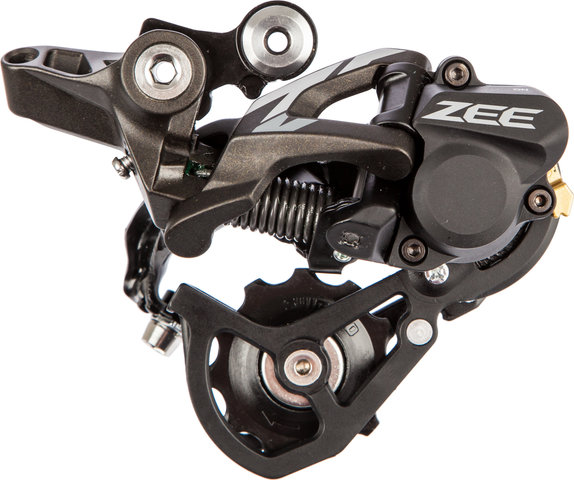

Shimano ZEE RD-M640 10-speed Shadow Plus Rear Derailleur

The ZEE RD-M640 rear derailleur by Shimano - Shadow+ for Gravity beginners

The Shimano ZEE RD-M640 is a 10-speed rear derailleur for freeride and downhill use, which is aimed more at gravity beginners than the Saint. Thanks to the groundbreaking Shadow+ technology with stabiliser, chain slap and chain drop are counteracted. The ZEE rear derailleur is available in two versions, one as DH version for a maximum number of teeth on the largest sprocket of 28 and one as FR version for 36 teeth.

Specifications:

Series:

ZEE M640

Application:

Enduro, Downhill

Gearing:

10-speed

Attachment:

standard (Direct Mount compatible)

Capacity:

25-tooth

Compatibility:

Shimano MTB / City & Touring 10-speed

Compatibility - Chains:

HG-X 10-speed

Technical Information:

Derailleur Pulleys:

11-tooth

Outer Cage Material:

Aluminium

Inner Cage Material:

Aluminium

Other Materials:

steel, stainless steel, aluminium

Compatibility:

MTB 10-speed:

Shifter:

SL-M7000-10, SL-M6000, SL-M4100, SL-M820, SL-M640, SL-M610

Cassette:

• 11-36 T: CS-M771-10, CS-HG81-10, CS-HG50-10
• 11-32, 11-34 T: CS-M771-10, CS-HG81-10, CS-HG500-10
• 11-25, 12-28 T: CS-HG500-10
• Road: CS-6700, CS-5700, CS-4600

Chain:

CN-HG95, CN-HG54

Features:

• available in two gradation-specific versions 11-28 or 11-36
• quieter drivetrain
• rear derailleur stabiliser
• lightweight and simple solution to prevent the chain dropping
• less chain sag
• 3 pivot bushings, fluorine-coated
• painted cage plates

Technology:

Shadow RD+
Shadow Plus rear derailleurs are just as low-profile as Shimano's Shadow rear derailleurs. In addition, a stabilizer with on/off switch is used to reduce chain slap and thus counteract chain drop. At the same time, this results in a quieter drive. Weight is also saved compared to other chain restraint devices.

Models:

short / 11-28:

Cage Length:

SS

Max. Largest Sprocket Teeth:

28-tooth (= DH version)

Min. Largest Sprocket Teeth:

23-tooth

Max. Smallest Sprocket Teeth:

12-tooth

Min. Smallest Sprocket Teeth:

11-tooth

Max. Chainring Difference:

single

Total Capacity:

25-tooth

Manufacturer Number:

I-RDM640SSC

short / 11-36:

Cage Length:

SS

Max. Largest Sprocket Teeth:

36-tooth (= freeride version)

Min. Largest Sprocket Teeth:

23-tooth

Max. Smallest Sprocket Teeth:

12-tooth

Min. Smallest Sprocket Teeth:

11-tooth

Max. Chainring Difference:

single

Total Capacity:

25-tooth

Manufacturer Number:

I-RDM640SSW

Contents:

• 1 x Shimano ZEE RD-M640 Shadow+ rear derailleur
