Sigma ROX 12.1 Evo GPS Bike Computer

The Sigma ROX 12.1 Evo GPS bike computer with powerful navigation functions

The ROX 12.1 Evo GPS bike computer from Sigma offers map navigation and training functions in a compact, lightweight design. The transflective display is easy to read even in sunlight. Thanks to the intuitive operation with buttons and touchscreen, you can navigate through the menu without any difficulty. Six individually adjustable training pages show you exactly the data you need. You can choose from six pre-installed sport profiles and 20 additional configurable ones. This way, you can choose the right settings depending on your bike type, whether gravel bike, road bike, mountain bike or indoor trainer. The computer is also suitable for e-bikes. If you have an electronic groupset, you can also access its data and see, for example, your current gear gradation. In combination with the Ride App, you can analyse your training data in even more detail, receive smartphone notifications and share your rides on e.g. komoot or Strava.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

Cycling

Maps:

pre-installed basic map, other maps available

Navigation:

map-based route navigation

Operation:

touchscreen, buttons

Speed:

Speed sensor (optionally available)

Heart Rate:

Heat Rate Monitor (sold separately)

Cadence:

Cadence Sensor (sold separately)

Power Meter Compatibility:

yes

Accelerometer:

yes

Sensor Connectivity:

ANT+, Bluetooth

Data Transfer:

Bluetooth, WLAN

Technical Information:

Size:

57 mm x 95 mm x 21 mm

Display Size:

3"

Display Resolution (W x H):

240 x 400 pixels

Display:

multi-coloured

Power Input:

lithium-ion battery

Battery Life:

14 hours (depending on personal use and environment)

Waterproof:

yes (IP 67)

Satellite Systems:

GPS, GLONASS, Galileo

Altimeter:

barometer

Compass:

GPS

Alerts:

display, acoustic

Functions:

accident notifications, smartphone notifications

Features:

• GPS computer with map navigation and training functions
• transflective, responsive colour display
• light, compact design and modern user interface
• Strava Live segments
• 6 pre-installed sport profiles
• up to 6 individually adjustable training pages with up to 10 training values per page
• 9 language profiles
• Crash Alert detects crash and notifies emergency contacts
• ride evaluation and more with the Sigma Ride App
• can be paired with various sensors, e.g. also radar and power meter
• drinking and eating alert
• free additional maps
• temperature display and ambient light sensor
• sunrise and sunset times
• with two mounts: GPS for mounting on handlebars or stem, Long Butler for mounting on handlebars and positioning in front of stem
• data can be shared via smartphone with komoot or TrainingPeaks, for example
• drop detection prevents raindrops from blocking the touch function

Technology:

Map Navigation
To get to your destination, you have several options to choose from. But no matter whether you enter an address or coordinates to find a destination, search for a point of interest, choose from your most recent destinations or favourites, or simply freely select a point on the map, the computer creates the optimum route according to your settings. You always remain flexible and can, for example, add or skip stops. If you deviate from the route, it will be recalculated. By default, your location is the starting point. If you are planning a route for your holiday, it is also possible to specify a different starting point. You can be navigated to the starting point or the nearest waypoint of a planned track or, if you are already on your way, back to the starting point along the same route. A unique navigation feature with an element of surprise is the Draw-my-Route function. The ROX 12.1 Evo creates a route from a hand-painted line on the map. This can be saved as a track or started directly. When creating the route, there are always three options to choose from. You can choose between the easiest, recommended and shortest route. Preferences regarding the type of tracks (cycle paths, roads, unpaved tracks) are defined beforehand in the sport profile.

Training

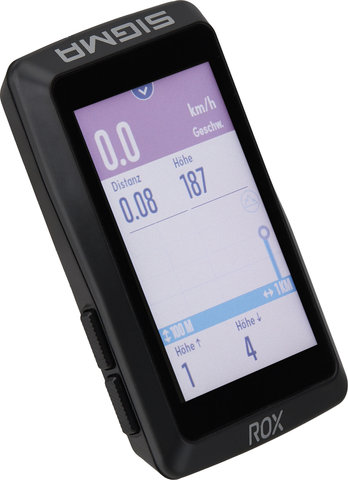

Six pre-installed and 20 configurable sport profiles allow you to tailor your training to the bike you are riding. Up to six screens can be freely set on the computer. Depending on how many values are to be displayed per page (1-10), you will receive different layout suggestions, with 8 different field colours for highlighting to choose from. A total of 30 training views are available, as well as additional views for workout, FE-C smart trainer and laps. In order to collect further data, the training computer can be paired with various sensors to determine cadence, heart rate or similar. For training analysis, the computer offers various statistics and shows your personal records. For more detailed analyses, simply connect it to the Ride app.

E-Bike Ready
The bike computer is e-bike ready. This means that you can connect it to most e-bikes. This gives you values such as range, battery status and support level on the display of your bike computer.

Electronic Shifting
If you use an electronic shifting system, your bike computer allows you to keep an eye on the battery charge status, the front and rear gears, the gear ratio and, in the case of Di2, the shifting mode. When used with Shimano Di2, you operate the computer using the D-Fly channel and switch between the training pages without taking your hands off the handlebars.

Trend Indoor Cycling
Your cycling computer can be connected to smart trainers. This gives you access to all computer functions to record your training.

Manufacturer Numbers:

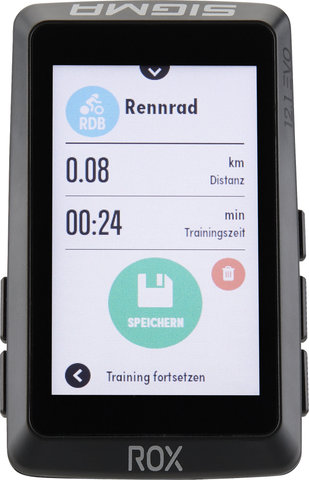

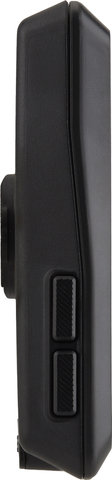

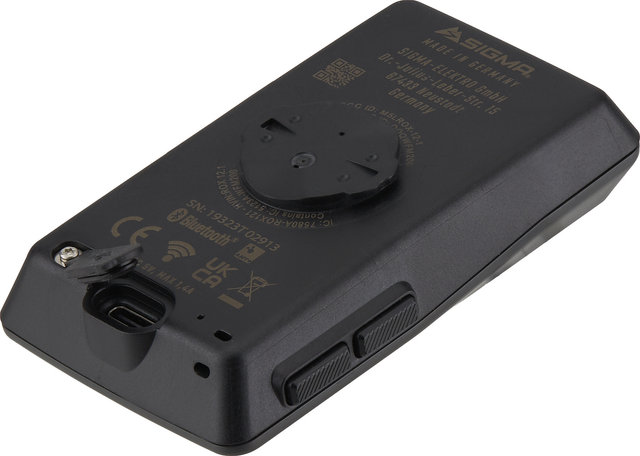

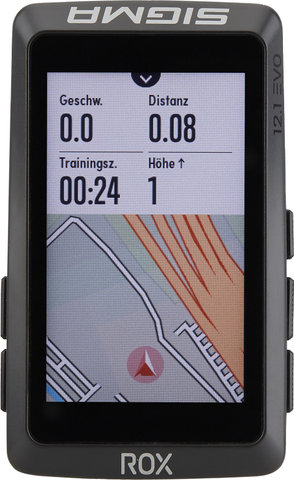

grey:

01040

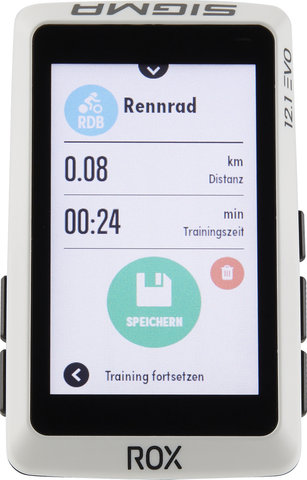

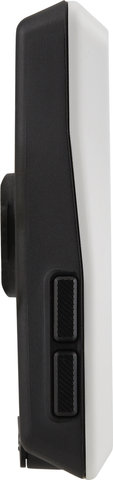

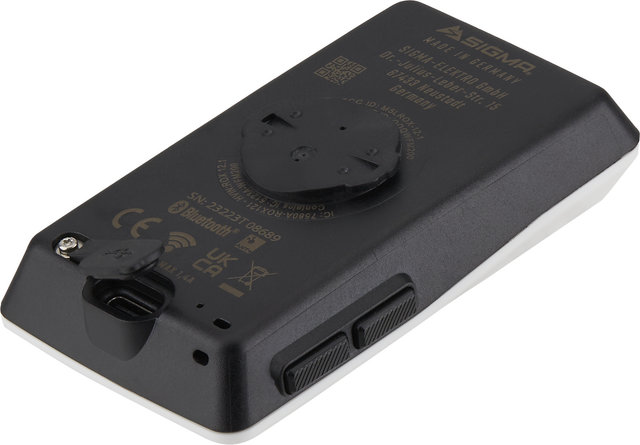

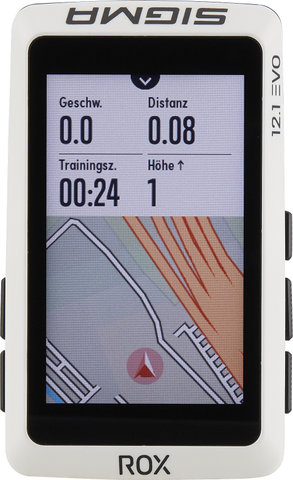

white:

01041

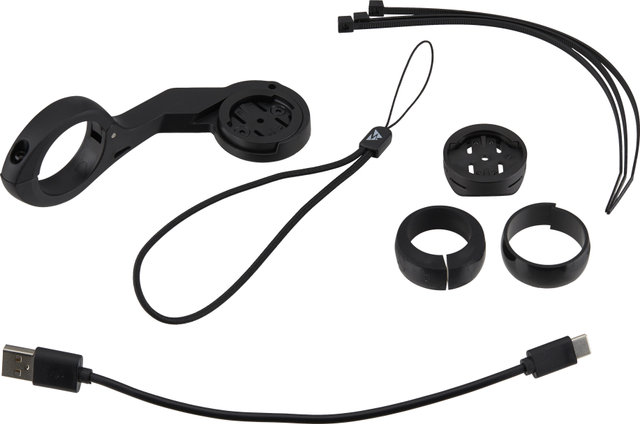

Contents:

• 1 x Sigma ROX 12.1 Evo GPS Bike Computer
• 1 x Sigma Long Butler handlebar mount, 3-piece
• 1 x Sigma GPS mount
• 1 x USB cable
• 3 x cable tie
• 1 x loop
