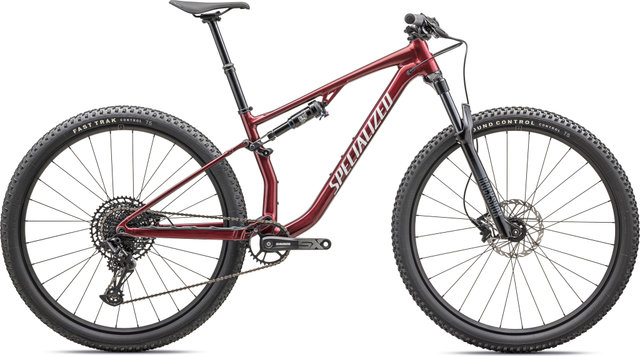

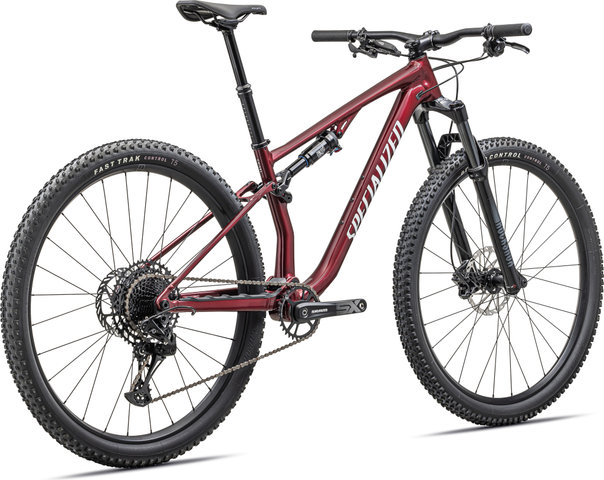

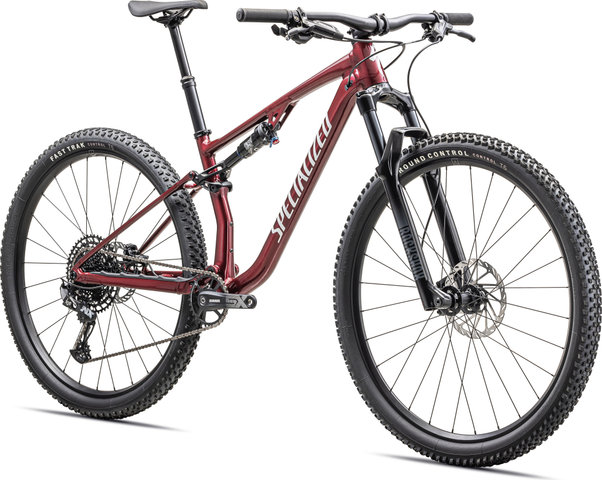

Specialized Chisel 29" Mountain Bike

Specifications:

Application:

Cross Country

Wheel Size:

29"

Front Travel:

120 mm

Rear Travel:

110 mm

Sizes:

L, M, XL

Front Triangle Material:

aluminum

Rear Triangle Material:

aluminum

Components:

Frame:

Specialized Chisel

Fork:

RockShox Recon Silver RL

Stem:

Specialized, 7°

Handlebars:

Specialized, 760 mm

Grips:

Specialized Trail

Rear Shock:

XFusion Pro-02, 190 x 40 mm

Remote System:

none

Headset:

1 1/8" - 1.5"

Seatpost:

TranzX, Travel: 125 mm (M), 150 mm (L, XL)

Saddle:

Specialized Body Geometry Power Sport with steel rails

Crank:

SRAM SX Eagle, 32T, with SRAM Powerspline BSA Bottom Bracket

Pedals:

none

Brakes:

SRAM Level T, hydraulic, Brake Discs: 180 mm / 160 mm (front/rear)

Shift Lever:

SRAM SX Eagle

Rear Derailleur:

SRAM NX Eagle, 12-speed

Cassette:

SRAM PG-1210 Eagle, 11-50T, 12-speed

Chain:

SRAM SX Eagle

Rims:

Specialized, Tubeless Ready, Internal Width: 27 mm

Spokes:

Stainless Steel, 2.0 mm

Front Hub:

Specialized, 15 x 110 mm, Disc 6-Bolt

Rear Hub:

Specialized, 12 x 148 mm, Disc 6-Bolt

Front Tyre:

Specialized Ground Control T5, 29 x 2.35"

Rear Tyre:

Specialized Fast Trak Control T5, 29 x 2.35"

Approved For:

Weight Limit:

127 kg (Rider + Luggage)

Rotor Size (max.):

180 mm

Tyre Size (max.):

29 x 2.4"

Chainrings:

1x

Chainring Size (max.):

1x 34T at 52 mm chainline, 1x 36T at 55 mm chainline

Features:

• Cross-country full-suspension with RockShox fork, XFusion shock, and 1x12-speed SRAM drivetrain
• Lightweight aluminum frame
• Agile handling and efficient climbing
• FlipChip for geometry adjustment
• TranzX Dropper Post with infinitely adjustable travel
• Powerful SRAM Level T 2-piston disc brakes
• 2 bottle cage mounts
• For SRAM UDH universal derailleur hanger

Technology:

D'Aluisio Smartweld Technology (DSW)
The D'Aluisio Smartweld technology, named after its inventor Chris D'Aluisio, builds on hydroforming, the shaping of aluminum by hydraulic pressure. A flange with seam preparation is then formed, which is then welded. This improves accessibility during welding, produces cleaner welds due to more even heat distribution, and distributes the stiffness jump over a larger area. This not only ensures smoother stiffness transitions and lower load peaks, but also contributes to material and weight savings because thinner wall thicknesses can be used. With this technology, the best can be brought out of aluminum, and frames can be made that are almost as precise and strong as carbon models, but of course, are much more affordable.

Geometry:

(based on a fork axle to crown length of 530 mm and low bottom bracket height)
M:

Stack:

606 mm

Reach:

445 mm

Seat Tube Length:

410 mm

Effective Top Tube Length:

602 mm

Head Tube Length:

120 mm

Chainstay Length:

437 mm

Wheelbase:

1176 mm

Bottom Bracket Height:

336 mm

BB Drop:

30 mm

Seat Tube Angle:

75.0°

Head Tube Angle:

66.5°

Standover Height:

777 mm

Stem Length:

40 mm

Handlebar Width:

760 mm

Crank Arm Length:

170.0 mm

L:

Stack:

614 mm

Reach:

470 mm

Seat Tube Length:

450 mm

Effective Top Tube Length:

634 mm

Head Tube Length:

135 mm

Chainstay Length:

437 mm

Wheelbase:

1207 mm

Bottom Bracket Height:

336 mm

BB Drop:

30 mm

Seat Tube Angle:

75.0°

Head Tube Angle:

66.5°

Standover Height:

787 mm

Stem Length:

40 mm

Handlebar Width:

760 mm

Crank Arm Length:

175.0 mm

XL:

Stack:

629 mm

Reach:

495 mm

Seat Tube Length:

485 mm

Effective Top Tube Length:

654 mm

Head Tube Length:

155 mm

Chainstay Length:

437 mm

Wheelbase:

1237 mm

Bottom Bracket Height:

336 mm

BB Drop:

30 mm

Seat Tube Angle:

75.0°

Head Tube Angle:

66.5°

Standover Height:

790 mm

Stem Length:

60 mm

Handlebar Width:

760 mm

Crank Arm Length:

175.0 mm

Manufacturer Numbers:

M:

93825-7103

L:

93825-7104

XL:

93825-7105

Shipping Notice:

The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders. For individual consultation, please contact our customer service team.

Contents:

• 1 x Specialized Chisel 29" Mountain Bike
