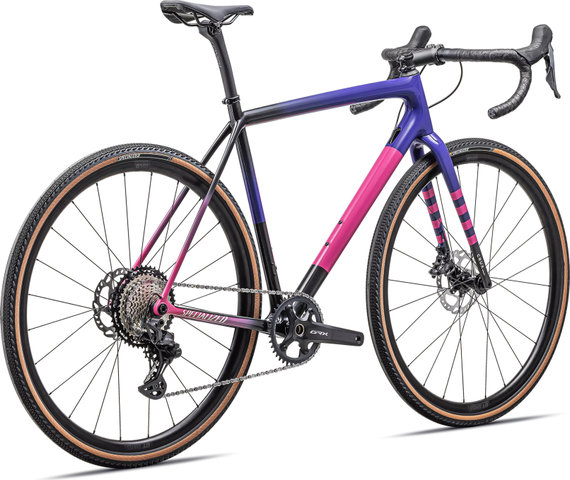

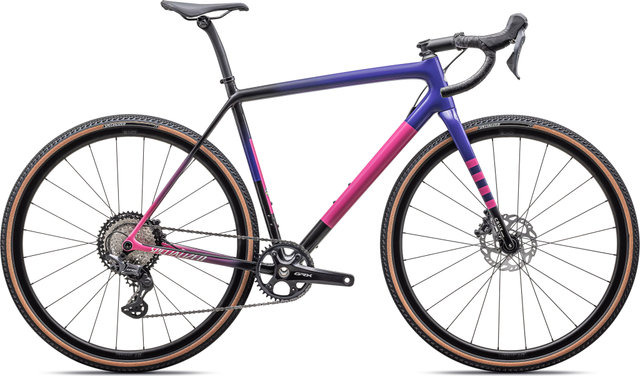

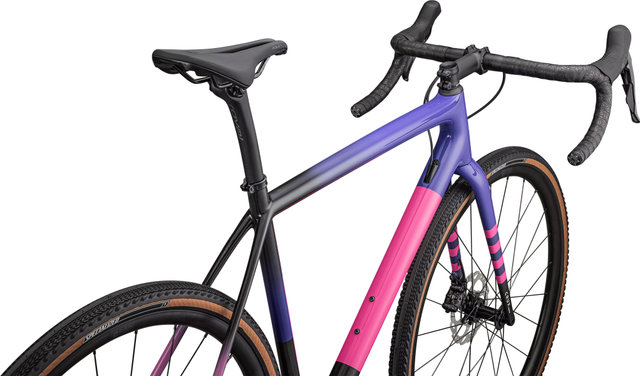

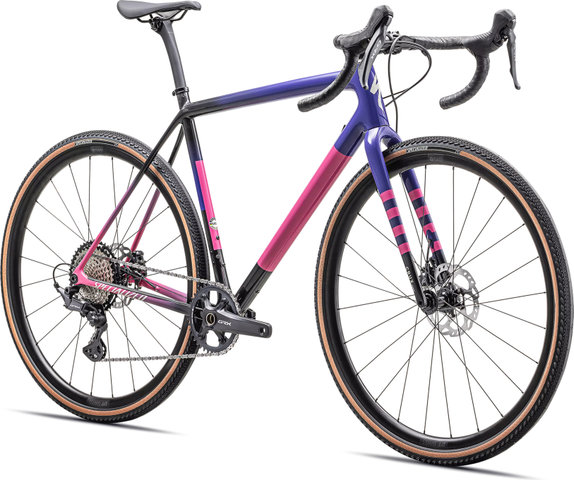

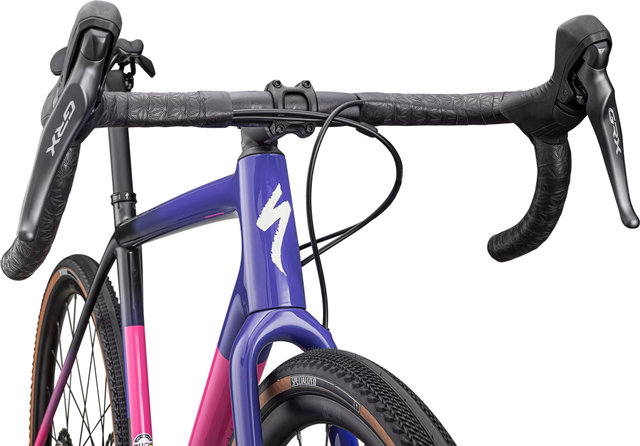

Specialized Crux Comp 28" Gravel Bike

Specifications:

Application:

Gravel, Cyclocross

Wheel Size:

28"

Sizes:

52 cm, 54 cm, 56 cm, 58 cm

Frame Material:

carbon (10r)

Fork Material:

carbon

Components:

Frame:

Specialized Crux

Fork:

Specialized S-Works FACT-carbon

Stem:

Specialized, 7°

Handlebars:

Specialized Adventure Gear, Handlebar Tape: Supacaz Super Sticky Kush

Headset:

1 1/8" - 1.5"

Seatpost:

Specialized Roval Terra carbon, Setback: 20 mm

Saddle:

Specialized Body Geometry Power Sport with steel rails

Crank:

Shimano GRX RX820, 40 T

Pedals:

none

Brakes:

Shimano GRX RX820, hydraulic

Shift/Brake lever:

Shimano GRX RX820

Rear Derailleur:

Shimano GRX RX822-GS, 12-speed

Cassette:

Shimano XT, 10-45 T, 12-speed

Chain:

Shimano XT M8100

Rims:

DT Swiss G540, Tubeless Ready, Inner Width: 24 mm

Spokes:

DT Swiss Champion, Stainless Steel, 2.0 mm

Front Hub:

Specialized, 12 x 100 mm, Disc Center Lock

Rear Hub:

Specialized, 12 x 142 mm, Disc Center Lock

Front Tyre:

Specialized Pathfinder Pro, Tubeless Ready, 700x38C

Rear Tyre:

Specialized Pathfinder Pro, Tubeless Ready, 700x38C

Approved For:

Weight Limit:

109 kg (Rider + Luggage)

Rotor Size (max.):

180 mm (front), 160 mm (rear)

Tyre Size (max.):

700 x 47C, 27.5" x 2.1"

Features:

• Fast gravel bike for gravel riding and cyclocross races
• Made from extremely lightweight FACT-carbon
• Designed with the help of tube shapes from the Aethos road bike frame
• Shimano GRX 1x12-speed groupset for smooth shifting
• DT Swiss G540 wheels with Specialized tires
• High tyre clearance
• Sporty geometry with long reach, low stack, and higher bottom bracket
• Agile, manoeuvrable, and smooth handling
• Strong climbing, fast, and performance-oriented, perfect for competition use
• Supacaz Super Sticky Kush handlebar tape

Technology:

FACT
FACT stands for “Functional Advanced Composite Technology” and encompasses all of Specialized's expertise in dealing with carbon fibers. It's a holistic approach that primarily concerns the frames but is also found in many components like handlebars, stems, saddles, etc. The starting point is always the awareness for the needs of riders and the capability to fulfil them. Then it comes to selecting the fibers, resins, and weave layers, where the quality of the carbon and the arrangement of the fiber layers play an important role. It's about finding the right setup for the project at hand and the intended use or area of application. It is often necessary to differentiate from model to model at several points. In the final step, attention is paid to processing the material in a way that allows the desired advantages in terms of low weight, rigidity, and stability to be achieved.

Rider-First Engineered
Rider-First Engineered describes the design approach used by Specialized to precisely match each frame size to the target group. Simply put, smaller frames for smaller riders are built differently than larger frames for larger riders. This is done based on performance parameters determined in practical tests, taking into account the forces acting on different areas of the bike when riders of different sizes ride it. Based on this analysis, the optimal tube dimensions and the appropriate carbon fiber layout for each frame size are determined. This way you can be sure that no matter what your height is, you will receive a bike that delivers optimal and controllable performance suited to your size.

Geometry:

52 cm:

Recommended Height:

163 - 168 cm

Stack:

547 mm

Reach:

382 mm

Seat Tube Length:

496 mm

Effective Top Tube Length:

539 mm

Head Tube Length:

115 mm

Chainstay Length:

425 mm

Wheelbase:

1014 mm

Bottom Bracket Height:

284 mm

BB Drop:

74 mm

Seat Tube Angle:

74°

Head Tube Angle:

71.25°

Standover Height:

772 mm

Stem Length:

80 mm

Handlebar Width:

400 mm

Crank Arm Length:

170.0 mm

54 cm:

Recommended Height:

168 - 175 cm

Stack:

560 mm

Reach:

388 mm

Seat Tube Length:

521 mm

Effective Top Tube Length:

549 mm

Head Tube Length:

130 mm

Chainstay Length:

425 mm

Wheelbase:

1023 mm

Bottom Bracket Height:

286 mm

BB Drop:

72 mm

Seat Tube Angle:

74°

Head Tube Angle:

71.5°

Standover Height:

794 mm

Stem Length:

90 mm

Handlebar Width:

420 mm

Crank Arm Length:

172.5 mm

56 cm:

Recommended Height:

175 - 183 cm

Stack:

578 mm

Reach:

397 mm

Seat Tube Length:

546 mm

Effective Top Tube Length:

568 mm

Head Tube Length:

147 mm

Chainstay Length:

425 mm

Wheelbase:

1033 mm

Bottom Bracket Height:

286 mm

BB Drop:

72 mm

Seat Tube Angle:

73.5°

Head Tube Angle:

72°

Standover Height:

816 mm

Stem Length:

100 mm

Handlebar Width:

420 mm

Crank Arm Length:

172.5 mm

58 cm:

Recommended Height:

183 - 191 cm

Stack:

598 mm

Reach:

405 mm

Seat Tube Length:

576 mm

Effective Top Tube Length:

582 mm

Head Tube Length:

167 mm

Chainstay Length:

425 mm

Wheelbase:

1045 mm

Bottom Bracket Height:

286 mm

BB Drop:

72 mm

Seat Tube Angle:

73.5°

Head Tube Angle:

72.25°

Standover Height:

841 mm

Trail:

62 mm

Stem Length:

110 mm

Handlebar Width:

440 mm

Crank Arm Length:

175.0 mm

Manufacturer Numbers:

52 cm:

91425-5452

54 cm:

91425-5454

56 cm:

91425-5456

58 cm:

91425-5458

Shipping Notice:

The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.

Contents:

• 1 x Gravel Bike Specialized Crux Comp 28"
