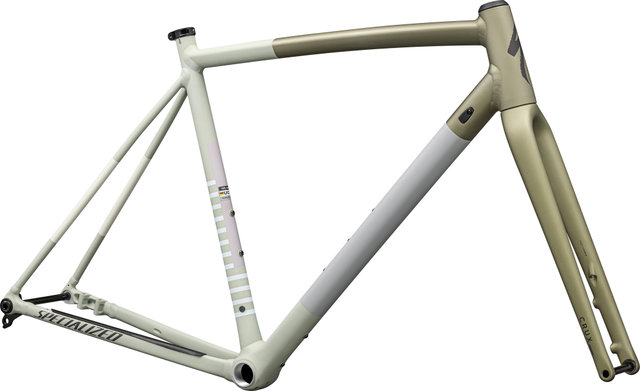

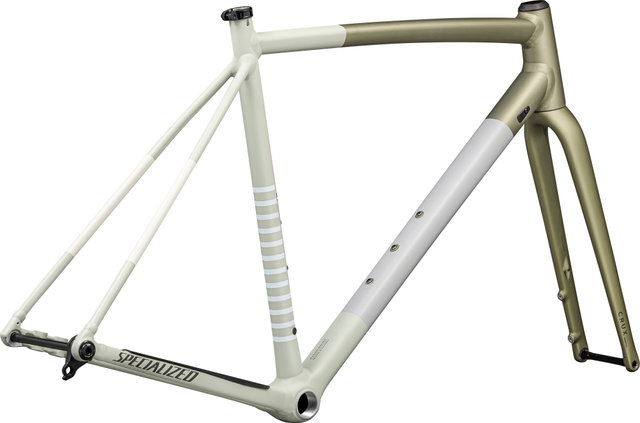

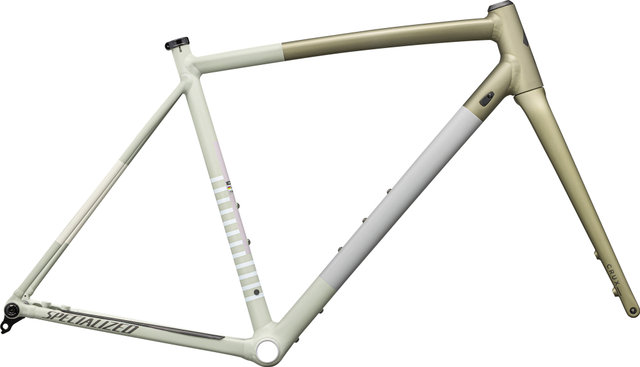

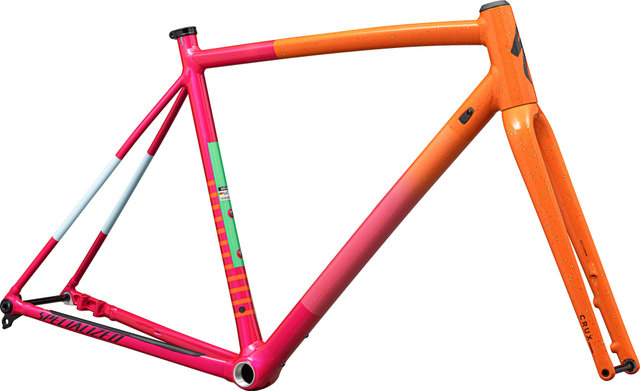

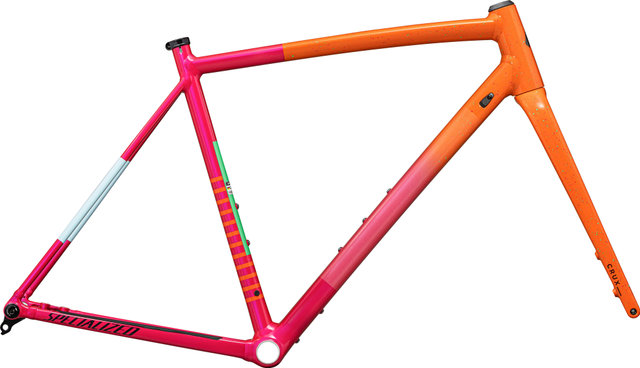

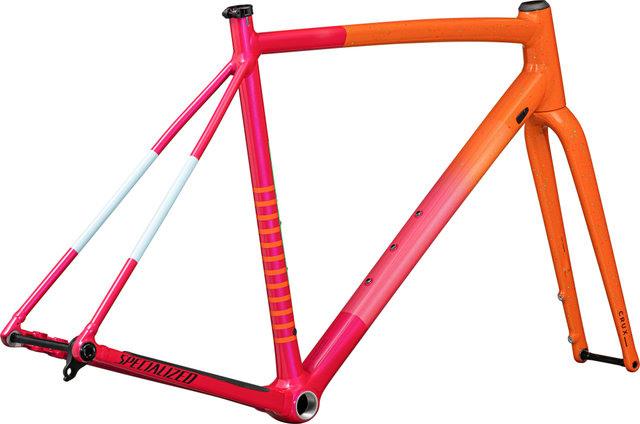

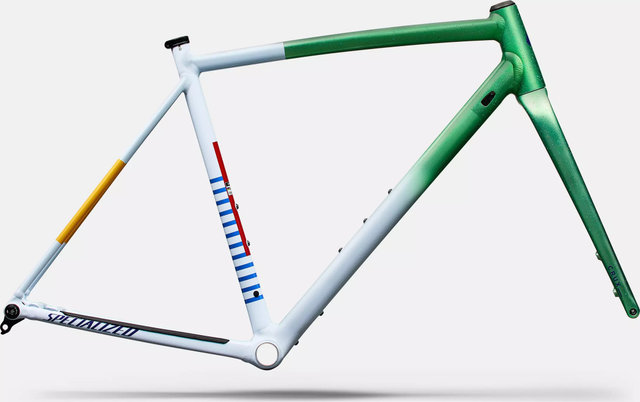

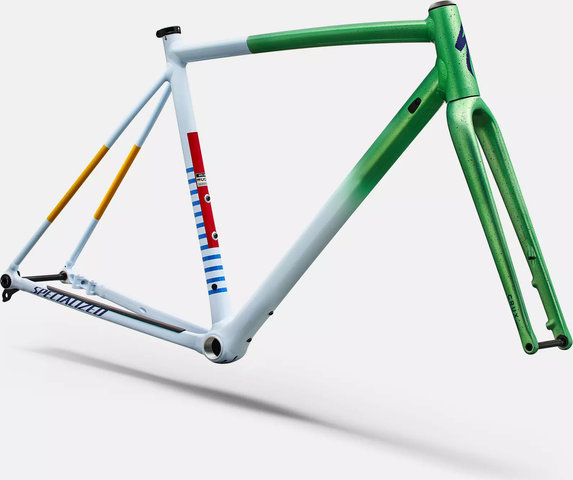

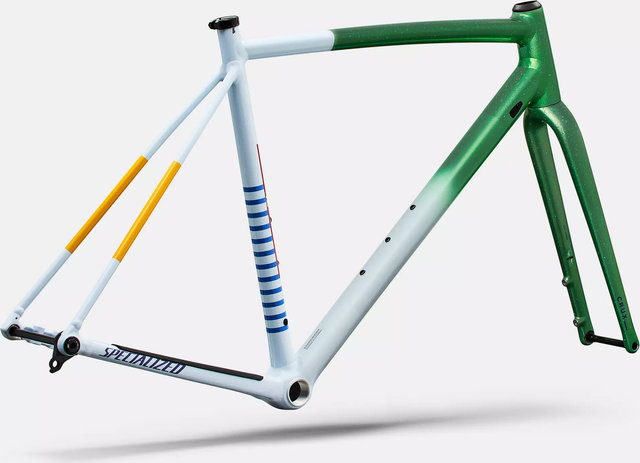

Specialized Crux DSW Frame Kit

Specifications:

Application:

Gravel, Cyclocross

Wheel Size:

27.5" , 28"

Size:

56 cm

Material Frame:

aluminum (E5)

Material Fork:

carbon (FACT)

Technical Data Frame:

Wheel Standard:

12 x 142 mm (standard)

Axle Type:

12 mm thru-axle

Seatpost (Ø):

27.2 mm

Seatpost Clamp(Ø):

30.8 mm

Headset:

Specialized (41.8 x 30.5 x 8 mm, 45 x 45°, 49.5 x 40.5 x 6.5 mm, 45 x 45°)

Bottom Bracket Standard:

BSA

Shell Width:

68 mm

Brake Mount:

flat mount

Front Derailleur Mount:

clamp

Cable Routing:

internal, mechanical / electrical

Bottle Cage Mounts:

3

Approved For:

Weight Limit:

125 kg (total load)

Rotor Size (max.):

160 mm

Tyre Size (max.):

47-622, 2.1" -650B

Chainrings:

1x, 2x

Features:

• Extremely lightweight aluminum frame kit with FACT-12r-carbon fork
• High tyre clearance for more comfort
• Nimble and agile frame geometry for fast rides
• D’Aluisio Smartweld Technology for improved riding characteristics without extra weight

Technology:

D'Aluisio Smartweld Technology (DSW)
The D'Aluisio Smartweld welding technology, named after its inventor Chris D'Aluisio, is based on so-called hydroforming, the shaping of aluminum by hydraulic pressure. A flange with seam preparation is then formed, which is then welded. This improves accessibility during welding, produces cleaner welds due to more even heat distribution, and distributes the stiffness jump over a larger area. This not only ensures smoother stiffness transitions and lower load peaks but also contributes to material and weight savings because thinner wall thicknesses can be used. With this technology, the best can be extracted from aluminum, and frames can be made that are almost as precise and strong as carbon models but are naturally much more affordable.

Geometry:

(based on a fork installation length of 401 mm)
56 cm:

Recommended Height:

175 - 183 cm

Stack:

578 mm

Reach:

397 mm

Seat Tube Length:

546 mm

Top Tube Length:

568 mm

Head Tube Length:

147 mm

Chainstay Length:

425 mm

Wheelbase:

1033 mm

Bottom Bracket Height:

286 mm

BB Drop:

72 mm

Seat Tube Angle:

73.5°

Head Tube Angle:

72.25°

Standover Height:

841 mm

Manufacturer Numbers:

71425-7056

Contents:

• 1 x Specialized Crux DSW frame
• 1 x Specialized FACT-carbon fork
