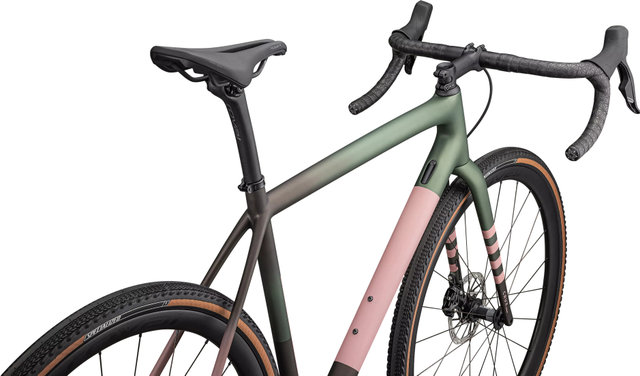

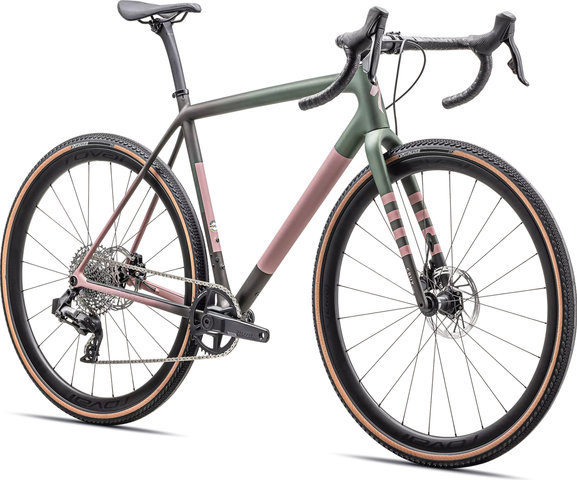

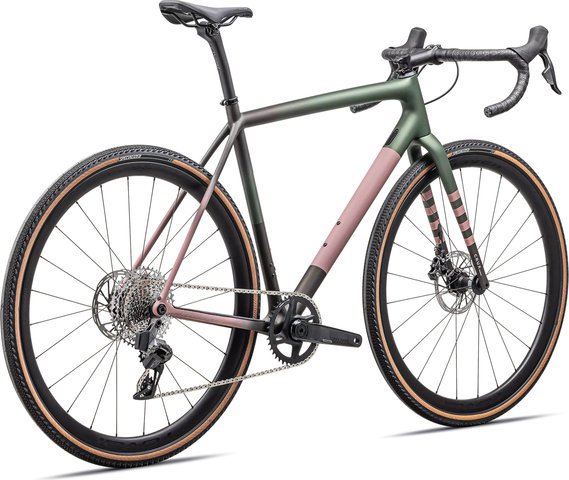

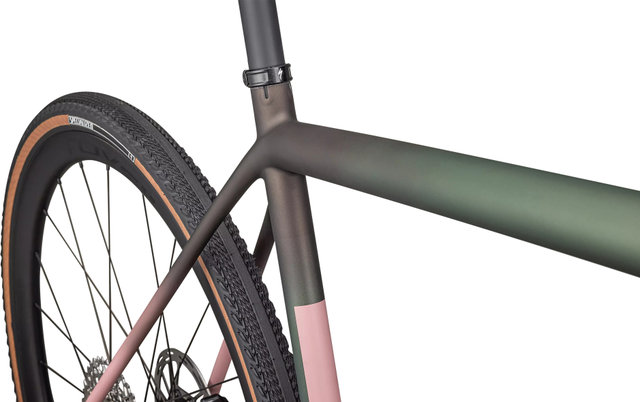

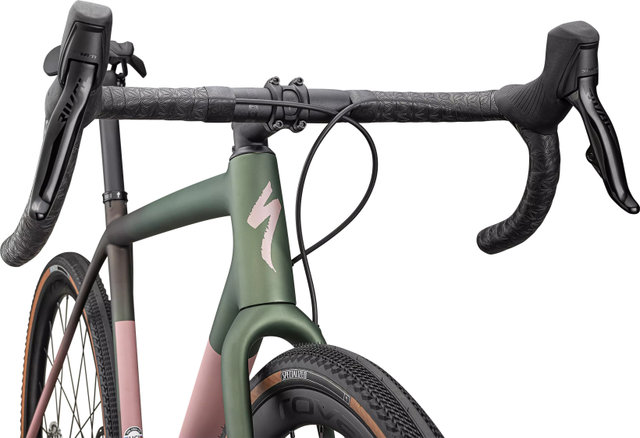

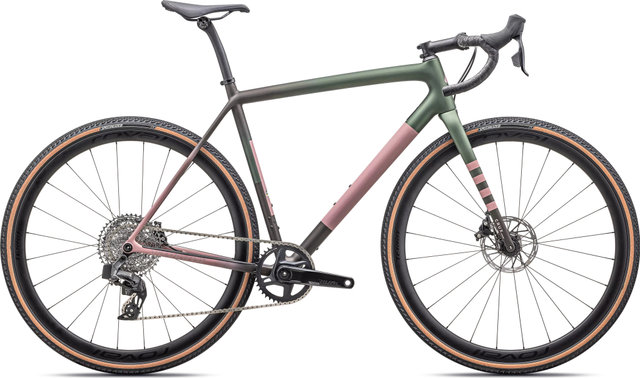

Specialized Crux Expert 28" Gravel Bike

Information regarding the return of batteries and electrical equipment:

You can find information on the return and disposal of used batteries, accumulators, and electrical equipment here.

Specifications:

Application:

Gravel, Cyclocross

Wheel Size:

28"

Sizes:

52 cm, 54 cm, 56 cm, 58 cm

Material Frame:

carbon (10r)

Material Fork:

carbon

Components:

Frame:

Specialized Crux, FACT-carbon, Disc flat mount, Thru-axle, 12 x 142 mm

Fork:

Specialized S-Works FACT-carbon, Disc flat mount, Thru-axle, 12 x 100 mm

Stem:

Specialized Pro SL aluminum, 6°

Handlebars:

Specialized Adventure Gear, 119 mm Drop, 70 mm Reach, 12° Flare

Headset:

Specialized S242500005

Seatpost:

Specialized Roval Terra carbon, Setback: 20 mm

Saddle:

Specialized Body Geometry Power Expert with titanium rails

Crank:

SRAM Rival, 40 T

Pedals:

none

Brakes:

SRAM Rival, hydraulic

Shift/Brake lever:

SRAM Rival Tap AXS

Rear Derailleur:

SRAM Rival XPLR AXS, 12-speed

Cassette:

SRAM XPLR XG-1251, 10-44 t, 12-speed

Chain:

SRAM Rival, 12-speed

Wheels:

Roval Terra C, 25 mm internal width, 32 mm rim height, 24/24 spokes, Tubeless Ready, Hubs: DT Swiss 370, Disc Center Lock, Spokes: DT Swiss Competition Race

Tyres:

Specialized Pathfinder Pro 2BR, Tubeless Ready, 700x38C

Approved For:

Weight Limit:

125 kg (Rider + Luggage)

Tyre Size (max.):

700 x 47C, 27.5" x 2.1"

Features:

• Fast gravel bike for gravel riding and cyclocross races
• Strong climbing, fast and performance-oriented, perfect for competition use
• Made from extremely lightweight FACT-carbon
• Designed with the help of tube shapes from the Aethos road bike frame
• SRAM Rival AXS 1x12-speed groupset for fast and precise shifting
• Sporty geometry with long reach, low stack, and higher bottom bracket
• Agile, manoeuvrable, and smooth handling
• Lightweight and sturdy Roval wheels with Specialized tires
• High tire clearance
• Supacaz Super Sticky Kush handlebar tape

Technology:

FACT
FACT stands for " Functional Advanced Composite Technology" and encompasses all of Specialized's expertise in handling carbon fibers. It is a holistic approach that primarily concerns frames but is also found in many components such as handlebars, stems, saddles, etc. The starting point is always the awareness of the needs of riders and the ability to meet them. Then, it moves on to selecting the fibers, resins, and weave layers, where the quality of the carbon and the arrangement of the fiber layers play an important role. It's about finding the right setup for the given project and the intended location or area of use. It is often necessary to differentiate from model to model at several points. In the final step, attention is paid to processing the material in a way that allows the desired advantages in terms of low weight, rigidity, and stability to be achieved.

Rider-First Engineered
Rider-First Engineered describes the design approach used by Specialized to precisely match each frame size to the target group. Simply put, smaller frames for smaller riders are built differently than larger frames for larger riders. This is done based on performance parameters determined in practical tests, taking into account the forces acting on different areas of the bike when riders of different sizes ride it. Based on this analysis, the optimal tube dimensions and appropriate carbon fiber layup for each frame size are determined. This way, you can be sure that no matter what your height is, you will receive a bike that delivers optimal and controllable performance suited to your size.

Geometry:

52 cm:

Recommended Height:

163 - 168 cm

Stack:

547 mm

Reach:

382 mm

Seat Tube Length:

496 mm

Effective Top Tube Length:

539 mm

Head Tube Length:

115 mm

Chainstay Length:

425 mm

Wheelbase:

1014 mm

Bottom Bracket Height:

284 mm

BB Drop:

74 mm

Seat Tube Angle:

74°

Head Tube Angle:

71.25°

Standover Height:

772 mm

Stem Length:

80 mm

Handlebar Width:

400 mm

Crank Arm Length:

170.0 mm

54 cm:

Recommended Height:

168 - 175 cm

Stack:

560 mm

Reach:

388 mm

Seat Tube Length:

521 mm

Effective Top Tube Length:

549 mm

Head Tube Length:

130 mm

Chainstay Length:

425 mm

Wheelbase:

1023 mm

Bottom Bracket Height:

286 mm

BB Drop:

72 mm

Seat Tube Angle:

74°

Head Tube Angle:

71.5°

Standover Height:

794 mm

Stem Length:

90 mm

Handlebar Width:

420 mm

Crank Arm Length:

172.5 mm

56 cm:

Recommended Height:

175 - 183 cm

Stack:

578 mm

Reach:

397 mm

Seat Tube Length:

546 mm

Effective Top Tube Length:

568 mm

Head Tube Length:

147 mm

Chainstay Length:

425 mm

Wheelbase:

1033 mm

Bottom Bracket Height:

286 mm

BB Drop:

72 mm

Seat Tube Angle:

73.5°

Head Tube Angle:

72°

Standover Height:

816 mm

Stem Length:

100 mm

Handlebar Width:

420 mm

Crank Arm Length:

172.5 mm

58 cm:

Recommended Height:

183 - 191 cm

Stack:

598 mm

Reach:

405 mm

Seat Tube Length:

576 mm

Effective Top Tube Length:

582 mm

Head Tube Length:

167 mm

Chainstay Length:

425 mm

Wheelbase:

1045 mm

Bottom Bracket Height:

286 mm

BB Drop:

72 mm

Seat Tube Angle:

73.5°

Head Tube Angle:

72.25°

Standover Height:

841 mm

Stem Length:

110 mm

Handlebar Width:

440 mm

Crank Arm Length:

175.0 mm

Manufacturer Numbers:

91425-31

Shipping Notice:

The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.

Contents:

• 1 x Gravel Bike Specialized Crux Expert 28"
