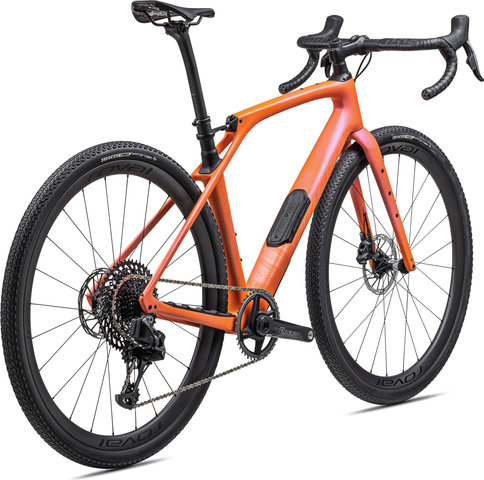

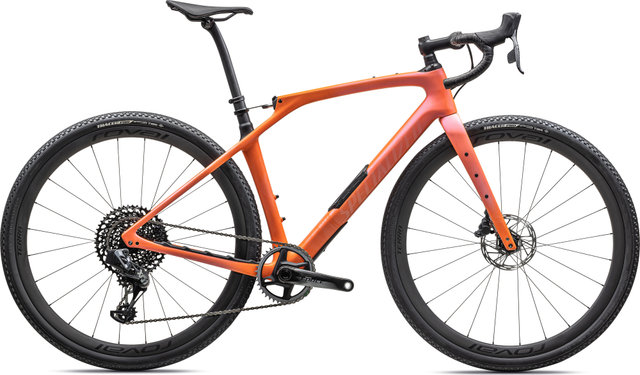

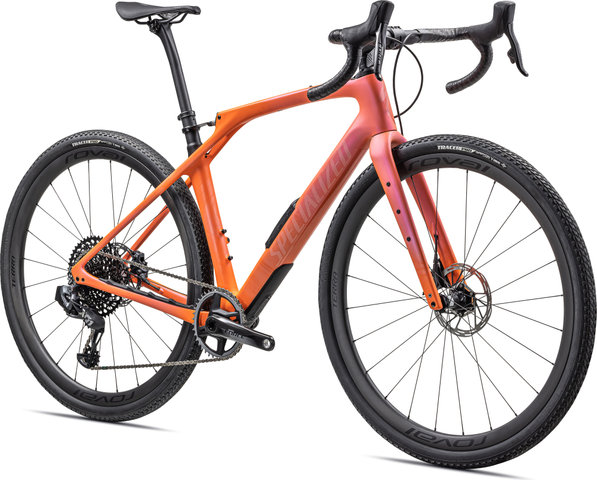

Specialized Diverge STR Pro Carbon 28" Gravel Bike

The Diverge STR Pro by Specialized is a gravel bike with innovative all-round suspension

The Specialized Diverge STR Pro is a carbon gravel bike with SRAM Force eTap electronic and X01/GX Eagle AXS 1x12-speed drivetrain and sophisticated suspension that doesn't sacrifice efficiency. Thanks to the STR (Suspend the Rider) front and rear suspension concept, you benefit from increased comfort while maintaining efficient forward movement. You are specifically protected from vibrations without the whole bike being affected, as would be the case with a full-suspension bike. STR is made up of two parts: at the rear, Future Shock Rear technology on the seat and top tubes gives you unprecedented comfort thanks to a sophisticated, low-maintenance damping system. At the front, Future Shock 2.0 technology, a coil-based damping hydraulic system in the head tube, absorbs bumps without sacrificing speed. The ride is noticeably smoother, which increases your confidence on difficult ground conditions and allows you to ride faster. The bike performs impressively in gravel races and on gravel adventures with its relatively low weight, speed and perfect handling. The geometry has not only been optimised for off-road use, but with its longer reach, flat head tube angle and greater fork offset, it also proves to be extremely modern, providing stability in all riding situations. Even wider tyres and 650B wheels are no problem. The Diverge STR also features numerous accessory mounts and even a SWAT™ opening on the down tube, which is usually reserved for Specialized mountain bikes. With this bike, you shift completely wirelessly, climb faster, keep control downhill and have lots of fun off of paved roads.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

Application:

Gravel

Wheel Size:

28"

Sizes:

49 cm, 52 cm, 54 cm, 56 cm, 58 cm, 61 cm

Frame Material:

carbon (11r)

Fork Material:

Carbon

Components:

Frame:

Specialized Diverge STR, IC093-1, FACT™ 11r Carbon, SWAT Technology, Future Shock full suspension system, Flat Mount Disc, 12 x 142 mm

Fork:

Specialized Diverge STR, FC073-1, Future Shock 2.0 with damping, FACT Carbon, Flat Mount Disc, 55 mm offset, 12 x 100 mm

Stem:

Specialized Future Pro

Handlebars:

Roval Terra, Carbon, 103 mm drop, 70 mm reach, 12° flare

Headset:

Specialized S192500009

Seatpost:

S-Works FACT Carbon, 27.2 mm, 20 mm setback

Saddle:

Specialized Body Geometry Power Pro, hollow titanium rails

Crank:

SRAM Force 1 Wide, Direct Mount, 40 T chainring, with SRAM DUB BSA 68 Wide bottom bracket

Pedals:

none

Brakes:

SRAM Red eTap AXS, hydraulic disc brake

Shift/Brake lever:

SRAM Force eTap AXS

Rear Derailleur:

SRAM X01 Eagle AXS

Cassette:

SRAM XG-1275 Eagle, 12-speed, 10-50 T

Chain:

SRAM GX Eagle, 12-speed

Wheels:

Roval Terra CL, 25 mm rim width, 32 mm rim depth, 24/24 holes, Tubeless Ready + DT for Roval 350 hubs, Center Lock Disc + DT Swiss Competition Race spokes

Tyres:

Specialized Tracer Pro, 2Bliss Ready, 700 x 42 mm

Approved For:

Weight Limit:

100 kg (frame post 1/8), 125 kg (frame post 2-7, 9) (rider + luggage)

Rotor Size (max.):

180 mm (front), 160 mm (rear)

Tyre Size (max.):

700 x 47C, 27.5 x 2.1"

Features:

• STR = Suspend the Rider
• Future Shock Rear System for comfort and safety on rough trails
• two frame posts, each with two degrees of hardness, included for custom adjustment
• geometry optimised for gravel
• Future-Shock 2.0 system for more comfort
• Smooth Boat Design for a clean transition from the head tube to the stem
• confidence and stability while riding in rough terrain
• dynamic steering thanks to rather short stem
• maximum tyre clearance
• lightweight frame weighs only 1.05 kg
• can be driven with 700C and 27.5" (650B) wheels
• numerous mounting points for bottle cages and bags
• SWAT opening in the down tube
• internal cable routing
• Supacaz Super Sticky Kush handlebar tape
• Diverge STR seatpost clamp made of 7075-T73 aluminium, 33.3 mm
• inner tubes with 48 mm Presta valve
• also suitable for dropper posts

Technology:

FACT™
FACT is an acronym for " Functional Advanced Composite Technology" and summarises all the know-how that Specialized has in the use of carbon fibre. It is a holistic approach, which primarily concerns the bike frames, but is found in many components such as handlebars, stems, saddles etc. The starting point is always the awareness for the needs of riders and the capability to fulfil them. Next, the selection of fibres, resins and fabric layers takes place; in this process the quality of the carbon and the arrangement of the fibre layers play an important role. It is important to find the right set-up for the project at hand and the intended location or rather the area of application. It is often necessary to differentiate from model to model at several points. In the final step, attention is paid to processing the material in a way that allows the desired advantages in terms of low weight, rigidity and stability to be achieved.

SWAT™
SWAT is the acronym for " Storage, Water, Air, Tools" and describes a whole range of solutions that Specialized offers for space-saving accessories. There are SWAT elements that are built into Specialized frames from the get-go, such as the opening below the bottle cage on certain mountain and gravel bikes. And there are SWAT components which can be retrofitted to any wheel, e.g. the Conceal Carry Tool or the EMT Cage Mount Tools for SWAT bottle cages. The aim is to always use an existing, unused space to carry accessories such as drinking bottles, inner tubes, tools or CO2 cartridges, while being within easy reach, in a safe space and without impairing the aerodynamics. This often results in backpacks or bags being out of the question and emergency solutions such as spare tubes tied to the frame are something that everyone wants to avoid.

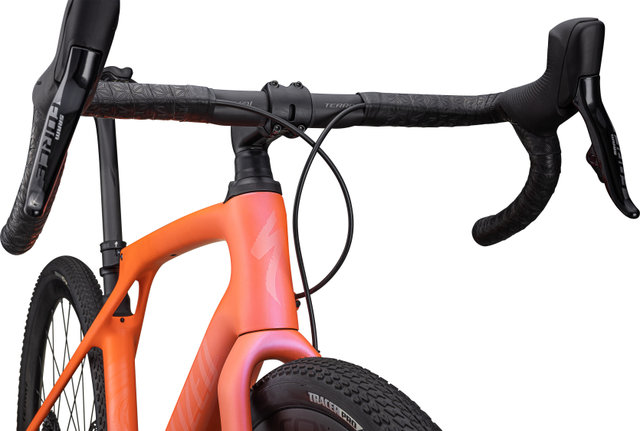

Future Shock 2.0
The Future Shock 2.0 System is an adjustable hydraulic damping system for road and gravel bikes developed by Specialized in collaboration with McLaren Applied Technologies. It is based on a cartridge with several springs, which is used in the head tube. When you ride over a bump in the road, it offers up to 20 mm of travel - in a vertical direction to be specific. This results in a shock-absorbing effect without - as would be the case with horizontal compliance - any loss of speed. You stay fast, but ride more comfortably, especially on long distances. Numb hands and tired arms are prevented, which in turn increases performance. Compared to suspension fork systems, Future Shock also has the advantage that the geometry of the wheel and thus the handling can remain unchanged.

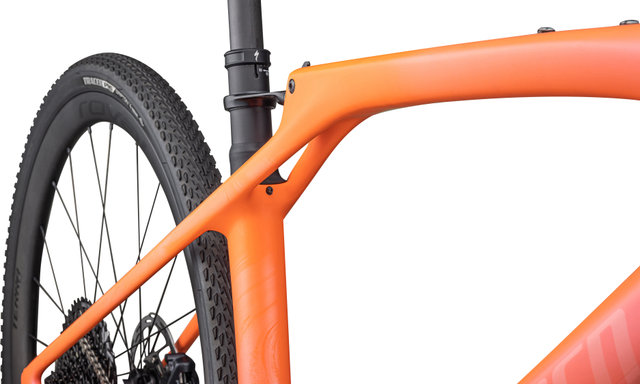

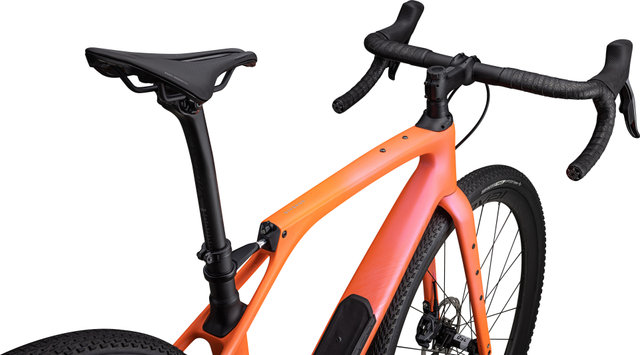

Future Shock Rear
The Future Shock Rear System refers to an adjustable rear suspension at the transition from top tube to seat tube. It essentially consists of a frame post on the seat tube that serves as a spring, a damper and a tensioning link as a connecting piece. If the ground is uneven, the frame post and seatpost move against the rear wheel movement and compensate for it. You benefit from up to 30 mm of travel and maintain your central riding position. The result is increased comfort and more safety with efficient propulsion at the same time. The oil shock is elegantly hidden in the top tube, where it is protected from dirt and requires no service. For optimisation on the fly, a three-position lever (soft, medium, hard) is available for compression. By turning the frame post by 90° you can also switch between a stiffer and a softer spring characteristic. For this you need a 4 mm and a 5 mm hex wrench. In addition, there are nine different frame posts with different degrees of hardness so that you can optimally adjust the suspension and damping to your body weight and riding style.

Information on Frame Posts:

• Frame Post 1: Hardness 30 / 38 N/mm, Recommended Rider Weight 50 - 70 kg
• Frame Post 2: Hardness 25 / 42 N/mm, Recommended Rider Weight 65 - 80 kg
• Frame Post 3: Hardness 40 / 48 N/mm, Recommended Rider Weight 70 - 85 kg
• Frame Post 4: Hardness 45 / 53 N/mm, Recommended Rider Weight 75 - 95 kg
• Frame Post 5: Hardness 50 / 58 N/mm, Recommended Rider Weight 85 - 100 kg
• Frame Post 6: Hardness 55 / 65 N/mm, Recommended Rider Weight 95 - 115 kg
• Frame Post 7: Hardness 60 / 72 N/mm, Recommended Rider Weight 105 - 125 kg
• Frame Post 8: Hardness 28 / 34 N/mm, Recommended Rider Weight 50 - 70 kg
• Frame Post 9: Hardness 40 / 49 N/mm, Recommended Rider Weight 75 - 125 kg

Geometry:

(based on a fork axle to crown length of 390 mm)
49 cm:

Recommended Height:

153 - 163 cm

Stack:

569 mm

Reach:

365 mm

Seat Tube Length:

390 mm

Effective Top Tube Length:

527 mm

Head Tube Length:

100 mm

Chainstay Length:

429 mm

Wheelbase:

1023 mm

Bottom Bracket Height:

270 mm

BB Drop:

80 mm

Seat Tube Angle:

74.5°

Head Tube Angle:

70°

Standover Height:

704 mm

Stem Length:

60 mm

Handlebar Width:

380 mm

Crank Arm Length:

165 mm

Saddle width:

155 mm

52 cm:

Recommended Height:

163 - 170 cm

Stack:

576 mm

Reach:

374 mm

Seat Tube Length:

430 mm

Effective Top Tube Length:

540 mm

Head Tube Length:

100 mm

Chainstay Length:

429 mm

Wheelbase:

1027 mm

Bottom Bracket Height:

265 mm

BB Drop:

85 mm

Seat Tube Angle:

74.25°

Head Tube Angle:

70.5°

Standover Height:

730 mm

Stem Length:

70 mm

Handlebar Width:

400 mm

Crank Arm Length:

170 mm

Saddle width:

155 mm

54 cm:

Recommended Height:

170 - 178 cm

Stack:

593 mm

Reach:

383 mm

Seat Tube Length:

470 mm

Effective Top Tube Length:

556 mm

Head Tube Length:

115 mm

Chainstay Length:

429 mm

Wheelbase:

1034 mm

Bottom Bracket Height:

265 mm

BB Drop:

85 mm

Seat Tube Angle:

74°

Head Tube Angle:

71.25°

Standover Height:

753 mm

Stem Length:

80 mm

Handlebar Width:

420 mm

Crank Arm Length:

172.5 mm

Saddle width:

143 mm

56 cm:

Recommended Height:

175 - 183 cm

Stack:

609 mm

Reach:

392 mm

Seat Tube Length:

500 mm

Effective Top Tube Length:

570 mm

Head Tube Length:

130 mm

Chainstay Length:

429 mm

Wheelbase:

1044 mm

Bottom Bracket Height:

265 mm

BB Drop:

85 mm

Seat Tube Angle:

74°

Head Tube Angle:

71.75°

Standover Height:

778 mm

Stem Length:

90 mm

Handlebar Width:

420 mm

Crank Arm Length:

172.5 mm

Saddle width:

143 mm

58 cm:

Recommended Height:

180 - 188 cm

Stack:

633 mm

Reach:

401 mm

Seat Tube Length:

530 mm

Effective Top Tube Length:

586 mm

Head Tube Length:

155 mm

Chainstay Length:

429 mm

Wheelbase:

1060 mm

Bottom Bracket Height:

265 mm

BB Drop:

85 mm

Seat Tube Angle:

74°

Head Tube Angle:

71.75°

Standover Height:

804 mm

Stem Length:

100 mm

Handlebar Width:

440 mm

Crank Arm Length:

175 mm

Saddle width:

143 mm

61 cm:

Recommended Height:

188 - 196 cm

Stack:

659 mm

Reach:

410 mm

Seat Tube Length:

560 mm

Effective Top Tube Length:

602 mm

Head Tube Length:

182 mm

Chainstay Length:

429 mm

Wheelbase:

1078 mm

Bottom Bracket Height:

265 mm

BB Drop:

85 mm

Seat Tube Angle:

74°

Head Tube Angle:

71.75°

Standover Height:

833 mm

Stem Length:

100 mm

Handlebar Width:

440 mm

Crank Arm Length:

175 mm

Saddle width:

143 mm

Models:

49 cm:

Frame Post Types Included:

8, 9

52 cm / 54 cm:

Frame Post Types Included:

1, 4

56 cm:

Frame Post Types Included:

2, 5

58 cm:

Frame Post Types Included:

3, 6

61 cm:

Frame Post Types Included:

4, 7

Manufacturer Number:

blaze-violet ghost pearl:

96223-10

Shipping Notice:

The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.

Contents:

• 1 x Specialized Diverge STR Pro Carbon 28" gravel bike
• 1 x Specialized frame post
