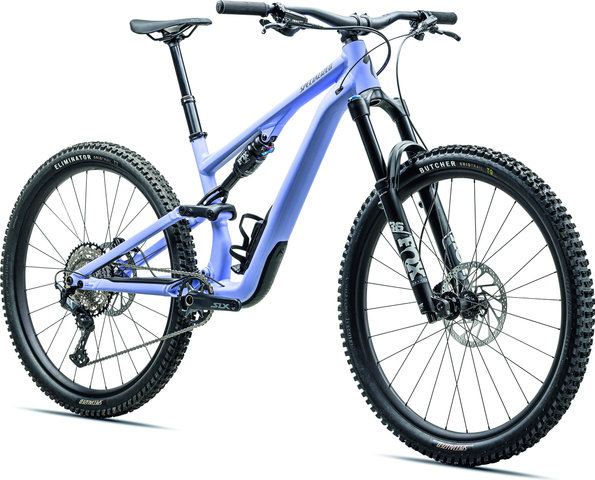

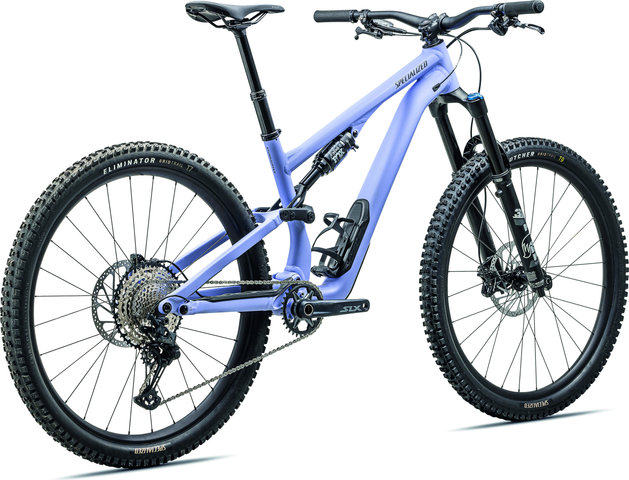

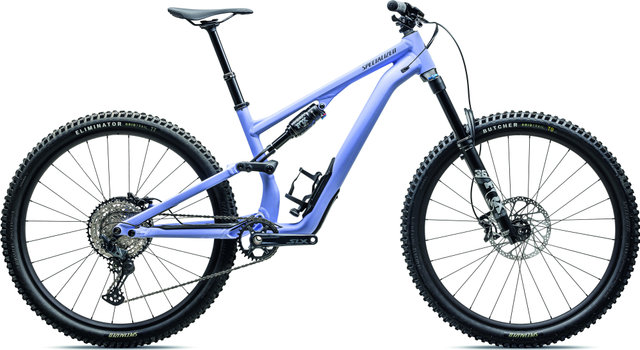

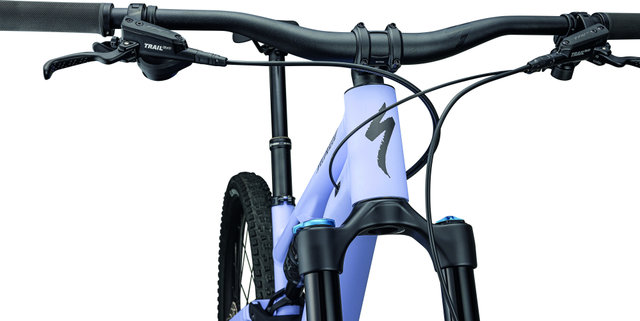

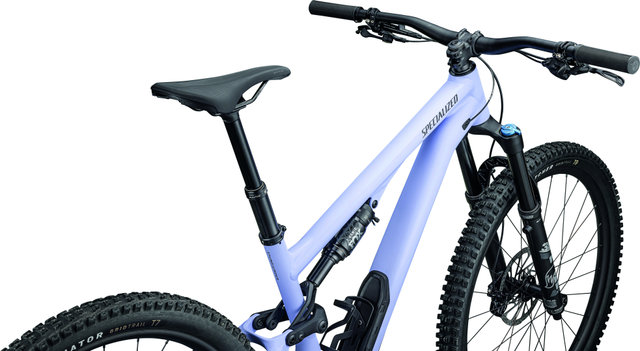

Specialized Stumpjumper 15 Comp Alloy Mountain Bike

Specifications:

Application:

All Mountain

Wheel Size:

29" / 27.5" (S2), 29" (S3 - S6)

Front Travel:

150 mm

Rear Travel:

145 mm

Sizes:

S2, S3, S4, S5, S6

Front Triangle Material:

aluminum

Rear Triangle Material:

aluminum

Components:

Frame:

Specialized Stumpjumper 15, 12 x 148 mm Boost

Fork:

Fox Racing Shox 36 Float GRIP Rhythm, 2 Position Sweep Adjustment, 44 mm Offset, 15 x 110 mm (Boost)

Stem:

Specialized Trail aluminum

Handlebars:

Specialized, aluminum, 6° Upsweep, 8° Backsweep, Rise: 20 mm (S2), 30 mm (S3 - S4), 40 mm (S5 - S6)

Grips:

Specialized Trail Lock-On

Rear Shock:

Fox Racing Shox Float Performance, Ride Dynamics Trail Tune, Low-speed Rebound Adjustment, 210 x 55 mm

Remote System:

none

Headset:

1 1/8" - 1.5"

Seatpost:

XFusion, Travel: 150 mm (S2), 170 mm (S3), 190 mm (S4 - S6), Remote: SLR LE Lever, 34.9mm

Saddle:

Specialized Bridge Comp, Steel Rails

Crank:

Shimano SLX M7120, 32T, Bottom Bracket: Shimano BB-MT801

Pedals:

none

Brakes:

TRP Trail-EVO, hydraulic, 4 pistons, Brake Discs: 203 mm (Front), 180 mm (S2) / 203 mm (S3 - S6) (Rear)

Shift Lever:

Shimano SLX, M 7100

Rear Derailleur:

Shimano SLX, M 7100, 12-speed

Cassette:

Shimano SLX, CS 7100, 10 - 51T, 12-speed

Chain:

Shimano SLX, M 7100

Rims:

Specialized, 28 Hole, Tubeless Ready, Inner Width: 30 mm

Front Hub:

Specialized, 15 x 110 mm (Boost)

Rear Hub:

Specialized, Shimano Micro Spline, 12 x 148 mm (Boost)

Spokes:

DT Swiss

Front Tyre:

Specialized Butcher Grid Trail T9, 29 x 2.3" Tubeless Ready

Rear Tyre:

Specialized Eliminator Grid Trail T7, S2: 27.5 x 2.3" , S3 - S6: 29 x 2.3" , Tubeless Ready

Approved For:

Weight Limit:

136 kg

Rotor Size (max.):

220 mm (Rear)

Tyre Size (max.):

29 x 2.4"

Chainring Size (max.):

1x 34 Teeth

Features:

• Newly developed M5 aluminum frame with integrated cable routing
• Suspension by Fox Racing Shox
• 12-speed Shimano drivetrain
• Steering/seat angle and bottom bracket height/lowering adjustable via flip-chip
• Head angle adjustable via rotating headset cups
• SWAT technology, integrated storage within the frame
• Standard tubes (Presta)
• Boost Standard
• 55 mm chainline
• UDH-compatible

Geometry:

S2:

Recommended Height:

157 - 173 cm

Stack:

618 mm

Reach:

425 mm

Seat Tube Length:

385 mm

Effective Top Tube Length:

573 mm

Head Tube Length:

100 mm

Chainstay Length:

432 mm

Wheelbase:

1181 mm

Bottom Bracket Height:

337 mm

BB Drop:

38 mm

Seat Tube Angle:

77°

Head Tube Angle:

64.5°

Standover Height:

751 mm

Stem Length:

40 mm

Handlebar Width:

780 mm

Crank Arm Length:

165 mm

S3:

Recommended Height:

165 - 180 cm

Stack:

627 mm

Reach:

450 mm

Seat Tube Length:

405 mm

Effective Top Tube Length:

595 mm

Head Tube Length:

110 mm

Chainstay Length:

435 mm

Wheelbase:

1213 mm

Bottom Bracket Height:

337 mm

BB Drop:

38 mm

Seat Tube Angle:

76.5°

Head Tube Angle:

64.5°

Standover Height:

745 mm

Stem Length:

40 mm

Handlebar Width:

800 mm

Crank Arm Length:

165 mm

S4:

Recommended Height:

173 - 188 cm

Stack:

640 mm

Reach:

475 mm

Seat Tube Length:

425 mm

Effective Top Tube Length:

620 mm

Head Tube Length:

125 mm

Chainstay Length:

432 mm

Wheelbase:

1247 mm

Bottom Bracket Height:

340 mm

BB Drop:

38 mm

Seat Tube Angle:

76.5°

Head Tube Angle:

64.5°

Standover Height:

745 mm

Stem Length:

40 mm

Handlebar Width:

800 mm

Crank Arm Length:

170 mm

S5:

Recommended Height:

178 - 193 cm

Stack:

654 mm

Reach:

500 mm

Seat Tube Length:

445 mm

Effective Top Tube Length:

647 mm

Head Tube Length:

140 mm

Chainstay Length:

445 mm

Wheelbase:

1285 mm

Bottom Bracket Height:

337 mm

BB Drop:

38 mm

Seat Tube Angle:

76.5°

Head Tube Angle:

64.5°

Standover Height:

745 mm

Stem Length:

40 mm

Handlebar Width:

800 mm

Crank Arm Length:

170 mm

S6:

Recommended Height:

188 - 203 cm

Stack:

667 mm

Reach:

530 mm

Seat Tube Length:

465 mm

Effective Top Tube Length:

677 mm

Head Tube Length:

155 mm

Chainstay Length:

445 mm

Wheelbase:

1322 mm

Bottom Bracket Height:

337 mm

BB Drop:

38 mm

Seat Tube Angle:

76.5°

Head Tube Angle:

64.5°

Standover Height:

751 mm

Stem Length:

40 mm

Handlebar Width:

800 mm

Crank Arm Length:

170 mm

Manufacturer Number:

93325-5404

Shipping Notice:

The shipment is sent pre-assembled by a forwarding agent.
The delivery time is, depending on the workshop workload, 2 - 5 days in addition to the delivery time shown in the online shop.
For individual consultation, please contact our customer service team.

Contents:

• 1 x Mountain Bike Specialized Stumpjumper 15 Comp Alloy
