Specialized Turbo Levo Comp Alloy 29" / 27.5" E-Mountain Bike Model 2025

Information regarding the return of batteries and electrical equipment:

You can find information on the return and disposal of used batteries, accumulators, and electrical equipment here. For information regarding the return of used e-bike batteries, please contact our customer service.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please note the guidelines for replacing components on CE-marked e-bikes / pedelecs with pedal assistance.

Specifications:

Application:

All Mountain

Wheel Size:

29" (front) / 27.5" (rear)

Front Travel:

160 mm

Rear Travel:

150 mm

Sizes:

S2, S3, S4, S5

Front Triangle Material:

aluminum (M5)

Rear Triangle Material:

aluminum

E-Motor:

Type:

mid-drive motor

Motor Type:

Specialized 2.2 Custom Rx Trail Tune, 90 Nm

Pedal Assist (max.):

25 km/h

Power:

565 W

Battery Type:

Specialized M3-700, fully integrated

Capacity:

700 Wh

Display:

Specialized MasterMind TCU color display, battery status in percent, Micro Tune, ANT+ / Bluetooth, with handlebar remote

Components:

Frame:

Specialized Levo, M5-Alloy, 12 x 148 mm (Boost)

Fork:

Fox Racing Shox 36 Rhythm, 15 x 110 mm (Boost)

Stem:

Specialized Trail, aluminum, 35 mm handlebar clamp

Handlebars:

Specialized, 6061 aluminum, 8° Backsweep, 6° Upsweep, Rise: 20 mm (S2), 30 mm (S3 - S5)

Grips:

Specialized Trail

Rear Shock:

Fox Racing Shox Float X Performance, LSR, 210 x 55 mm

Remote System:

none

Headset:

Specialized S182500005

Seatpost:

XFusion Manic, 34.9 mm, Travel: 125 mm (S2), 150 mm (S3), 170 mm (S4, S5), Remote: SLR LE

Saddle:

Specialized Bridge Comp, steel rails

Crank:

Praxis Works M30, SRAM X-Sync Eagle chainring, 32 T, 104 mm BCD

Pedals:

Specialized test ride pedals

Brakes:

SRAM Maven Bronze, hydraulic, Brake discs: 220 mm (front) / 200 mm (rear)

Shift Lever:

SRAM GX Eagle Trigger, 12-speed

Rear Derailleur:

SRAM X01 Eagle, 12-speed

Cassette:

SRAM XG-1275, 12-speed, 10 - 52 T

Chain:

SRAM GX Eagle, 12-speed

Rims:

Specialized 29, aluminum, 30 mm internal width, Hookless, Tubeless Ready

Spokes:

DT Swiss Industry

Front Hub:

Specialized, aluminum, sealed cartridge bearings, 15 x 110 mm, thru-axle, 28 hole

Rear Hub:

Specialized, aluminum, sealed cartridge bearings, 12 x 148 mm, thru-axle, 28 hole

Front Tyre:

Specialized Butcher Grid Trail T9, 2Bliss Ready, 29 x 2.6"

Rear Tyre:

Specialized Eliminator Grid Gravity T9/T7, 2Bliss Ready, 27.5 x 2.6"

Approved For:

Weight Limit:

136 kg (rider + luggage)

Rotor Size (max.):

220 mm (rear)

Tyre Size (max.):

27.5 x 2.6" / 29 x 2.6" (rear)

Chainrings:

1x

Chainring Size (max.):

1x 34 teeth

Features:

• E-trail bike made of aluminum with long range, natural riding feel, and adjustable geometry
• Powerful 90-Nm motor, support during the ride configurable in 10% steps
• Integrated battery with 700 Wh capacity for up to 5 hours of riding fun
• Fox suspension and SRAM GX/X01 Eagle 1x12-speed drivetrain
• High braking power thanks to hydraulic SRAM Maven Bronze disc brakes
• Mullet construction with 29-inch front wheel and 27.5-inch rear wheel, thus smooth-running but more maneuverable than pure 29-inch bikes
• Conversion to 29" rear wheel for more control while staying true to the geometry possible thanks to flip chips on the chainstays

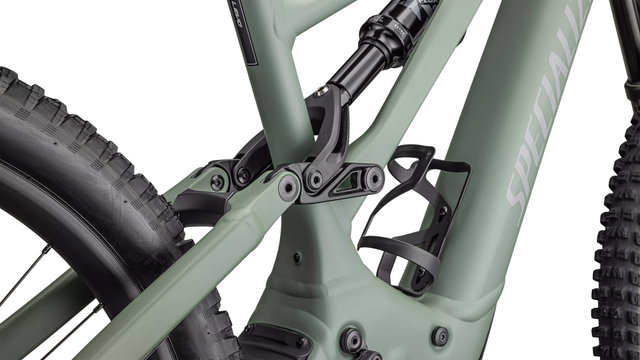

• Optimized linkage design with responsive, speed-dependent damping
• Adjustable Geometry: bottom bracket height high / low through Flip-Inserts at the shock, steering angle steep / medium / flat through exchangeable headset cups

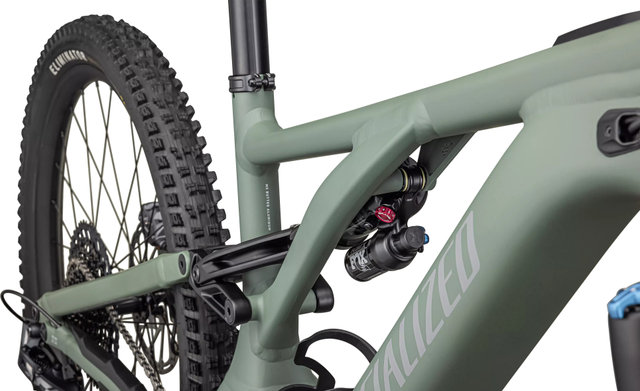

• Fox shock with Rx Tune: sophisticated suspension tuning for responsive riding behavior
• Modern, progressive geometry with short chainstays

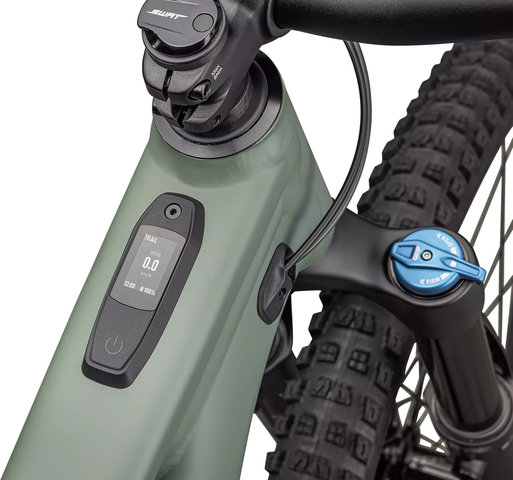

• Color display: the most important data and parameters during the ride at a glance
• Internal cable routing
• SRAM UDH universal derailleur hanger
• Range can be extended with optionally available range extender
• Includes SWAT-CC multitool, stored in the fork steerer

Technology:

S-Sizing
S-Sizing means a frame size classification that not only takes your inner leg length into account, but also your riding characteristics. Moreover, Specialized works here with the so-called Sidearm Design, an asymmetric shock mount, which contributes to the stiffness and agility of the bike without increasing the weight. The Turbo Levo 3.0 shares geometry adjustability with the Stumpjumper EVO. Through headset cups, the steering angle can be varied and through a Horst-Link flip chip, the bottom bracket can be raised or lowered, so that practically six different geometries are available. This way you can ensure that the set-up fits exactly to your preferences as a rider, and also suits your riding style.

Micro Tune
The remote button can be used to increase motor support and peak power in 10% increments. This results in smaller jumps than if you were to change the mode, e.g., from Trail to Turbo. This gives you certain advantages when riding in groups, as it allows you to adapt better. In addition, fine adjustments save battery power and thus increase your riding range.

E-Bikes by Specialized
The E-Bikes by Specialized are designed in California and developed with Swiss technology. They follow the approach " It's you, only faster" , which means that you feel as if you are riding a " normal" bike without motor assistance, but you actually have at least twice as much power. Specialized e-bikes are characterized by a particularly quiet, smooth-running electric drive. Thanks to two special freehub bodies, the crankset and motor shaft are decoupled from each other in such a way that no additional pedaling resistance occurs when the motor is switched off (at speeds above 25 km/h). The battery of Specialized electric bikes is aesthetically and well protected integrated into the down tube. An innovative Battery Management System (BMS) is used to maximize battery life and protect the cell structure. The bike communicates with the rider via the so-called Turbo Connect Unit (TCU), which can be connected to a Turbo Connect Display, devices from third-party manufacturers, and/or the Specialized Mission Control App via Bluetooth and ANT+. This offers additional options such as route planning, route recording, or automatic capacity management.

Geometry:

(based on a fork axle-to-crown length of 567 mm, high bottom bracket height, and medium head tube angle)
S2:

Recommended Height:

157 - 173 cm

Stack:

617 mm

Reach:

432 mm

Seat Tube Length:

390 mm

Head Tube Length:

105 mm

Chainstay Length:

442 mm

Wheelbase:

1200 mm

Bottom Bracket Height:

350 mm

BB Drop:

27 mm

Seat Tube Angle:

77.2°

Head Tube Angle:

64.5°

Standover Height:

776 mm

Stem Length:

40 mm

Handlebar Width:

800 mm

Crank Arm Length:

160.0 mm

Saddle width:

155 mm

S3:

Recommended Height:

165 - 180 cm

Stack:

626 mm

Reach:

452 mm

Seat Tube Length:

405 mm

Head Tube Length:

115 mm

Chainstay Length:

442 mm

Wheelbase:

1225 mm

Bottom Bracket Height:

350 mm

BB Drop:

27 mm

Seat Tube Angle:

76.7°

Head Tube Angle:

64.5°

Standover Height:

783 mm

Stem Length:

40 mm

Handlebar Width:

800 mm

Crank Arm Length:

160.0 mm

Saddle width:

143 mm

S4:

Recommended Height:

173 - 188 cm

Stack:

635 mm

Reach:

477 mm

Seat Tube Length:

425 mm

Head Tube Length:

125 mm

Chainstay Length:

442 mm

Wheelbase:

1255 mm

Bottom Bracket Height:

350 mm

BB Drop:

27 mm

Seat Tube Angle:

76.2°

Head Tube Angle:

64.5°

Standover Height:

787 mm

Stem Length:

40 mm

Handlebar Width:

800 mm

Crank Arm Length:

160.0 mm

Saddle width:

143 mm

S5:

Recommended Height:

178 - 193 cm

Stack:

644 mm

Reach:

502 mm

Seat Tube Length:

445 mm

Head Tube Length:

135 mm

Chainstay Length:

442 mm

Wheelbase:

1284 mm

Bottom Bracket Height:

350 mm

BB Drop:

27 mm

Seat Tube Angle:

76.2°

Head Tube Angle:

64.5°

Standover Height:

788 mm

Stem Length:

40 mm

Handlebar Width:

800 mm

Crank Arm Length:

160.0 mm

Saddle width:

143 mm

Manufacturer Number:

95225-64

Shipping Notice:

The shipment is sent pre-assembled by a forwarding agent.
The delivery time is, depending on the workshop workload, 2 - 5 days in addition to the delivery time shown in the online shop.
For individual consultation, please contact our customer service team.

Contents:

• 1 x Specialized Turbo Levo Comp Alloy 29" / 27.5" E-Mountain Bike
