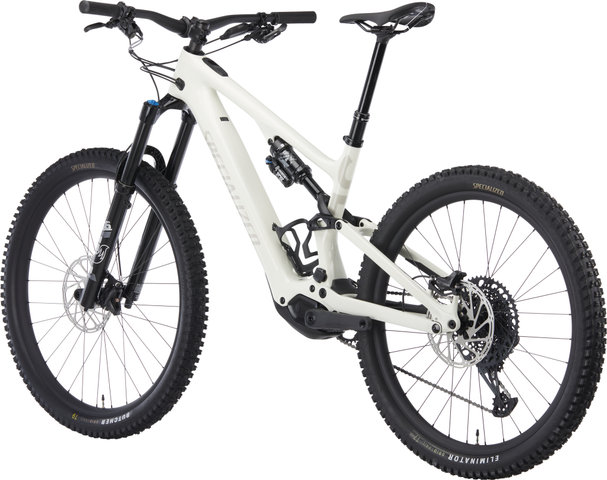

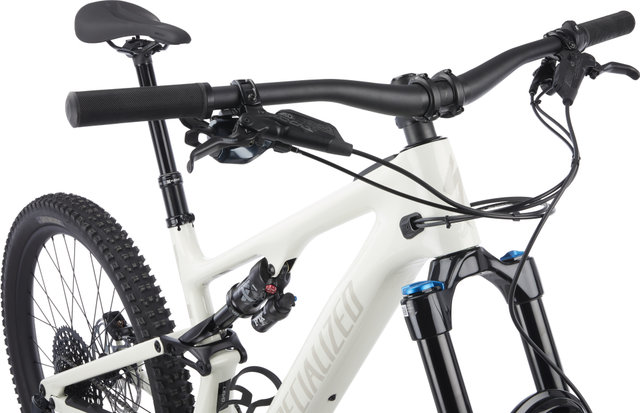

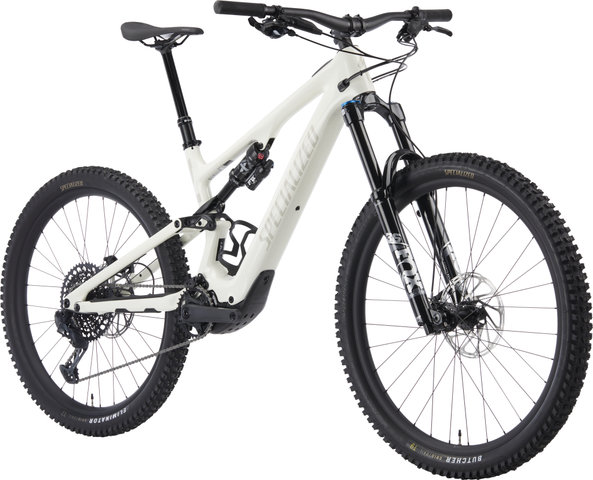

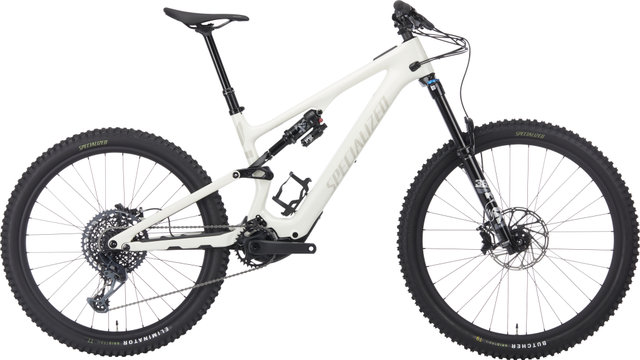

Specialized Turbo Levo SL Comp carbon 29" / 27.5" E-Mountainbike

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries, accumulators, and electrical equipment can be found here. For information regarding the return of used e-bike batteries, please contact our customer service.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please note the guidelines for component replacement on CE-marked e-bikes / pedelecs with pedal assist.

Specifications:

Application:

All Mountain

Wheel Size:

Scaled Sizing

Front Travel:

150 mm (S1), 160 mm (S2 - S6)

Rear Travel:

144 mm (S1), 150 mm (S2 - S6)

Sizes:

S1, S2, S3, S4, S5, S6

Front Triangle Material:

carbon (11m)

Rear Triangle Material:

carbon (11m)

E-Motor:

Type:

mid-drive motor

Motor Type:

Specialized 1.2 SL Custom Rx Trail Tune, 50 Nm

Pedal Assist (max.):

25 km/h

Power:

320 W (peak), 250 W (nominal)

Battery Type:

Specialized SL 1-320, fully integrated, 48 V

Capacity:

320 Wh

Display:

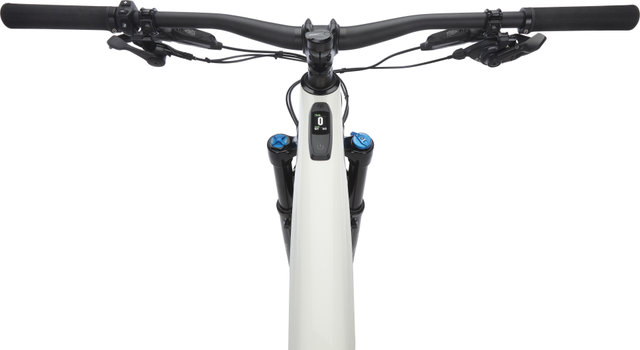

Specialized MasterMind TCU color display, battery status in percent, Micro Tune, ANT+ / Bluetooth, with handlebar remote

Components:

Frame:

Specialized Levo SL, FACT 11m carbon, Monocoque construction, aluminum shock mounts, adjustable head tube angle and bottom bracket height, compatible with 27.5" or 29" wheels, 12 x 148 mm (Boost)

Fork:

Fox Racing Shox 36 Rhythm, GRIP damper, Standard Tune, 15 x 110 mm (Boost)

Stem:

Specialized Trail, aluminum, 35 mm handlebar clamp

Handlebars:

Specialized, 6061 aluminum, 8° Backsweep, 6° Upsweep, 30 mm Rise

Grips:

Specialized Trail Grips

Rear Shock:

Fox Racing Shox Float DPS Performance Elite, 210 x 50 mm (S1), Fox Racing Shox Float X Performance Elite, 210 x 55 mm (S2 - S6), Rx Trail Tune

Remote System:

none

Headset:

Specialized S182500005

Seatpost:

X-Fusion Manic, 2-bolt clamp, internal cable routing, with SLR LE Remote, 34.9 mm diameter, Travel: 100 mm (S1), 125 mm (S2), 150 mm (S3), 170 mm (S4, S5), 190 mm (S6)

Saddle:

Specialized Bridge Comp, hollow CrMo steel rails

Crank:

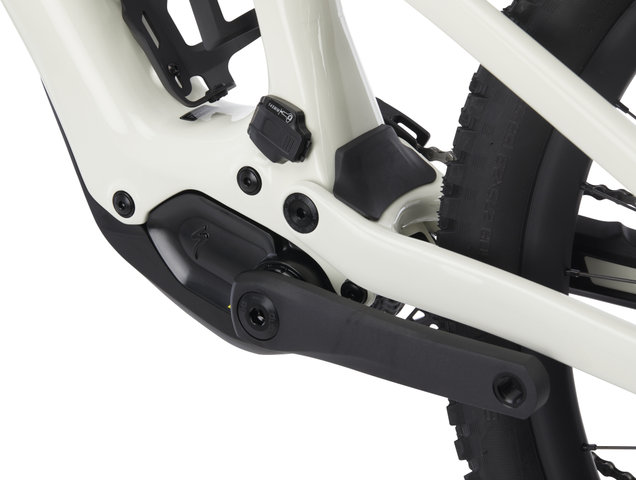

SRAM FC S699 MHL Gen2 Wide aluminum, DUB

Pedals:

none

Brakes:

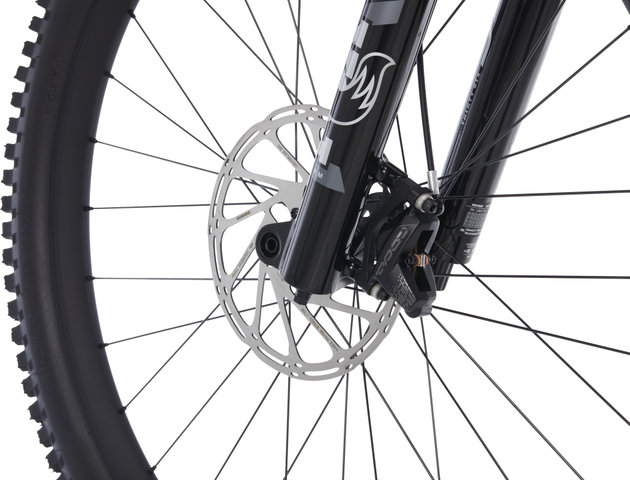

SRAM Code RS, 4 piston, hydraulic disc brake, with 200 mm brake rotor (front/rear)

Shift Lever:

SRAM GX Trigger, 12-speed

Rear Derailleur:

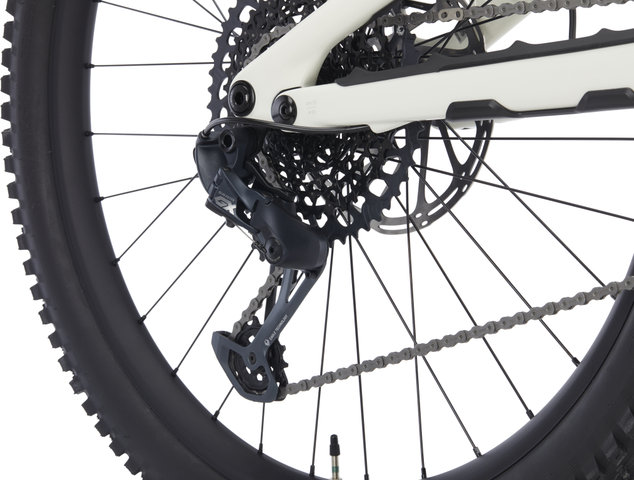

SRAM GX Eagle, 12-speed

Cassette:

SRAM XG-1275, 12-speed, 10-52 t

Chain:

SRAM NX Eagle, 12-speed

Rims:

Specialized, aluminum, 30 mm inner width, Hookless, Tubeless Ready

Spokes:

DT Swiss Industry

Front Hub:

aluminum, sealed cartridge bearings, 15 x 110 mm, thru-axle, 28 hole

Rear Hub:

aluminum, sealed cartridge bearings, 12 x 148 mm, thru-axle, 28 hole

Front Tyre:

Specialized Butcher, Grid Trail casing, GRIPTON T9 rubber compound, 2Bliss Ready, 29 x 2.3"

Rear Tyre:

Specialized Eliminator, Grid-Trail carcass, GRIPTON-T7 rubber compound, 2Bliss Ready, 27.5 x 2.3"

Approved For:

Weight Limit:

125 kg (Rider + Luggage)

Rotor Size (max.):

220 mm (rear)

Tyre Size (max.):

27.5 x 2.6" / 29 x 2.6" (rear)

Chainrings:

1x

Chainring Size (max.):

1x 34 teeth

Features:

• lightweight E-Trailbike made of carbon with a natural riding feel and adjustable geometry
• Fox Racing Shox suspension and SRAM GX Eagle 1x12-speed drivetrain
• high braking power thanks to hydraulic SRAM Code RS disc brake
• mullet construction with 29-inch front wheel and 27.5-inch rear wheel, thus smooth-running but more manoeuvrable than pure 29-inch bikes
• conversion to 29" rear wheel for more control while staying true to the geometry possible thanks to flip chips on the chainstays
• optimised linkage design with responsive, speed-dependent damping
• adjustable Geometry: bottom bracket height high / low by flip inserts at the shock, head tube angle steep / medium / flat by interchangeable headset cups
• Fox shock with Rx Tune: sophisticated suspension tuning for responsive riding
• modern, progressive geometry with short chainstays
• Color display: key data and parameters visible while riding
• 50-Nm motor doubles your power, support during riding configurable in 10%-steps
• motor more powerful and 40% quieter than the previous model
• internal cable routing
• SRAM UDH universal derailleur hanger
• range can be extended with optionally available range extender
• with SWAT-CC multitool, stored in fork steerer
• aluminum seat clamp, 38.6 mm

Technology:

FACT
FACT stands for " Functional Advanced Composite Technology" and summarises all the know-how that Specialized has in the use of carbon fibre. It's a holistic approach, primarily involving frames, but also found in many components such as handlebars, stems, saddles, etc. The starting point is always understanding the needs of riders and the ability to meet them. Next, the selection of fibres, resins and fabric layers occurs; the quality of the carbon and the arrangement of the fibre layers play a crucial role. It's essential to find the right set-up for the given project and intended use. Often, it is necessary to differentiate between models at several points. In the final step, attention is paid to processing the material in a way that allows the desired advantages in terms of low weight, rigidity, and stability to be achieved.

S-Sizing
S-Sizing means a frame size classification that not only considers your inner leg length but also your riding characteristics. Moreover, Specialized utilizes what's known as the Sidearm design, an asymmetrical shock mount that contributes to the bike's stiffness and manoeuvrability without increasing weight. The Turbo Levo 3.0 shares geometry adjustability with the Stumpjumper EVO. The head tube angle can be varied through headset cups, and the bottom bracket can be raised or lowered using a Horst-Link flip chip, providing practically six different geometries to choose from. This way, you can ensure that the set-up exactly fits your preferences as a rider and suits your riding style.

Micro Tune
The remote button can be used to increase motor support and peak power in 10% increments. This results in smaller jumps than, for example, changing the mode from Trail to Turbo. This gives you certain advantages when riding in groups, as it allows you to better adapt. In addition, fine adjustments save battery power and thereby increase your riding range.

E-Bikes by Specialized
E-bikes by Specialized are designed in California and developed with Swiss technology. They follow the approach “It’s you, only faster,” which means that it feels like riding a “normal” bike without motor assistance, but you have at least twice as much power. Specialized e-bikes are characterised by a particularly quiet, smooth running electric drive. Thanks to two special freewheel bodies, the crankset and motor shaft are decoupled from each other in such a way that no additional pedalling resistance occurs when the motor is switched off (at speeds above 25 km/h). The battery of Specialized electric bikes is aesthetically and well-protected integrated into the down tube. An innovative Battery Management System (BMS) is used to maximize battery life and protect the cell structure. The bike communicates with the rider via the so-called Turbo Connect Unit (TCU), which can be connected to a Turbo Connect Display, third-party devices, and/or the Specialized Mission Control App via Bluetooth and ANT+. This offers additional options such as route planning, ride recording, or automatic capacity management.

Geometry:

(based on a fork axle to crown length of 560 mm (S1) / 570 mm (S2 - S6), low bottom bracket height and medium head tube angle)
S1:

Recommended Height:

150 - 160 cm

Stack:

609 mm

Reach:

405 mm

Seat Tube Length:

385 mm

Effective Top Tube Length:

560 mm

Head Tube Length:

95 mm

Chainstay Length:

433 mm

Wheelbase:

1158 mm

Bottom Bracket Height:

343 mm

BB Drop:

34 mm

Seat Tube Angle:

75.8°

Head Tube Angle:

64.6°

Standover Height:

727 mm

Stem Length:

40 mm

Handlebar Width:

780 mm

Crank Arm Length:

165.0 mm

Saddle width:

155 mm

S2:

Recommended Height:

157 - 173 cm

Stack:

617 mm

Reach:

425 mm

Seat Tube Length:

385 mm

Effective Top Tube Length:

582 mm

Head Tube Length:

100 mm

Chainstay Length:

432 mm

Wheelbase:

1184 mm

Bottom Bracket Height:

348 mm

BB Drop:

29 mm

Seat Tube Angle:

75.8°

Head Tube Angle:

64.6°

Standover Height:

763 mm

Stem Length:

40 mm

Handlebar Width:

780 mm

Crank Arm Length:

165.0 mm

Saddle width:

155 mm

S3:

Recommended Height:

165 - 180 cm

Stack:

626 mm

Reach:

445 mm

Seat Tube Length:

405 mm

Effective Top Tube Length:

604 mm

Head Tube Length:

110 mm

Chainstay Length:

432 mm

Wheelbase:

1208 mm

Bottom Bracket Height:

348 mm

BB Drop:

29 mm

Seat Tube Angle:

75.8°

Head Tube Angle:

64.6°

Standover Height:

766 mm

Stem Length:

40 mm

Handlebar Width:

780 mm

Crank Arm Length:

170.0 mm

Saddle width:

143 mm

S4:

Recommended Height:

173 - 188 cm

Stack:

635 mm

Reach:

470 mm

Seat Tube Length:

425 mm

Effective Top Tube Length:

631 mm

Head Tube Length:

120 mm

Chainstay Length:

432 mm

Wheelbase:

1238 mm

Bottom Bracket Height:

348 mm

BB Drop:

29 mm

Seat Tube Angle:

75.8°

Head Tube Angle:

64.6°

Standover Height:

767 mm

Stem Length:

40 mm

Handlebar Width:

780 mm

Crank Arm Length:

170.0 mm

Saddle width:

143 mm

S5:

Recommended Height:

178 - 193 cm

Stack:

645 mm

Reach:

495 mm

Seat Tube Length:

445 mm

Effective Top Tube Length:

659 mm

Head Tube Length:

130 mm

Chainstay Length:

432 mm

Wheelbase:

1267 mm

Bottom Bracket Height:

348 mm

BB Drop:

29 mm

Seat Tube Angle:

75.8°

Head Tube Angle:

64.6°

Standover Height:

773 mm

Stem Length:

50 mm

Handlebar Width:

780 mm

Crank Arm Length:

170.0 mm

Saddle width:

143 mm

S6:

Recommended Height:

188 - 203 cm

Stack:

654 mm

Reach:

525 mm

Seat Tube Length:

465 mm

Effective Top Tube Length:

691 mm

Head Tube Length:

140 mm

Chainstay Length:

432 mm

Wheelbase:

1301 mm

Bottom Bracket Height:

348 mm

BB Drop:

29 mm

Seat Tube Angle:

75.8°

Head Tube Angle:

64.6°

Standover Height:

778 mm

Stem Length:

50 mm

Handlebar Width:

780 mm

Crank Arm Length:

175.0 mm

Saddle width:

143 mm

Manufacturer Number:

birch-white mountains:

96824-55

Shipping Notice:

The shipment is sent pre-assembled by a forwarding agent.
The delivery time is, depending on the workshop workload, 2 - 5 days in addition to the delivery time shown in the online shop.
For individual consultation, please contact our customer service team.

Contents:

• 1 x Specialized Turbo Levo SL Comp carbon 29" E-Mountain Bike
