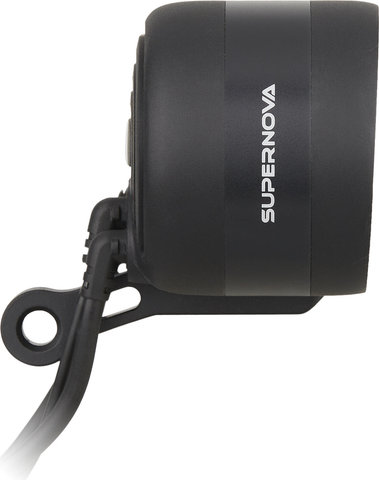

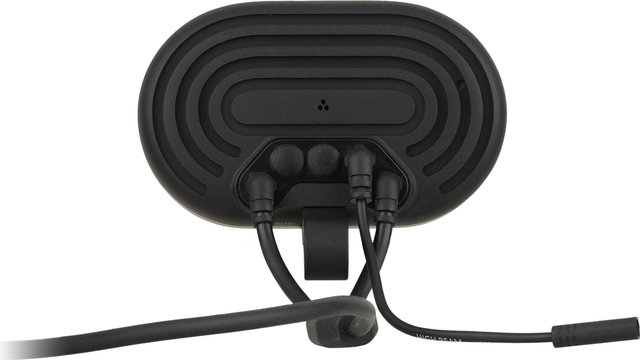

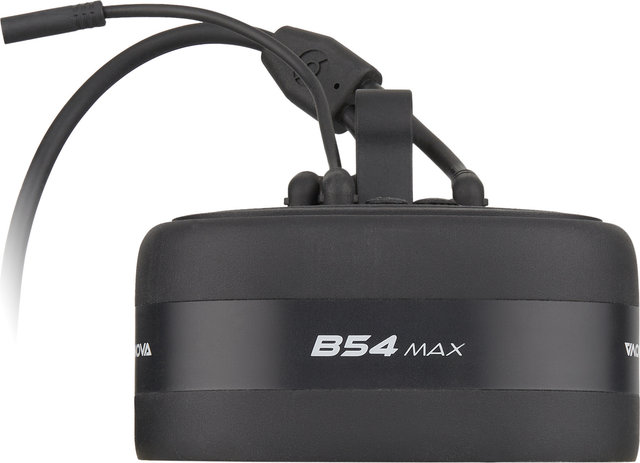

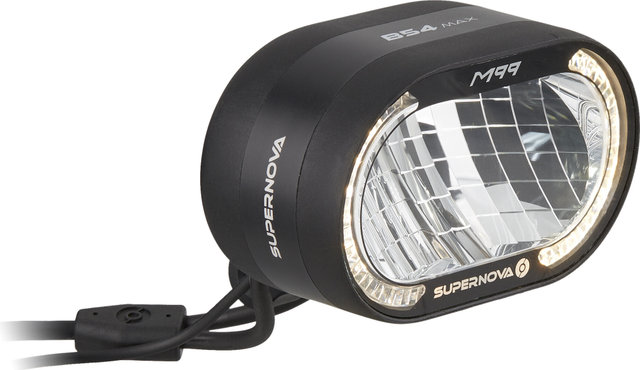

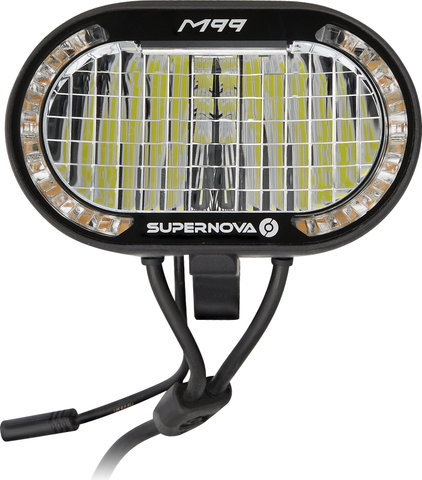

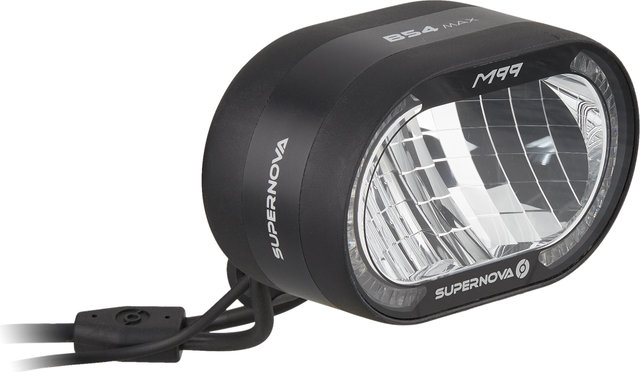

Supernova B54 MAX Front Light - StVZO approved

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

Type:

front light (white)

Mount:

handlebars

Light Source:

LED

Brightness:

3000 lumen, 450 lux (high beam MAX), 2450 lumen, 350 lux (high beam POWER), 200 lumen, 300 lux (high beam standard), 1500 lumen, 200 lux (high beam ECO2), 900 lumen, 140 lux (high beam ECO1), 500 lumen, 130 lux (low beam standard), 280 lumen, 70 lux (low beam ECO2), 80 lumen, 25 lux (low beam ECO1), 100 lumen, 25 lux (daytime running mode)

Burn Time:

50 hours (low beam ECO), 1.6 hours (high beam MAX)

Power Source:

battery (lithium-ion)

Technical Information:

Illumination Modes:

High beam MAX / POWER / Standard / ECO 1 / ECO 2, Low beam Standard / ECO1 / ECO2 / Daytime running mode

Voltage:

10.9 V DC

Power Indicator:

Yes, on the battery, or more precisely in the app or on a paired Garmin Edge

Charge Time:

with 1A charger: 5 hours to 100%, 3.5 hours to 80%, with 2A charger: 3.5 hours to 100%, 1.5 hours to 80%

Dimensions (H x W x D):

52 x 85 x 42 mm (front light), 50 x 46 x 97.6 mm (battery)

Cable Length:

212 mm (high beam switch)

Material:

aluminium (headlight), carbon (battery)

Standing Light:

yes (can be turned off)

Switch:

automatic (sensor), on/off switch on the battery, high beam switch, control via app

Approved For:

Street Use in Germany:

yes, for bicycles (according to §67 StVZO)

Check Number:

K~~2197

Features:

• 2 hours additional light (low beam ECO1) after complete battery discharge

Manufacturer Number:

W-B54MAX-MBLK

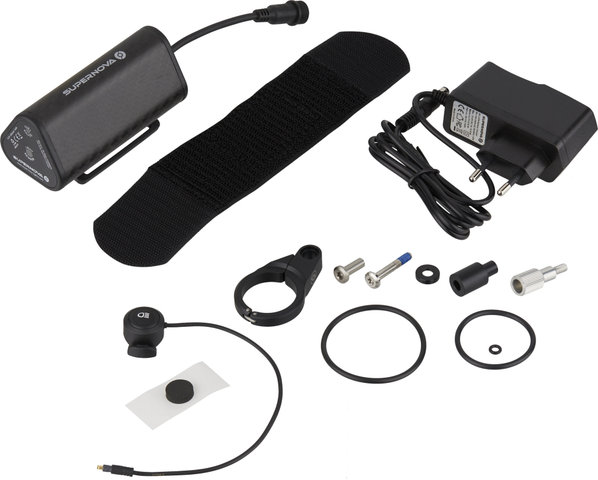

Contents:

• 1 x Supernova B54 MAX front light

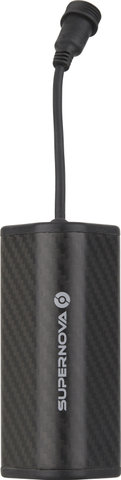

• 1 x Supernova B54 battery pack
• 1 x Supernova Universal HBM 31.8 mm bracket
• 1 x Supernova high beam switch
• 1 x Supernova USH22-32 switch holder
• 1 x Supernova B54-1A Charger with EU plug
• 1 x small clamping ring for switch holder
• 1 x large clamping ring for switch holder
• 1 x knurled screw for Universal HBM holder, with O-ring
• 1 x hook and loop fasteners
• 1 x self-adhesive foam pad for high beam switch
