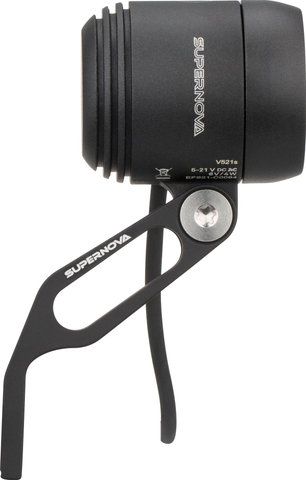

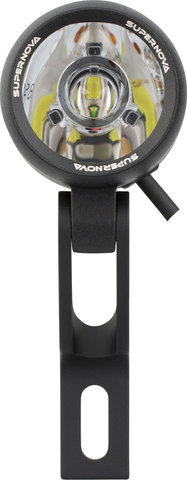

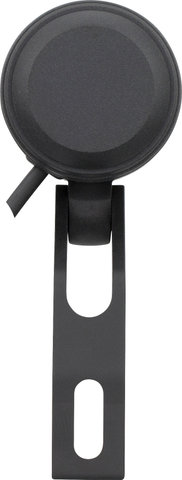

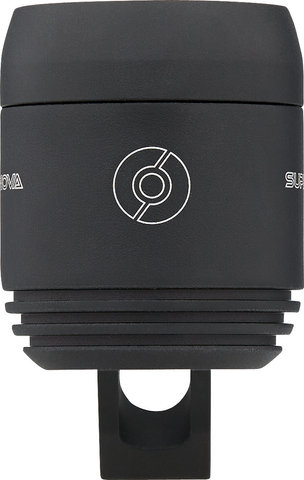

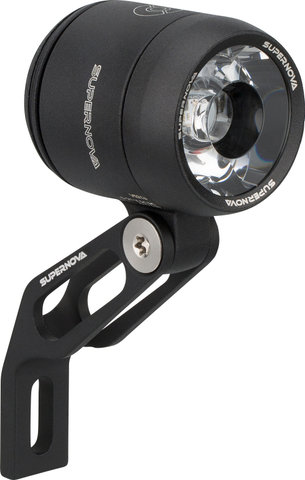

Supernova E3 E-Bike V521S LED Front Light - StVZO Approved

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked E-bikes/pedelecs with pedal assistance.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

Type:

front light (white)

Mount:

fork crown

Light Source:

1 Terraflux4 lens

Brightness:

235 lumen, 100 lux

Power Source:

E-bike battery

Technical Information:

Illumination Modes:

low beam, integrated daytime running light

Voltage:

5-21 V

Dimensions (HxWxD):

41 mm x 49 mm x 41 mm

Cable Length:

1300 mm

Material:

aluminium

Switch:

Operable via display

Approved For:

Street Use in Germany:

yes, for bicycles (according to §67 StVZO)

Check Number:

K~~1371

Compatibility:

• BionX
• Bosch Gen. 4 (CX), 12 V, 18 W
• Bosch Gen. 2 (Performance Line HS), 6 V, 12 W
• Bosch Gen. 2 (Performance Line CX, Active Line), 12 V, 18 W
• Bosch Gen. 1 (Classic Line), 6 V, 3 W
• Brose (C16162, C91143, C79232, 97292), 6 V, 7.2 W
• Brose (C97272), 6 V, 14.6 W
• Brose (Drive T, SF, S, C), 12.5 V, 27.5 W
• Continental 36, 6 V, 9 W
• Continental 48 (Gen. 1 Prime, Revolution), 6 V, 12 W
• Daum Impulse
• Neodrives (UR-V5, UR-V7, UR-V8 Integrale, Supercore, Z20 RS)
• Panasonic (GX 0)
• Sachs (RS)
• Shimano (Steps E6000, E7000, E8000)
• Specialized (Turbo Vado, CREO SL)
• SR Suntour (45 km/h)
• TQ HPR® 120S
• Yamaha (X78 45 km/h W DC/DC 6V)
• Yamaha (PW-SE)

Features:

• front light for mounting on the bicycle fork
• compatible with most E-bike drivetrains thanks to soft start function and 5-21 V DC input voltage
• Terraflux4 lens for good and even illumination

Technology:

Terraflux4 lens The Terraflux lens is a milestone in optics development. For a lens of this size, it produces outstandingly bright and uniform illumination on the road and good ambient lighting above the cut-off line. With the Terraflux lens you will be noticed without dazzling oncoming traffic. Thanks to a sophisticated light control system, the Terraflux lens directs 90 % of the light where it is needed most: on the road. There it forms a broad and even blanket of light that extends from the front wheel to far away. The permanent daytime running light incorporated into the lens ensures that the rider is also very well visible in traffic during the day. At night, this light component is used for excellent ambient lighting and warns of low-hanging branches on the trail.

Manufacturer Number:

U-V521S-MBLK

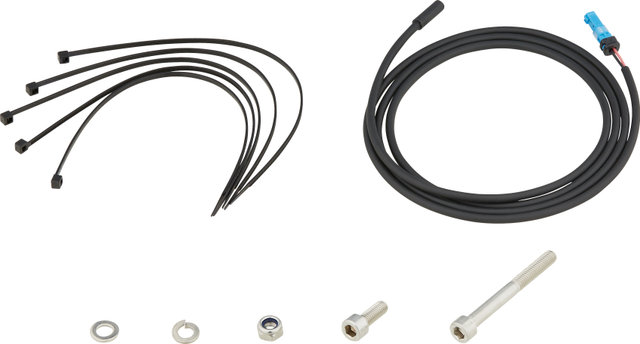

Contents:

• 1 x Supernova E3 E-Bike V521S LED front light
• 1 x Supernova HSOP mount
• 1 x BOSCH Power Connector Cable
• 2 x bolts
• 2 x washers
• 1 x nuts
• 5 x cable ties
