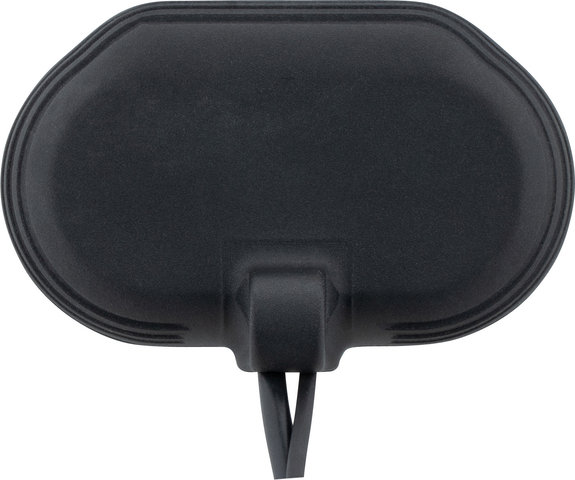

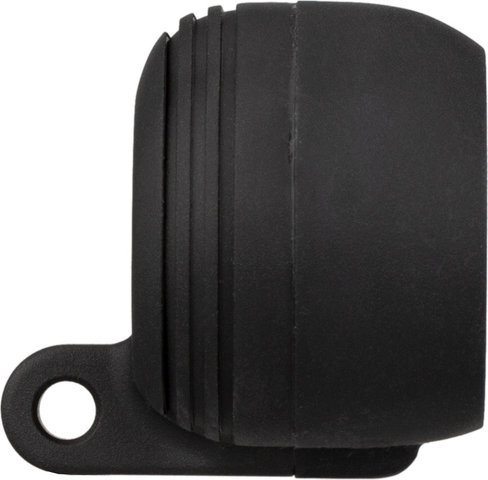

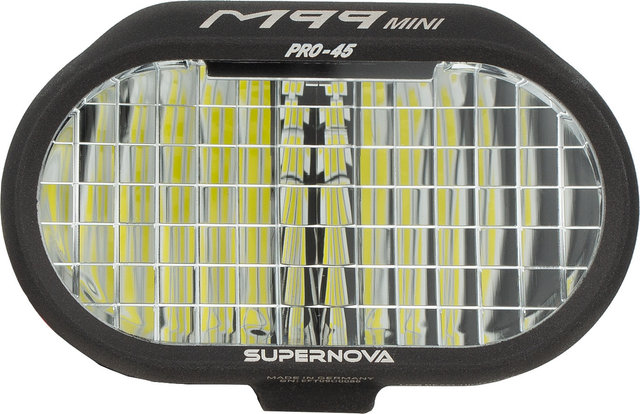

Supernova M99 Mini PRO 45 LED E-Bike Front Light with StVZO Approval

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

Type:

front light (white)

Mount:

stem

Light Source:

9 LEDs

Brightness:

700 lumen, 250 lux (low beam), 1300 lumen, 270 lux (high beam)

Illumination Range:

380 meters (high beam)

Power Source:

E-bike battery

Technical Information:

Illumination Modes:

Low beam, high beam

Voltage:

12 volt

Protection Rating:

dustproof, protection against temporary submersion (IP 67)

Dimensions (HxWxD):

50.7 mm x 78.5 mm x 38.3 mm

Cable Length:

1450 mm

Material:

aluminium

Approved For:

Street Use in Germany:

yes, for e-bikes and s-pedelecs (§50 StVZO)

Check Number:

ECE 113C 4859

Compatibility:

• BionX, 12 V, 18 W
• Bosch Gen4 (CX) 12 V, 18 W Smart System
• Bosch Gen4 (CX), 12 V, 18 W (connector cable included)
• Bosch Gen2 (Performance Line HS, Performance Line CX, Active Line) (connector cable included)
• Brose (Drive T, SF, S, C), 12.5 V, 27.5 W
• Continental 48, 12 V, 24 W
• Neodrives (UR-V5, UR-V8 Integral, Supercore, Z20 RS)
• Panasonic (GX 0)
• Sachs (RS)
• Shimano (Steps E7000)
• Specialized (Turbo Vado, CREO SL)
• TQ HR® 120S

Features:

• front light with high beam function for e-bikes up to 45 km/h
• high beam shines over 300 meters
• shatterproof lens
• LED dimming controlled by sensor

Manufacturer Number:

U-M99MIPC-E-MBLK

Contents:

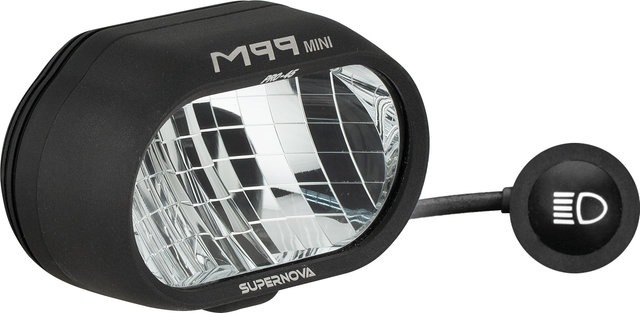

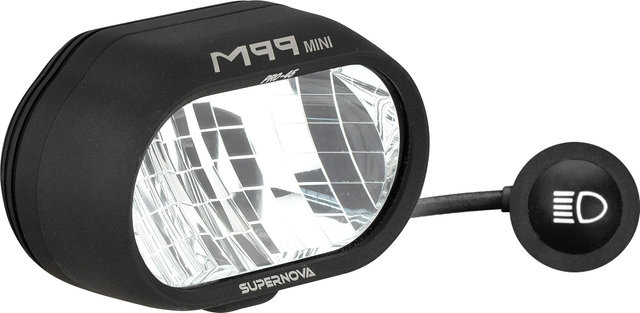

• 1 x Supernova M99 Mini PRO e-bike front light

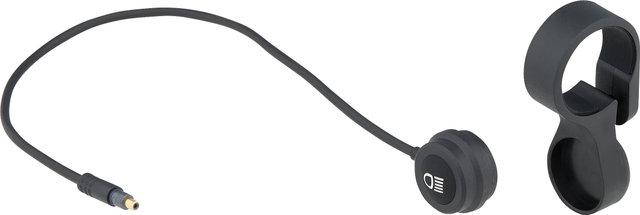

• 1 x Supernova high beam switch
• 1 x Supernova universal mount for high beam switch

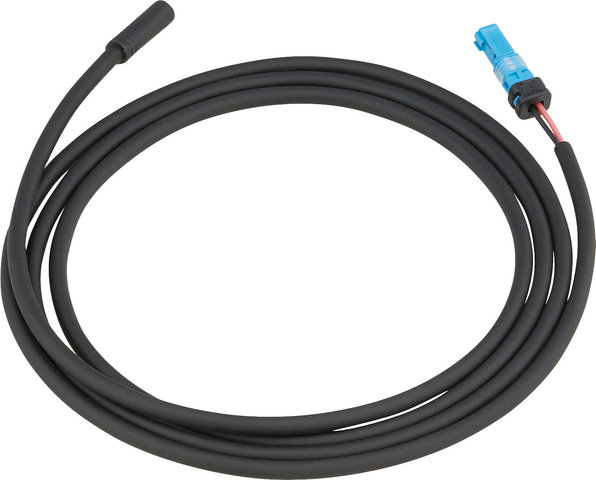

• 1 x Supernova Power Connector cable for Bosch

Order Together:

• Multimount CRC Light Mount
• connection cable
