Supernova M99 Mini Pro 25 MonkeyLink LED E-Bike Front Light - StVZO approved

The M99 Mini Pro LED Front Light by Supernova for e-bikes up to 25 km/h with MonkeyLink module and powerful high beam

The Supernova M99 Mini Pro LED front light with a bright 1150 lumens high beam is easily installed on stems with MonkeyLink interface without any cables. The MonkeyLink system uses magnets and locking mechanisms to ensure a secure hold, and the power supply is provided by internally routed cables from the e-bike battery to the stem.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked E-bikes/pedelecs with pedal assistance.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

Type:

front light (white)

Mount:

MonkeyLink mount

Light Source:

LED (10)

Brightness:

1150 lumens, 260 lux (high beam), 450 lumens, 150 lux (low beam)

Power Source:

E-bike battery

Technical Information:

Illumination Modes:

High beam, low beam, integrated daytime running light

Voltage:

5 - 13.5 V DC

Dimensions (HxWxD):

50 mm x 78 mm x 37 mm

Material:

Aluminium

Standing Light:

yes (can be turned off)

Switch:

high beam button

Approved For:

Street Use in Germany:

yes, for bicycles (according to §67 StVZO)

Check Number:

K~~1614

Compatibility:

• MonkeyLink stems
• Bosch Gen4 CX 12 V Lightport
• Bosch Gen2 Performance Line HS 6 V / 9 W, 12 V / 18 W
• Brose 2018 model C97272 6 V / 14.6 W
• Brose as of 2019 model Drive T / SF / S / C 12.5 V/27.5 W
• Daum Impulse 6 V / 9 W
• Fazua Evation 6 V / 9 W, 12 V / 24 W, 12 W (Connector Box)
• Giant SyncDrive - Pro / Sport / Life / Core 6 V / 9 W
• Giant 12 V / 18 W
• Neodrives UR-V5 12 V / 6 W
• Neodrives UR-V8 Integrale / Supercore 12 V / 18 W
• Neodrives Z20RS 12 V / 60 W
• Panasonic GX-0 as of 2019 model 13.5 V / 20 W
• Shimano EP8 12 V / 24 W
• Shimano STEPS E7000 12 V / 18 W
• Specialized Turbo Levo 6 V / 14.6 W
• Specialized Turbo Levo as of 2020 model 12 V / 24 W
• Stromer as of 2018 model 12 V / 30 W
• TQ HPR 120S 12 V / 24 W
• Yamaha PW-ST / PW-X / PW-X 2 6 V / 9 W

Features:

• with MonkeyLink module for wireless power supply to MonkeyLink stems
• for E-bikes up to 25 km/h
• automotive LEDs
• magnetic high beam button with mount for 22 mm handlebar diameter
• M99 Matrix: 99 individually-calculated mirror surfaces for balanced light distribution
• can also be switched on and off via the high beam button in manual mode instead of the e-bike display
• high beam with good illumination in curves and when suspension fork is submerged
• salt water-resistant anodised aluminium housing
• optimised heat dissipation with heat sensor
• integrated anti-theft device
• remote sensor cable length 212 mm
• automatic power adjustment with maximum power 10 - 16 W

Manufacturer Number:

T-M99MIPC-ML-MBLK

Contents:

• 1 x Supernova M99 Mini Pro MonkeyLink E-bike front light
• 1 x Supernova MSH22 mount for high beam button

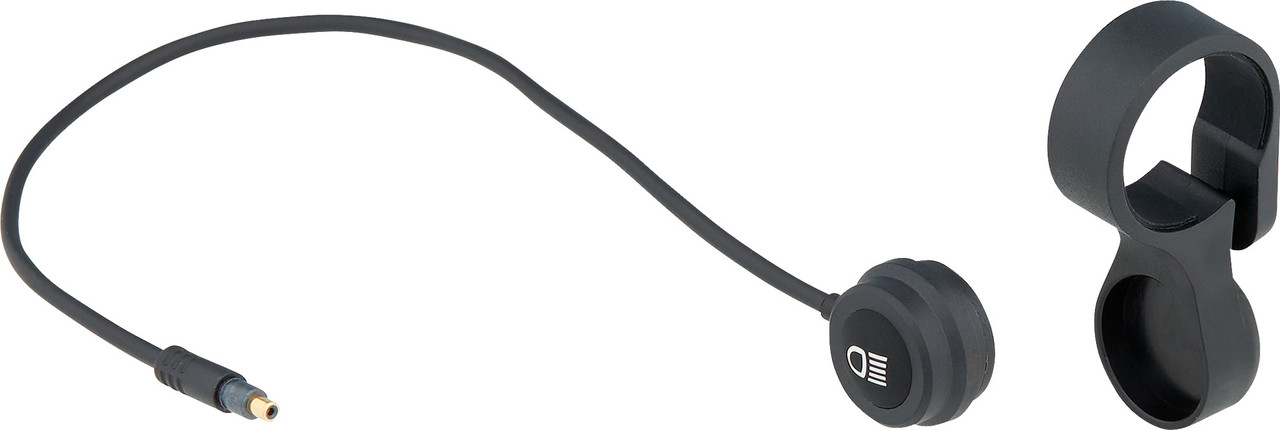

• 1 x Supernova magnetic high beam switch

Order Together:

Optional Accessories:

• USH22-32 High beam sensor mount for handlebar diameters from 22 - 32 mm
