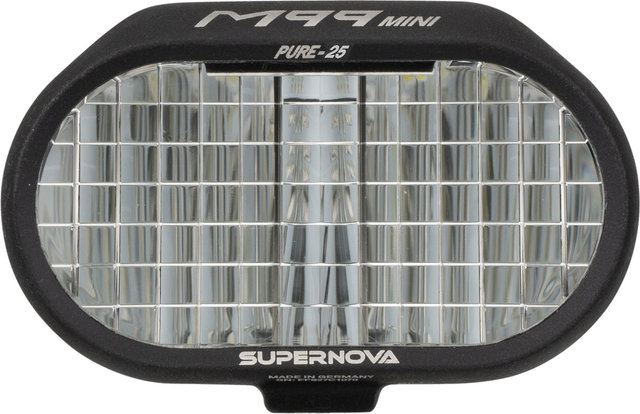

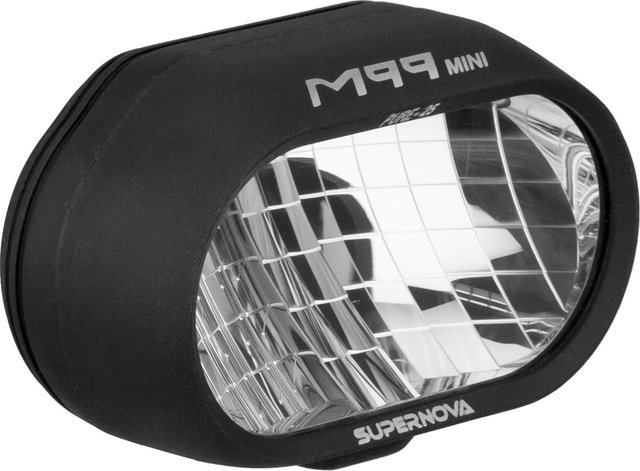

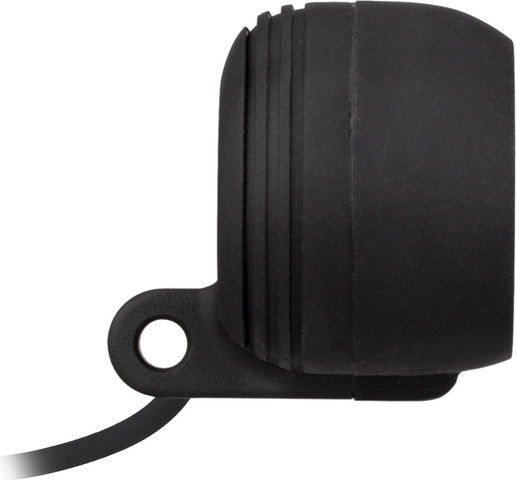

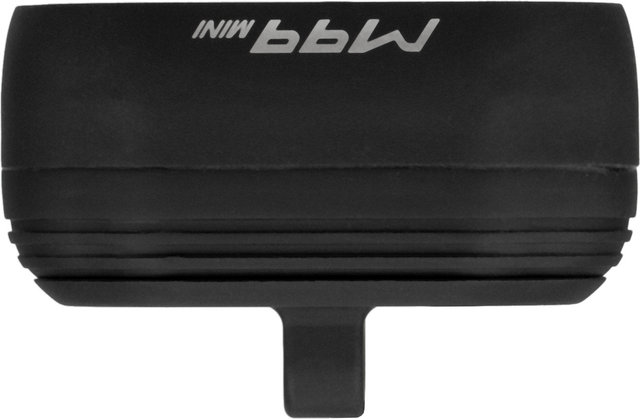

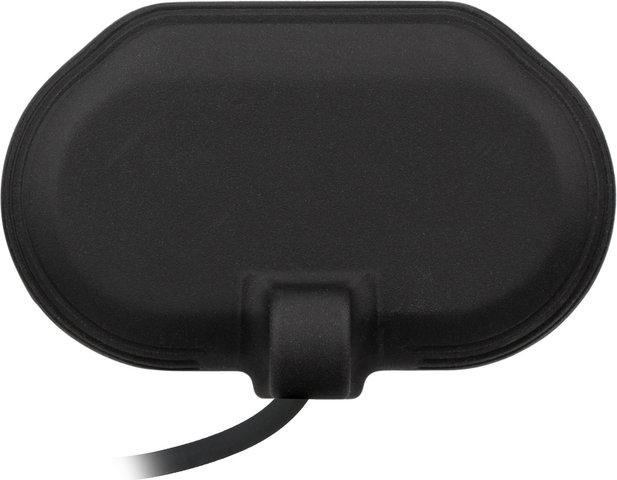

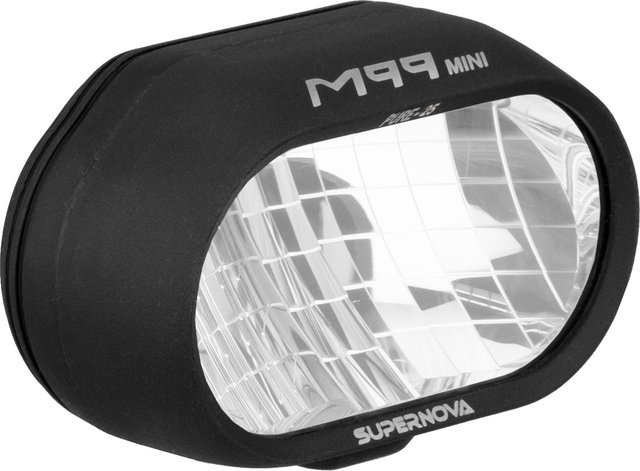

Supernova M99 Mini Pure-25 LED E-Bike Front Light w/ StVZO approval - 2022 Model

The Supernova M99 Mini Pure-25 LED front light equips e-bikes with pedal assistance up to 25 km/h with a 450-lumen low beam.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

Type:

front light (white)

Mount:

handlebars, fork, stem spacer, GoPro (mounts not included)

Light Source:

LED (5)

Brightness:

450 lumen, 150 lux

Illumination Range:

150 mm

Power Source:

E-bike battery

Technical Information:

Voltage:

5 - 13.5 V DC

Dimensions (H x W x D):

50 mm x 78 mm x 38 mm

Cable Length:

110 mm (to Power Connector), 1450 mm

Material:

aluminium

Standing Light:

yes (can be turned off)

Approved For:

Street Use in Germany:

yes, for bicycles (according to §67 StVZO)

Check Number:

K~~1456

Compatibility:

• Bosch Gen4 CX 12 V Smart System (connector cable included)
• Bosch Gen4 CX 12 V
• Bosch Gen2 Performance Line CX / Active Line 6 V
• Bosch Gen2 Performance Line CX / Active Line 12 V
• Brose up to Model 2017 C16162 / C91143 / C79232 / C97292 6 V
• Brose Model 2018 C97272 6 V
• Brose as of Model 2019 Drive T / SF / S / C 12.5 V
• Daum Impulse 6 V
• Fazua Evation 6 V / 9 W
• Fazua Evation 12 V / 12 W
• Giant SyncDrive - Pro / Sport / Life / Core 6 V
• Mahle X35 6 V
• Neodrives UR-V5 12 V
• Neodrives UR-V8 Integrale / Supercore 12 V
• Neodrives Z20RS 12 V
• Panasonic GX0 as of Model 2019 13.5 V
• Shimano EP8 12 V
• Shimano STEPS E6000 6 V
• Shimano STEPS E7000 12 V
• Shimano STEPS E8000 6 V
• Specialized Vado Model 2019 / Creo SL 12 V
• Specialized Turbo Levo as of Model 2020 12 V
• Stromer as of Model 2018 12 V
• TQ PIN 120 Model 2017 12 V
• TQ HPR 120S 12 V
• Yamaha X87 6 V
• Yamaha PW-ST / PW-X / PW-X 2 6 V

Features:

• for e-bikes up to 25 km/h
• Power Connector System

Manufacturer Number:

U-M99MINI-K-MBLK

Contents:

• 1 x Supernova M99 Mini Pure-25 Front Light

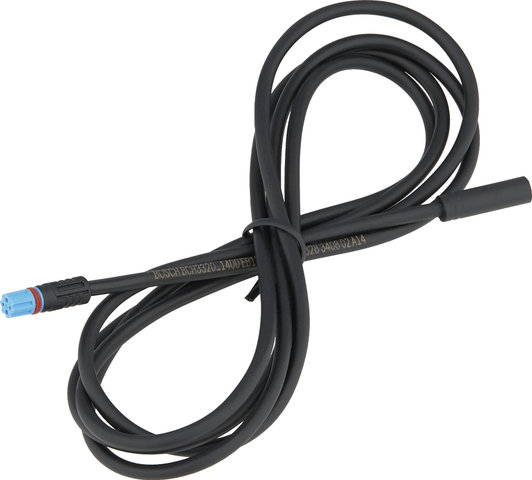

• 1 x Supernova Power Connector cable for Bosch Smart System

Order Together:

• M99 HBM Adapter for Bosch Intuvia / Nyon
• Universal HBM Handlebar Mount
• Multimount M99 CRC Light Mount
• Aero Handlebar Mount
• GoPro Mount
• connection cable
