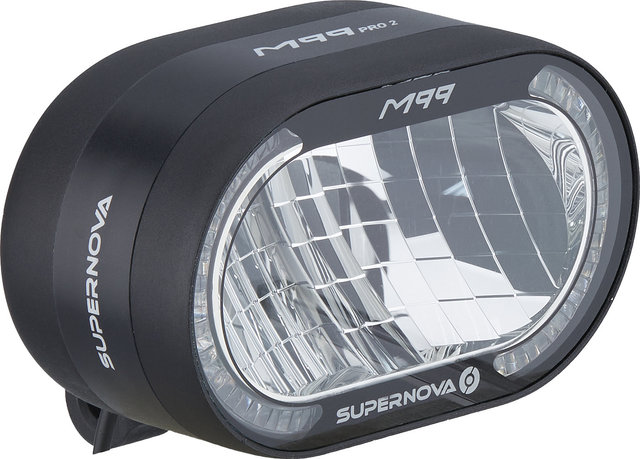

Supernova M99 Pro 2 LED E-Bike 45 Front Light - StVZO Approved

The M99 Pro 2 LED e-bike front light from Supernova with StVZO approval for e-bikes up to 45 km/h with powerful high beam

This M99 Pro 2 LED front light from Supernova is designed for S-Pedelecs up to 45 km/h and has a bright 3000 lumens in high beam mode. A light sensor recognises when darkness falls and automatically switches from daytime running light to low beam. One highlight is the option of connecting components such as a horn, USB charger or heated grips, as the front light also serves as a control centre for additional power consumers.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

Type:

front light (white)

Mount:

handlebars (mount not included)

Light Source:

Power-LED (16)

Brightness:

3000 lumens, 450 lux (high beam), 1100 lumens, 250 lux (low beam)

Power Source:

E-bike battery

Technical Information:

Illumination Modes:

High beam, low beam, daytime running light

Voltage:

12 V DC

Protection Rating:

IP67

Dimensions (H x W x D):

52 mm x 85 mm x 42 mm

Cable Length:

100 mm (to the Power Connector)

Material:

aluminium

Standing Light:

yes (can be turned off)

Switch:

automatic (sensor), high beam button

Approved For:

Street Use in Germany:

yes, for e-bikes and s-pedelecs (§50 StVZO)

Check Number:

E1

Features:

• front light with high beam function for S-Pedelecs up to 45 km/h
• Compact Power Plug connector system enables various connections
• Power Connector System
• Power Boost Input option with separately available cable
• also serves as a control centre for other e-bike components
• three output slots: high beam button connection, Prio 1 boost port for horn, Prio 2 port for heated grips, USB ports and others (cannot be operated together with high beam)
• connection cable with square interface for Bosch included, for Bosch SmartSystem a different cable for round interfaces is required
• luminous logo on the side

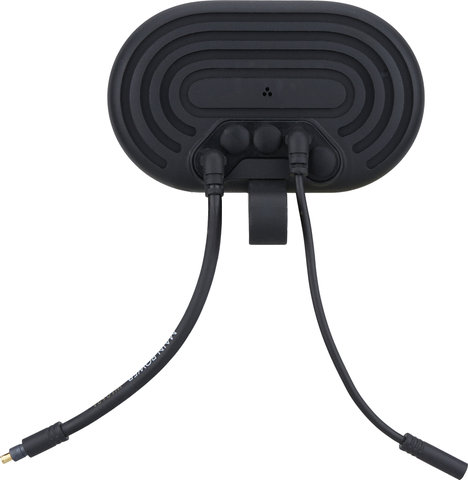

• cooling fins on the back for better cooling and optimum light output

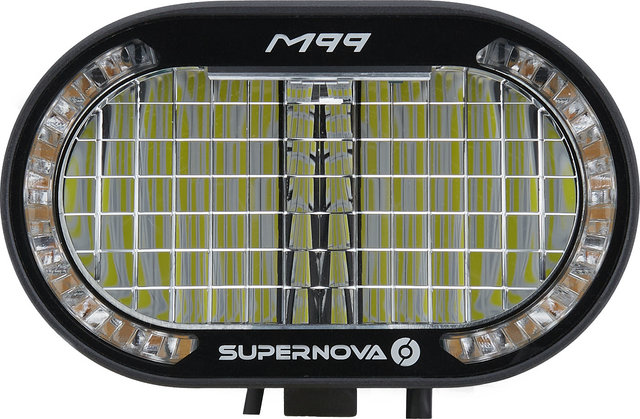

• 99 individually calculated and optimally aligned mirror surfaces
• seamless forged aluminium housing
• hardened front glass
• saltwater-resistant anodised housing
• suitable for all seasons
• production in Germany

Manufacturer Number:

V-M99-E12-MBLK

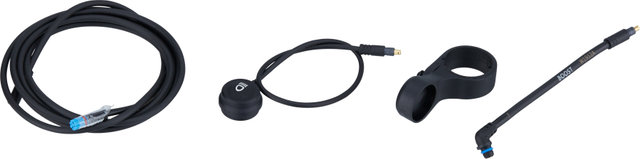

Contents:

• 1 x Supernova M99 Pro 2 LED E-Bike 45 front light
• 1 x Supernova high beam switch
• 1 x Supernova button mount
• 1 x Bosch connection cable

Order Together:

• Compact Holder handlebar mount
• connection cable
