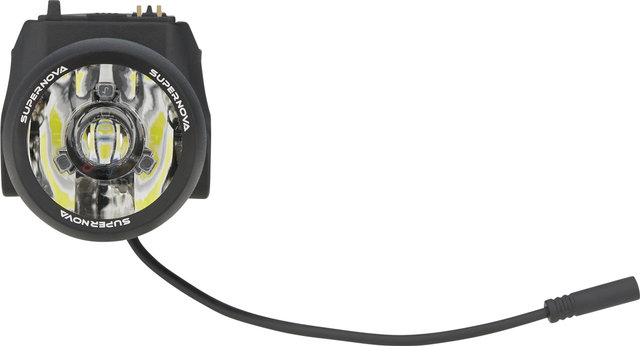

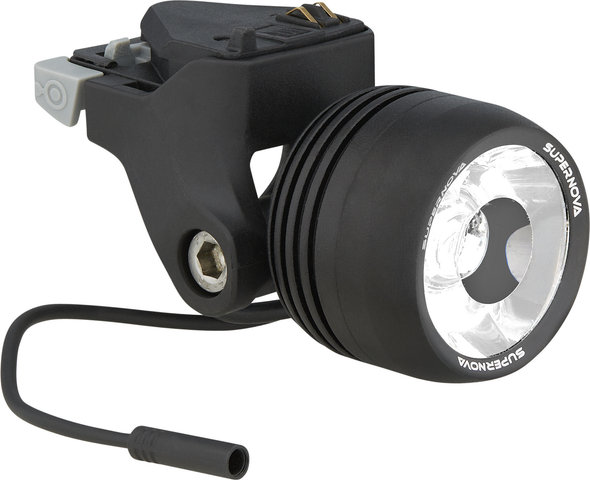

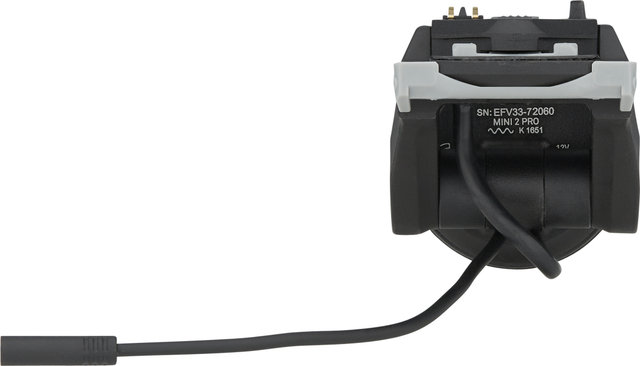

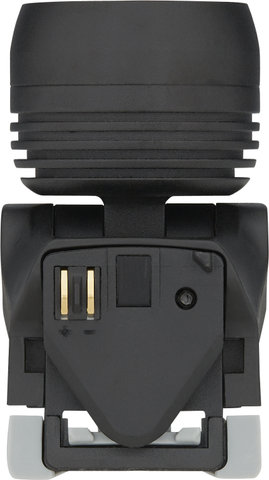

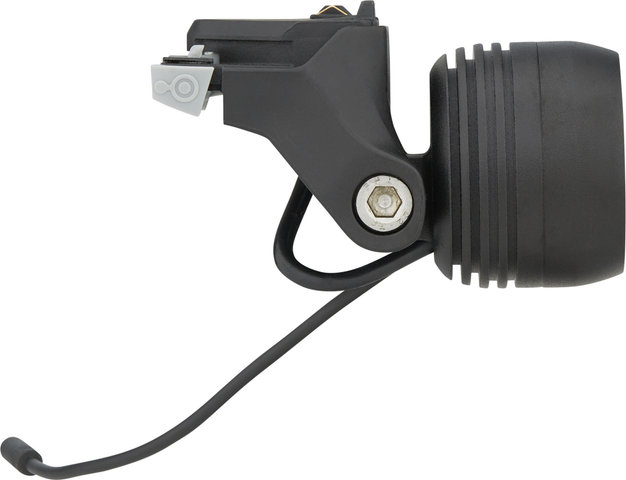

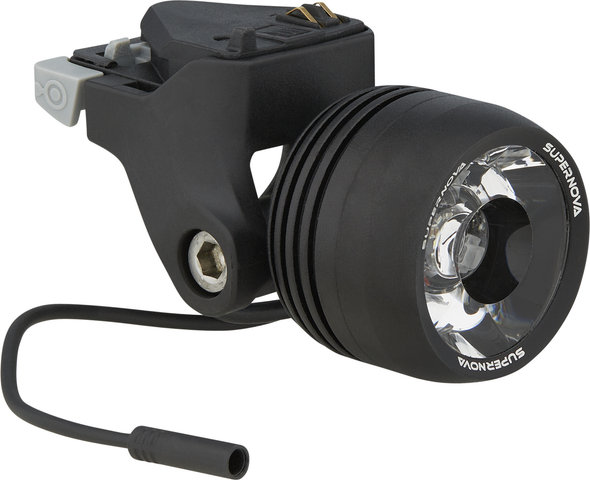

Supernova Mini 2 Pro MonkeyLink LED E-Bike Front Light - StVZO Approved

The Mini 2 Pro LED Front Light by Supernova for e-bikes up to 25 km/h with MonkeyLink module and high beam

The Supernova Mini 2 Pro LED front light with a bright 550 lumens high beam mode is easily installed on stems with MonkeyLink interface without any cables. The MonkeyLink system uses magnets and locking mechanisms to ensure a secure hold, and the power supply is provided by internally routed cables from the e-bike battery to the stem.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked E-bikes/pedelecs with pedal assistance.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

Type:

front light (white)

Mount:

MonkeyLink mount

Light Source:

Power LED (1)

Brightness:

550 lumens, 160 lux (high beam), 235 lumens, 100 lux (low beam)

Power Source:

E-bike battery

Technical Information:

Illumination Modes:

High beam, low beam, integrated daytime running light

Voltage:

12V

Dimensions (HxWxD):

41 mm x 41 mm x 31.5 mm

Material:

Aluminium

Standing Light:

yes (can be turned off)

Switch:

high beam button

Approved For:

Street Use in Germany:

yes, for bicycles (according to §67 StVZO)

Check Number:

K~~1651

Compatibility:

• MonkeyLink stems
• Bosch Gen4 CX 12 V Lightport
• Bosch Gen2 Performance Line HS 12 V / 18 W
• Brose as of 2019 model Drive T / SF / S / C 12.5 V/27.5 W
• Fazua Evation 12 V / 24 W, 12 W (Connector Box)
• Giant 12 V / 18 W
• Neodrives UR-V5 12 V / 6 W
• Neodrives UR-V8 Integrale / Supercore 12 V / 18 W
• Neodrives Z20RS 12 V / 60 W
• Panasonic GX-0 as of 2019 model 13.5 V / 20 W
• Shimano EP8 12 V / 24 W
• Shimano STEPS E7000 12 V / 18 W
• Specialized Turbo Levo 6 V / 14.6 W
• Specialized Turbo Levo as of 2020 model 12 V / 24 W
• Stromer as of 2018 model 12 V / 30 W
• TQ PIN 120 2017 model 12 V / 30 W
• TQ HPR 120S 12 V / 24 W

Features:

• with MonkeyLink module for wireless power supply and easy installation on MonkeyLink stems
• for E-bikes up to 25 km/h
• magnetic high beam button with mount for 22 mm handlebar diameter
• Terraflux4 lens for good and even illumination
• high beam with good illumination in curves and when suspension fork is submerged
• saltwater-resistant anodised aluminium housing with cooling fins
• optimised heat dissipation with heat sensor
• compact shape
• integrated anti-theft device
• remote sensor cable length 212 mm
• power consumption 5 - 10 W

Technology:

Terraflux4 lens
The Terraflux lens is a milestone in optical development. For a lens of this size, it produces outstandingly bright and uniform illumination on the road and good ambient lighting above the cut-off line. With the Terraflux lens, you are noticed in traffic without directing glare at oncoming traffic. Thanks to a sophisticated light control system, the Terraflux lens directs 90% of the light to where it is needed most: the road. There it forms a broad and even blanket of light that extends from the front wheel to far away. The permanent daytime running light incorporated into the lens ensures that the rider is also very well visible in traffic during the day. At night, this light component is used for excellent ambient lighting and warns of low-hanging branches on the trail.

Manufacturer Number:

R-MINI2P-MBLK

Contents:

• 1 x Supernova Mini 2 Pro MonkeyLink E-Bike Front Light
• 1 x Supernova MSH22 mount for high beam button

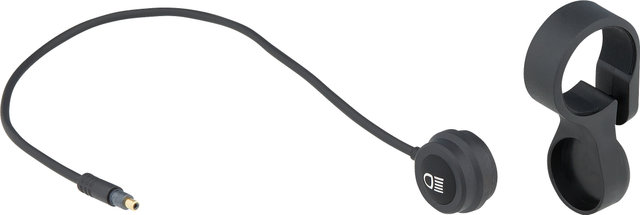

• 1 x Supernova magnetic high beam switch

Order Together:

Optional Accessories:

• USH22-32 High beam sensor mount for handlebar diameters from 22 - 32 mm
