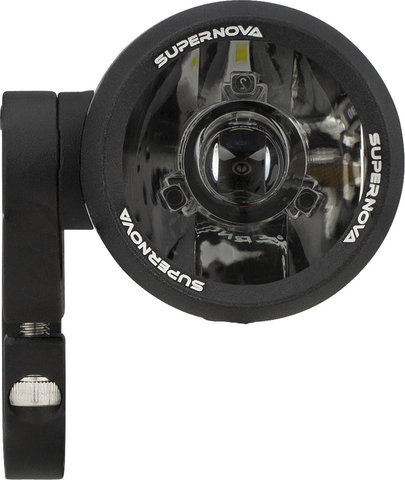

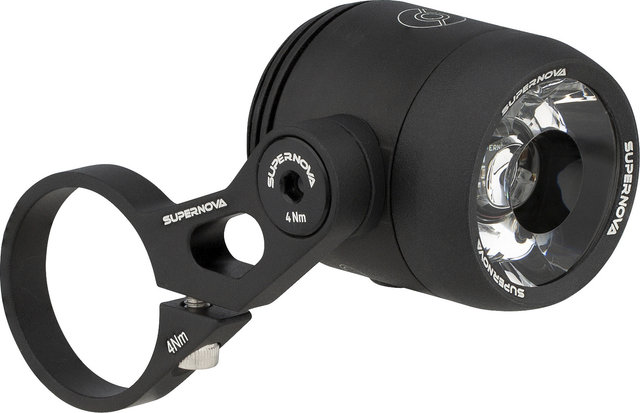

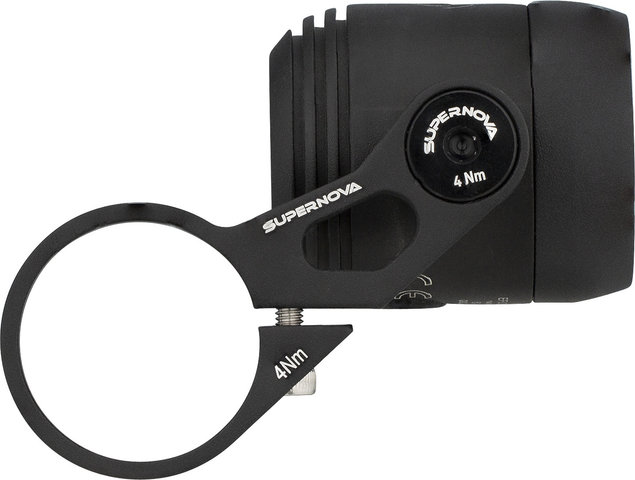

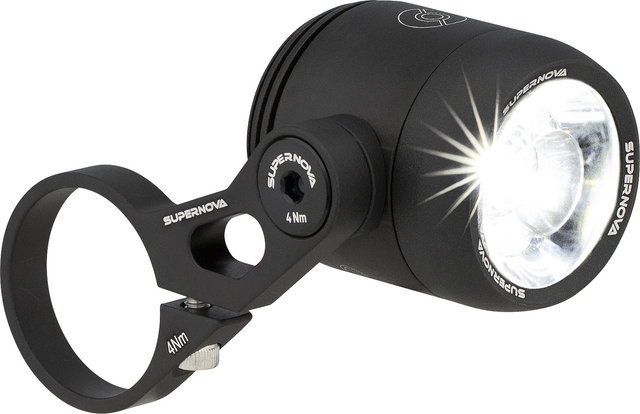

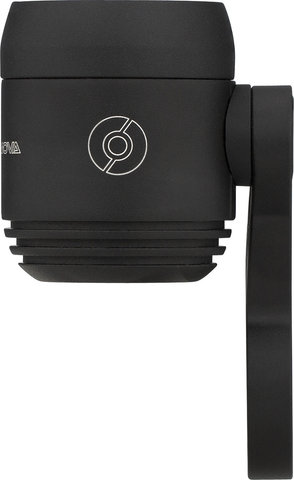

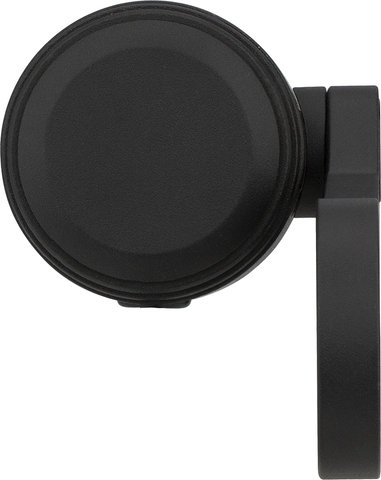

Supernova V521S HBM LED E-Bike Front Light with StVZO approval

The V521s HBM E-bike front light with handlebar mount by Supernova is compatible with almost all E-bike drivetrains.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked E-bikes/pedelecs with pedal assistance.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

Type:

front light (white)

Mount:

handlebars

Light Source:

1 Terraflux4 lens

Brightness:

235 lumen, 100 lux

Power Source:

E-bike battery

Technical Information:

Illumination Modes:

low beam, integrated daytime running light

Voltage:

5 - 21 V

Dimensions (HxWxD):

49 mm x 41 mm x 41 mm

Cable Length:

1300 mm

Material:

aluminium

Switch:

Operable via display

Approved For:

Street Use in Germany:

yes, for bicycles (according to §67 StVZO)

Check Number:

K~~1371

Compatibility:

Handlebars:

• up to 31.8 mm clamp diameter

Motors:

• Bosch Gen. 4 (Performance Line CX), 12 V, 18 W
• Bosch Gen. 2 (Performance Line Speed), 6 V, 9 W
• Bosch Gen. 2 (Performance Line CX, Active Line), 12 V, 18 W
• Brose (C16162, C91143, C79232, C97292) until 2017, 6 V, 7.2 W
• Brose (C97272) 2018, 6 V, 14.6 W
• Brose (Drive T, TF, S, C) from 2019, 12.5 V, 27.5 W
• Daum Impulse, 6 V, 9 W
• Fazua Evation, 6 V, 9 W / 12 V, 12 W (Connector Box)
• Giant (SyncDrive - Pro, Sport, Life, Core), 6 V, 9 W
• Mahle (X35+), 6 V, 7.2 W
• Neodrives (UR-V5), 12 V, 6 W
• Neodrives (UR-V8 Integrale, Supercore), 12 V, 18 W
• Neodrives (Z20 RS) 12 V, 60 W
• Panasonic (GX 0) from 2019, 13.8 V, 20 W
• Shimano (EP 8), 12 V, 24 W
• Shimano (Steps E6000), 6 V, 6 W
• Shimano (Steps E7000), 12 V, 18 W
• Shimano (Steps E8000), 6 V, 12 W
• Specialized (Vado 2019, CREO SL), 12 V, 8 W
• Specialized (Turbo Levo) from 2020, 12 V, 24 W
• SR Suntour (45 km/h), 6 V, 6 W
• Stromer from 2018, 12 V, 30 W
• TQ PIN 120 2017, 12 V, 8 W
• TQ HPR 120 S, 12 V, 30 W
• Yamaha (X78 45 km/h with DC/DC 6 V), 6 V, 24 W
• Yamaha (PW-ST, PW-X, PW-X 2), 6 V, 9 W
• Yamaha (PW-SE), 6 V, 6 W

Features:

• broad light beam
• 31.8 mm clamp for handlebar mounting
• Terraflux4 lens
• integrated daytime running light
• soft start

Technology:

Terraflux4 lens The Terraflux lens is a milestone in optics development. For a lens of this size, it produces outstandingly bright and uniform illumination on the road and good ambient lighting above the cut-off line. With the Terraflux lens you will be noticed without dazzling oncoming traffic. Thanks to a sophisticated light control system, the Terraflux lens directs 90 % of the light where it is needed most: on the road. There it forms a broad and even blanket of light that extends from the front wheel to far away. The permanent daytime running light incorporated into the lens ensures that the rider is also very well visible in traffic during the day. At night, this light component is used for excellent ambient lighting and warns of low-hanging branches on the trail.

Manufacturer Number:

U-V521S-MBLK-HBM

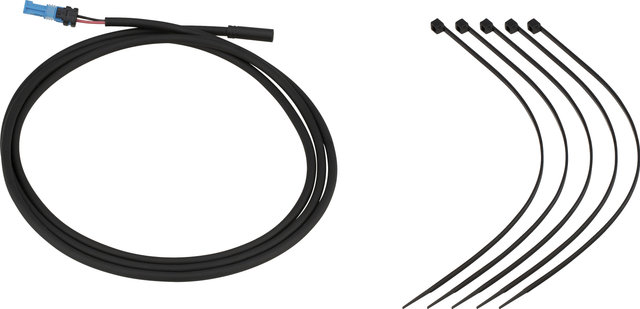

Contents:

• 1 x Supernova V521S HBM LED E-Bike front light
• 1 x Bosch Power Connector Cable
• 5 x cable ties
