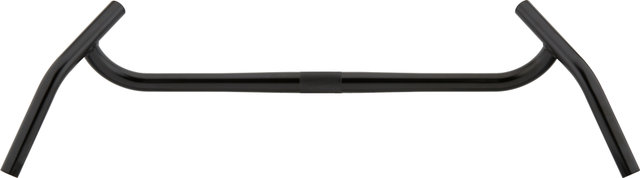

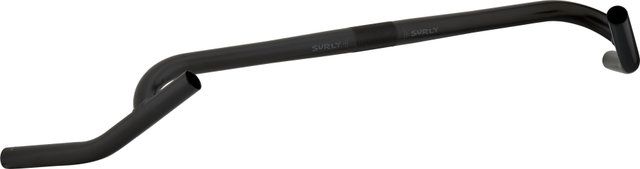

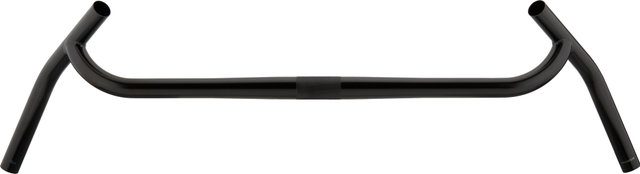

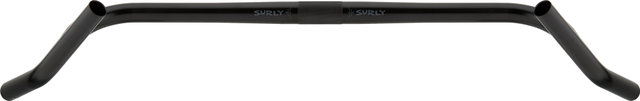

Surly Corner Bar 25.4 Handlebars

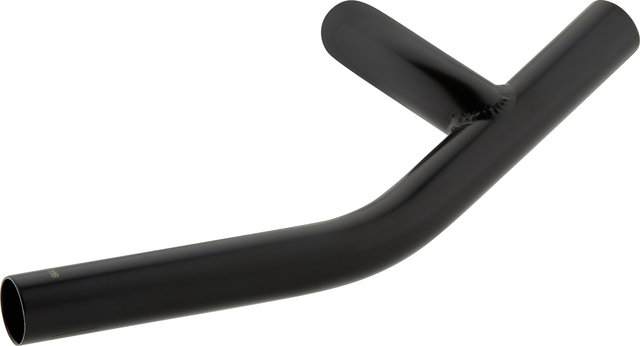

The Surly Corner Bar handlebars are drop bars with a 25.4 mm handlebar clamp that allows you to continue using your mountain bike drivetrain. An adapter for 31.8 mm stems is also included. The handlebars have protruding horns with a 22.2 mm clamp diameter that fit common MTB shift and brake levers. The low 95.2 mm drop and the large 41.4° flare make the robust steel handlebars the right cockpit equipment for your next adventure. A handlebar bag can easily be accommodated here, so nothing stands in the way of big bikepacking tours. Even if you are unsure whether you like biking with drop bars, the Corner Bar is a good option as you don't need a new groupset to test it.

Specifications:

Application:

All Mountain, Cross Country, Gravel, City & Touring

Width:

460 mm, 500 mm, 540 mm

Stem Clamp:

25.4 mm

Technical Information:

Drop:

95.2 mm

Reach:

87.5 mm

Backsweep:

65.2°

Flare:

41.4°

Cable Routing:

external

Material:

steel (CrMo)

Note from the manufacturer:

Not intended for use with handlebar attachments or bar ends. Surly handlebars are not intended for use with carbon stems.

Features:

• drop bars for MTB drivetrains (especially shift and brake levers)
• made of durable CrMo steel
• wide handlebars with lots of flare
• plenty of space for handlebar bag and snack bags

Manufacturer Numbers:

46 cm:

HB0101

50 cm:

HB0102

54 cm:

HB0103

Contents:

• 1 x Surly Corner Bar handlebars

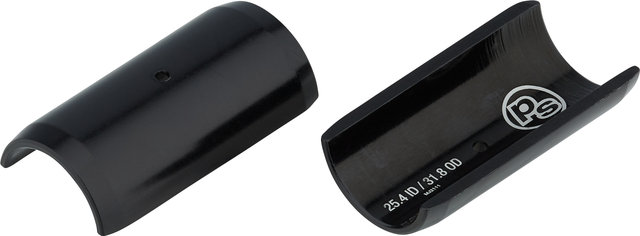

• 1 x Surly 31.8 mm shim
