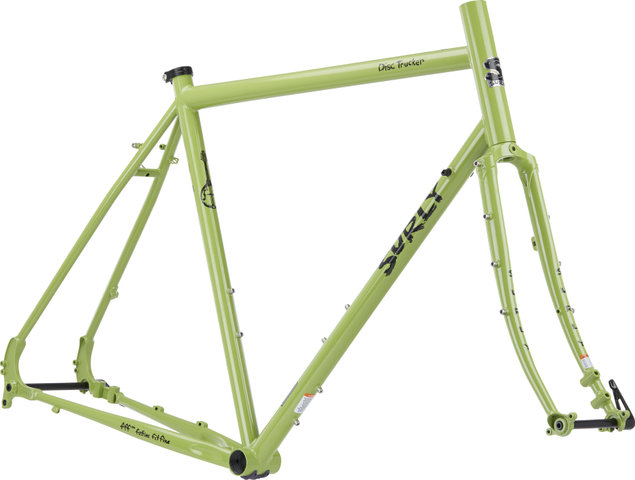

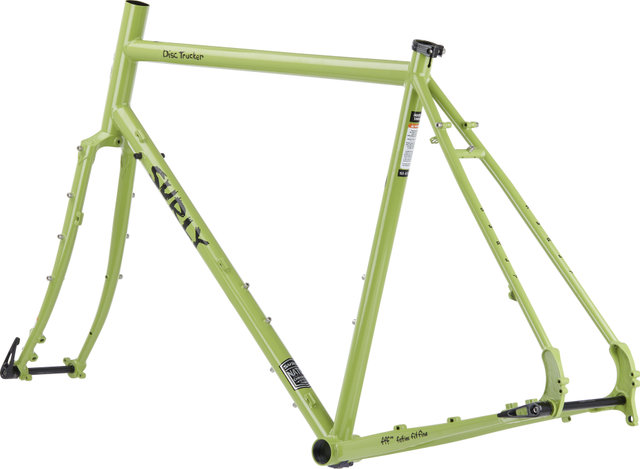

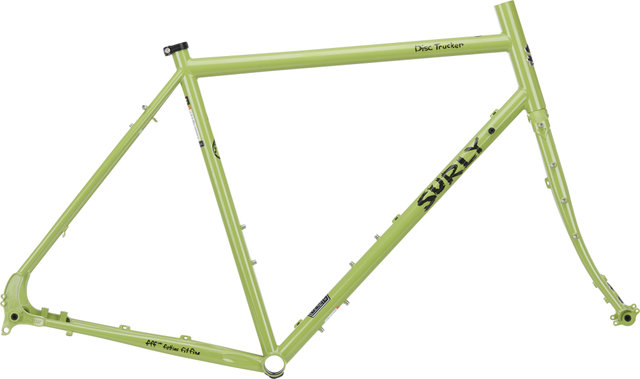

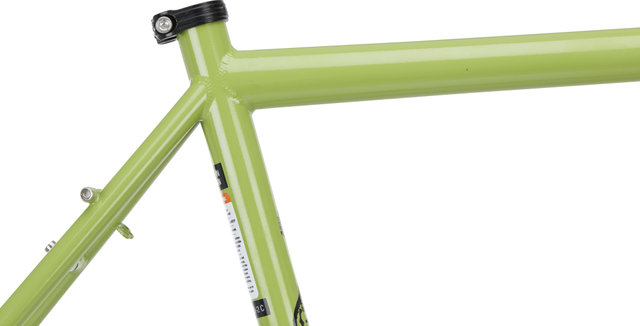

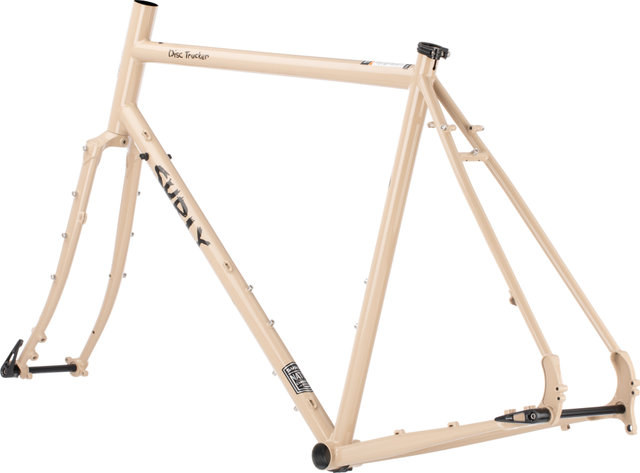

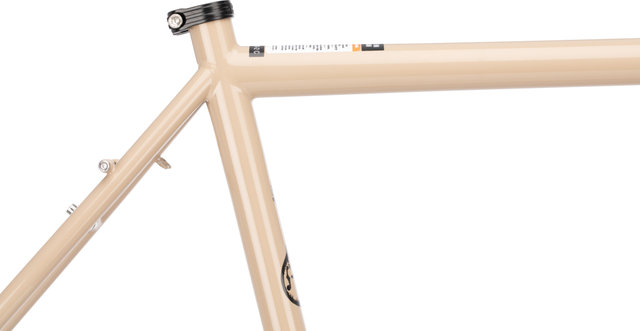

Surly Disc Trucker 700c/28" Frameset

The fork and frame of the Disc Trucker 700C 28" frameset from Surly are both made of steel. The numerous eyelets for cargo and accessories make it the ideal base for your touring bike. The wheels are attached by means of a thru-axle, which creates higher stability. The shortened chainstays provide more agility. In addition, the frame and fork feature flat mount disc brake mounts.

Specifications:

Application:

City & Touring

Wheel Size:

28"

Size:

56 cm, 58 cm, 60 cm, 62 cm, 64 cm

Frame Material:

steel (4130 CrMo)

Fork Material:

steel (4130 CrMo)

Technical Information - Frame:

Wheel Standard:

12 x 142 mm (standard)

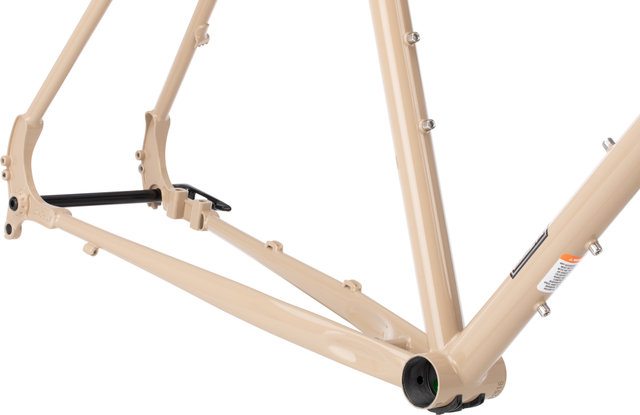

Axle Type:

12 mm thru-axle

Seatpost (Ø):

27.2 mm

Seatpost Clamp(Ø):

30 mm

Headset:

EC34/28.6 - EC34/30

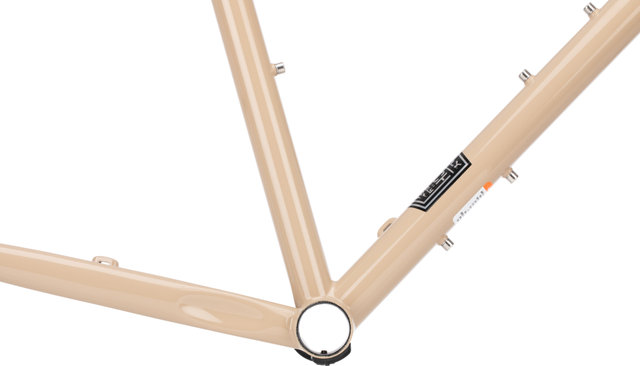

Bottom Bracket Standard:

BSA

Shell Width:

68 mm

Brake Mount:

flat mount

Front Derailleur Mount:

high clamp (28.6 mm)

Bottle Cage Mounts:

3

Accessory Mounts:

1 shift lever mount on down tube, pannier rack mount, fender mounts

Technical Information - Fork:

Steerer Tube:

1 1/8"

Wheel Standard:

12 x 100 mm (standard)

Axle Type:

12 mm thru-axle

Brake Mount:

flat mount

Offset:

45 mm

Axle to Crown:

390 mm

Crown Race Diameter:

30 mm

Steerer Tube Material:

steel (4130 CrMo)

Blade Material:

steel (4130 CrMo)

Accessory Mounts:

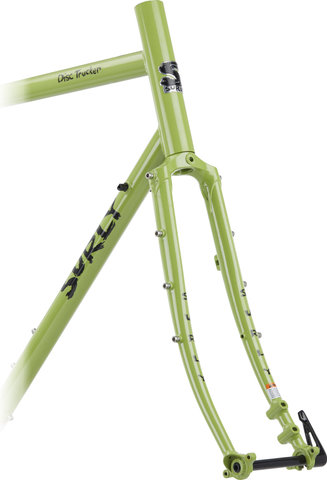

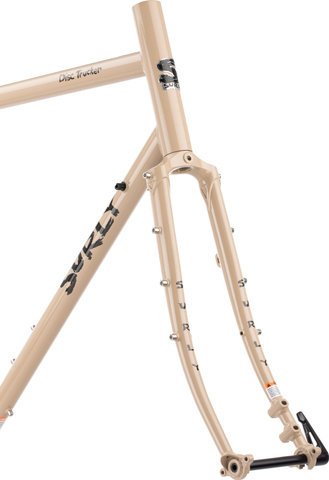

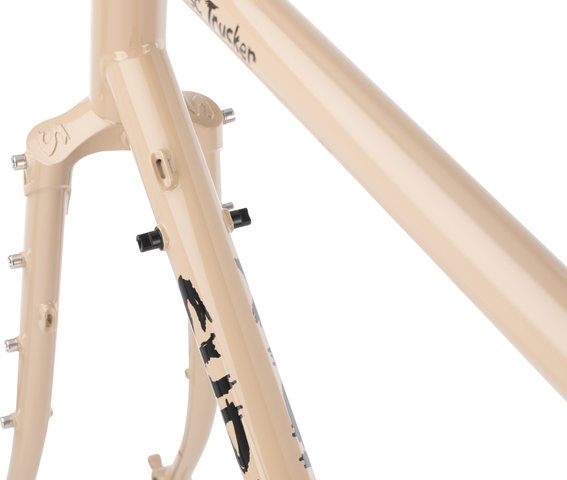

3 eyelets per fork leg for lowrider, fender attachment

Approved For:

Weight Limit:

161 kg

Brake Rotor Size (max.):

160 mm (front), 160 mm (rear)

Tyre Size (max.):

28 x 2.0" (front), 28 x 1.9" (rear)

Chainrings:

1x, 2x, 3x

Chainring Size (max.):

1x 47 tooth, 2x 34-50 tooth, 3x 33-47-56 tooth

Features:

• ASTM category 2: for use on roads, maintained dirt roads and gravel roads (on Touring and Cross Country bikes) with jumps up to a height of 15 cm

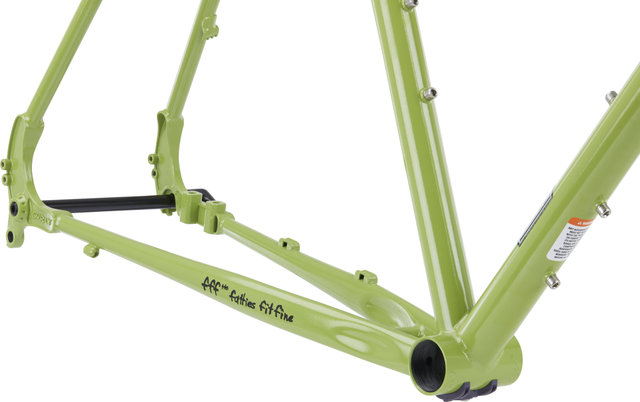

• shortened chainstays

Manufacturer's Notice:

When choosing your frame size you should take into account that Surly does not measure the seat tube specifications to the end of the seat tube. For frames with struts on the top tube, this is measured from the middle of the bottom bracket to above the struts. For frames without struts, measure from the middle of the bottom bracket to the top edge of the top tube.

Geometry:

56 cm

Stack:

613 mm

Reach:

387.5 mm

Seat Tube Length:

560 mm

Top Tube Length:

562, 5mm

Effective Top Tube Length:

575 mm

Head Tube Length:

175 mm

Chainstay Length:

450 mm

Wheelbase:

1051 mm

BB Drop:

80 mm

Seat Tube Angle:

73°

Head Tube Angle:

72°

Standover Height:

813 mm

58 cm

Stack:

632 mm

Reach:

391 mm

Seat Tube Length:

580 mm

Top Tube Length:

576 mm

Effective Top Tube Length:

590 mm

Head Tube Length:

195 mm

Chainstay Length:

450 mm

Wheelbase:

1060 mm

BB Drop:

80 mm

Seat Tube Angle:

72.5°

Head Tube Angle:

72°

Standover Height:

831 mm

60 cm

Stack:

651.5 mm

Reach:

400 mm

Seat Tube Length:

600 mm

Top Tube Length:

591 mm

Effective Top Tube Length:

605 mm

Head Tube Length:

215 mm

Chainstay Length:

450 mm

Wheelbase:

1075.5 mm

BB Drop:

80

Seat Tube Angle:

72.5°

Head Tube Angle:

72°

Standover Height:

850 mm

62 cm

Stack:

670.5 mm

Reach:

402 mm

Seat Tube Length:

620 mm

Top Tube Length:

604.5 mm

Effective Top Tube Length:

620 mm

Head Tube Length:

235 mm

Chainstay Length:

450 mm

Wheelbase:

1084 mm

BB Drop:

80 mm

Seat Tube Angle:

72°

Head Tube Angle:

72°

Standover Height:

869 mm

64 cm

Stack:

685 mm

Reach:

412.5 mm

Seat Tube Length:

640 mm

Top Tube Length:

621 mm

Effective Top Tube Length:

635 mm

Head Tube Length:

250 mm

Chainstay Length:

450 mm

Wheelbase:

1090 mm

BB Drop:

80 mm

Seat Tube Angle:

72°

Head Tube Angle:

72°

Standover Height:

885 mm

Manufacturer Numbers:

black / 56 cm:

FM1960

black / 58 cm:

FM1961

black / 60 cm:

FM1962

black / 62 cm:

FM1963

black / 64 cm:

FM1964

pea lime soup / 56 cm:

FM1785

pea lime soup / 58 cm:

FM1786

pea lime soup / 60 cm:

FM1787

pea lime soup / 62 cm:

FM1788

pea lime soup / 64 cm:

FM1789

Contents:

• 1 x Surly Disc Trucker 700C 28" frame
• 1 x Surly Disc Trucker 700C 28" rigid fork
• 1 x Surly Disc Trucker seatpost clamp

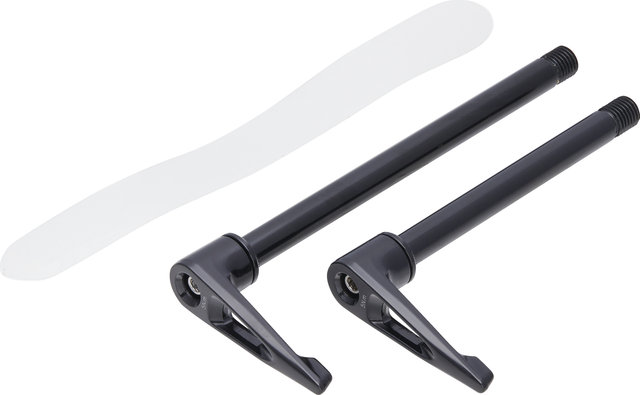

• 1 x Surly rear thru-axle
• 1 x Surly front thru-axle
