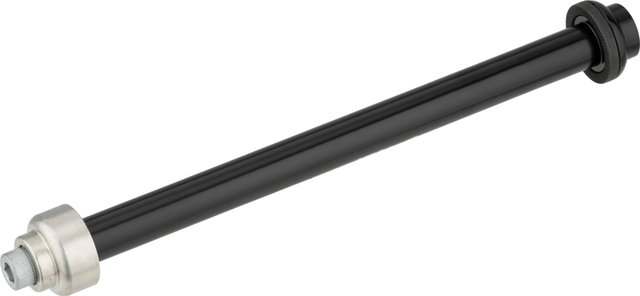

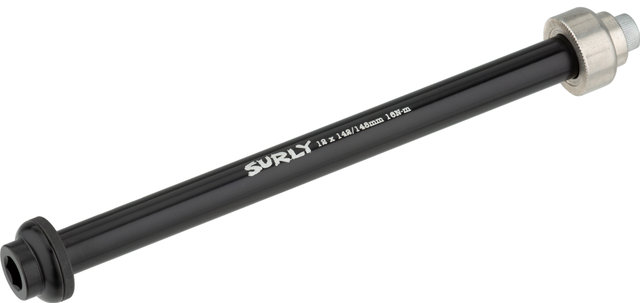

Surly Gnot Boost Rear Thru-Axle

The Gnot Boost rear thru-axle by Surly - subtle and unobtrusive

The Surly Gnot Boost rear thru-axle is suitable for the Gnot Boost frames from Surly and does not destroy the look of the beautiful frames due to the low profile.

Specifications:

Over Locknut Dimension:

142 mm

Axle Diameter:

12 mm

Technical Information:

Use:

rear: 12 x 142 mm

Type:

thru-axle

Axle Material:

aluminium (7075)

Nominal Diameter:

M6

Thread Pitch:

1.0

Technology:

Gnot Boost:
The Surly Gnot Boost technology allows the mounting of different over locknut dimensions on the rear wheel. Rear wheels with 12 x 142 mm or 12 x 148 mm thru-axles can be mounted by clamping or spreading the frame. Wheels with an over locknut dimension of 135 mm can be operated in frames with Gnot Boost technology using the rear wheel axle adapter.

Models:

12 x 142 mm:

Over Locknut Dimension:

142 mm

Axle Diameter:

12 mm

Compatibility:

Karate Monkey, Krampus, Troll, Ogre, ECR

Manufacturer Number:

FS1176

Contents:

• 1 x Surly Gnot Boost rear thru-axle
