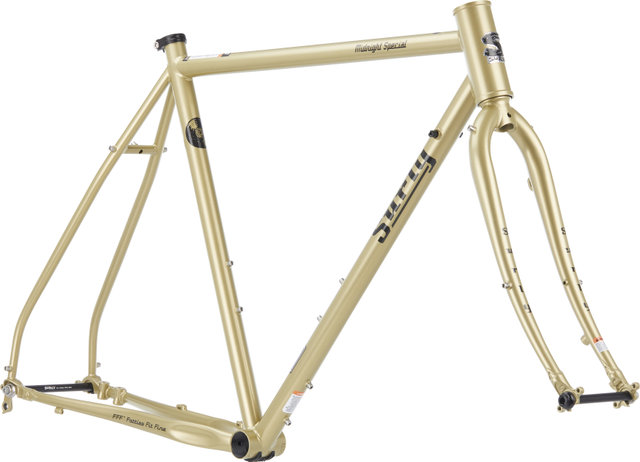

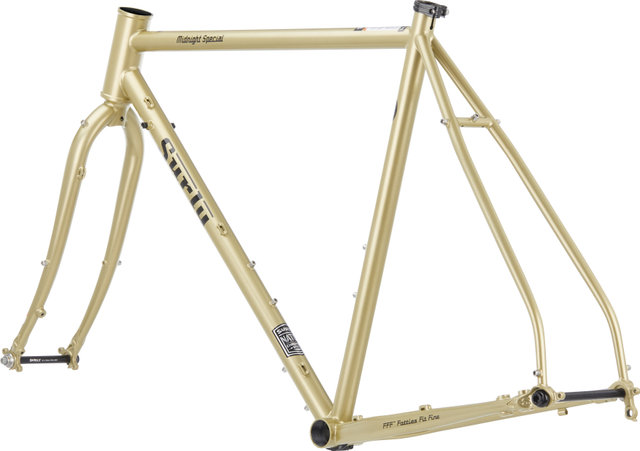

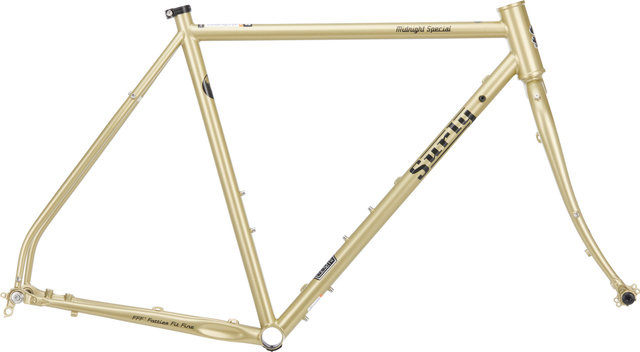

Surly MidNight Special 27.5"/28" frame kit

Specifications:

Application:

Gravel, Road, Touring

Wheel Size:

27.5" (650B), 28"

Size:

40 cm, 46 cm, 50 cm, 54 cm, 56 cm, 58 cm, 60 cm, 64 cm

Frame Material:

steel (Surly 4130 CrMo)

Fork Material:

steel (Surly 4130 CrMo)

Technical Information:

Rear Over Locknut Dimension:

142 mm

Axle Type:

- 12 mm thru-axle

Seatpost (Ø):

27.2 mm

Seatpost Clamp(Ø):

30 mm

Headset:

ZS44/28.6 - EC44/30 (top to bottom)

Steerer tube rec.:

1 1/8"

Fork Axle to Crown:

400 mm

Fork Offset:

50 mm (40 cm, 46 cm, 50 cm, 54 cm), 40 mm (56 cm, 58 cm, 60 cm, 64 cm)

Bottom Bracket Standard:

BSA 68

Shell Width:

68 mm

Brake Mount:

Flat

Front Derailleur Mount:

high clamp (28.6 mm)

Cable Routing:

external, mechanical

Bottle Cage Mounts:

3

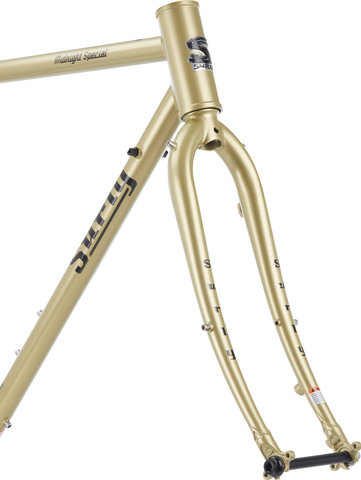

Technical Information - Fork:

Steerer Tube:

1 1/8"

Axle Type:

- 12 mm thru-axle

Brake Mount:

Flat

Offset:

50 mm (40 cm, 46 cm, 50 cm, 54 cm), 40 mm (56 cm, 58 cm, 60 cm, 64 cm)

Axle to Crown:

400 mm

Over Locknut Dimension:

100 mm

Crown Race Diameter:

30 mm

Steerer Tube Material:

steel (Surly 4130 CrMo)

Blade Material:

steel (Surly 4130 CrMo)

Approved For:

Weight Limit:

136 kg total weight

Rotor Size (max.):

160 mm

Tyre Size (max.):

700x42 mm, 27.5x2.35"

Chainrings:

1x, 2x, 3x

Chainring Size (max.):

1x 44 T, 2x 34-50 T, 3x 30-39-50 T

Colour Index:

hot mayonnaise:

white w/ a pearl shine

Manufacturer's Notice:

When choosing your frame size you should take into account that Surly does not measure the seat tube specifications to the end of the seat tube. For frames with struts on the top tube, this is measured from the middle of the bottom bracket to above the struts. For frames without struts, measure from the middle of the bottom bracket to the top edge of the top tube.

Geometry:

40 cm:

Seat Tube Length:

400 mm

Effective Top Tube Length:

500 mm

Head Tube Length:

95 mm

Chainstay Length:

425 mm

Wheelbase:

993 mm

BB Drop:

70 mm

Reach:

363 mm

Stack:

531 mm

Seat Tube Angle:

75.5°

Head Tube Angle:

71°

Standover Height:

720 mm

Recommended Height:

152 - 162 cm

46 cm:

Seat Tube Length:

460 mm

Effective Top Tube Length:

520 mm

Head Tube Length:

100 mm

Chainstay Length:

425 mm

Wheelbase:

994 mm

BB Drop:

70 mm

Reach:

366 mm

Stack:

538 mm

Seat Tube Angle:

74°

Head Tube Angle:

71.5°

Standover Height:

751 mm

Recommended Height:

159 - 169 cm

50 cm:

Seat Tube Length:

500 mm

Effective Top Tube Length:

540 mm

Head Tube Length:

110 mm

Chainstay Length:

425 mm

Wheelbase:

1007 mm

BB Drop:

65 mm

Reach:

379 mm

Stack:

544 mm

Seat Tube Angle:

73.5°

Head Tube Angle:

72°

Standover Height:

778 mm

Recommended Height:

165 - 175 cm

54 cm:

Seat Tube Length:

540 mm

Effective Top Tube Length:

555 mm

Head Tube Length:

125 mm

Chainstay Length:

425 mm

Wheelbase:

1018 mm

BB Drop:

65 mm

Reach:

389 mm

Stack:

560 mm

Seat Tube Angle:

73.5°

Head Tube Angle:

72.5°

Standover Height:

806 mm

Recommended Height:

170 - 180 cm

56 cm:

Seat Tube Length:

560 mm

Effective Top Tube Length:

570 mm

Head Tube Length:

140 mm

Chainstay Length:

425 mm

Wheelbase:

1012 mm

BB Drop:

65 mm

Reach:

393 mm

Stack:

580 mm

Seat Tube Angle:

73°

Head Tube Angle:

73°

Standover Height:

827 mm

Recommended Height:

175 - 185 cm

58 cm:

Seat Tube Length:

580 mm

Effective Top Tube Length:

585 mm

Head Tube Length:

160 mm

Chainstay Length:

425 mm

Wheelbase:

1027 mm

BB Drop:

65 mm

Reach:

402 mm

Stack:

599 mm

Seat Tube Angle:

73°

Head Tube Angle:

73°

Standover Height:

846 mm

Recommended Height:

180 - 190 cm

60 cm:

Seat Tube Length:

600 mm

Effective Top Tube Length:

605 mm

Head Tube Length:

180 mm

Chainstay Length:

425 mm

Wheelbase:

1036 mm

BB Drop:

65 mm

Reach:

409 mm

Stack:

620 mm

Seat Tube Angle:

72.5°

Head Tube Angle:

73.5°

Standover Height:

866 mm

Recommended Height:

186 - 196 cm

64 cm:

Seat Tube Length:

640 mm

Effective Top Tube Length:

625 mm

Head Tube Length:

200 mm

Chainstay Length:

425 mm

Wheelbase:

1050 mm

BB Drop:

65 mm

Reach:

423 mm

Stack:

641 mm

Seat Tube Angle:

72.5°

Head Tube Angle:

74°

Standover Height:

895 mm

Recommended Height:

193 - 203 cm

Contents:

• 1 x Surly MidNight Special frame
• 1 x Surly MidNight Special fork
• not incl. headset
