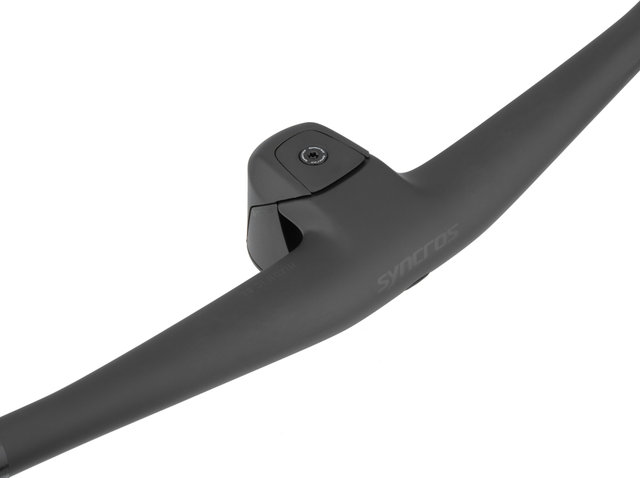

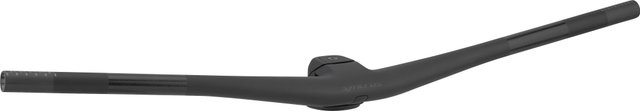

Syncros Hixon iC SL Carbon Handlebar-Stem Unit

Specifications:

Application:

All Mountain

Design:

Ahead

Width:

780 mm

Stem Lengths:

40 mm, 50 mm

Stem Angle:

4°, 5°

Rise:

15 mm

Stack Height (steerer tube):

45 mm

Steerer Clamp:

1 1/8"

Technical Information:

Backsweep:

7°

Upsweep:

6°

Shortened Width (min.):

680 mm

Material:

Carbon

Approved For:

Weight Limit:

110 kg (rider weight)

Features:

• UD carbon handlebar-stem unit with 15 mm rise for mountain bikes
• lightweight SL carbon construction (Super Light) is 30% more stable than classic handlebar and stem combinations
• 780 mm wide with textured, shortenable handle ends
• integrated cable routing in the stem for a clean cockpit
• separable spacers allow access to cables without disassembly
• unobtrusive holes for attaching Syncros-iC mounts for bike computers, lights and action cams
• two holes on the underside of the handlebars for attaching the enclosed cable ties

Technology:

iC-integrated Cockpit
The integrated cockpit concept combines the line between components and frame to create a seamless unit that functions as a complete system rather than a collection of individual parts. The result is lighter, stiffer and more aerodynamic - a new definition of classic bike aesthetics.

Models:

780 mm, 40 mm:

Stem Length:

40 mm

Stem Angle:

5°

Manufacturer Number:

2944740135167

780 mm, 50 mm:

Stem Length:

50 mm

Stem Angle:

4°

Manufacturer Number:

2944740135175

Contents:

• 1 x Syncros Hixon iC SL Carbon handlebar-stem unit
• 1 x stem cover
• 1 x top cap
• 1 x spacer 20 mm
• 1 x spacer 10 mm
• 2 x spacers 5 mm
• 1 x end spacer 2 mm
• 4 x zip ties
• 2 x hole covers
