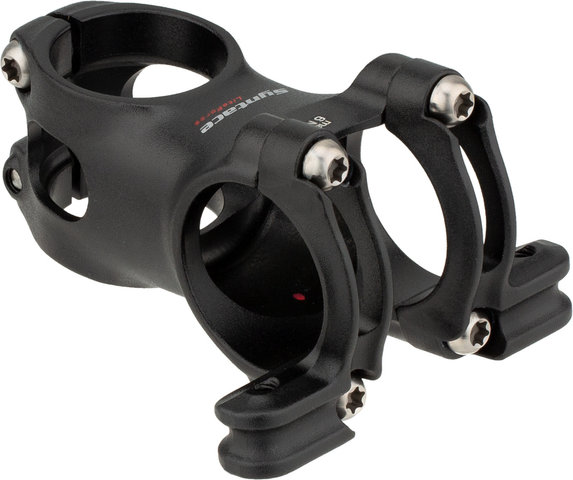

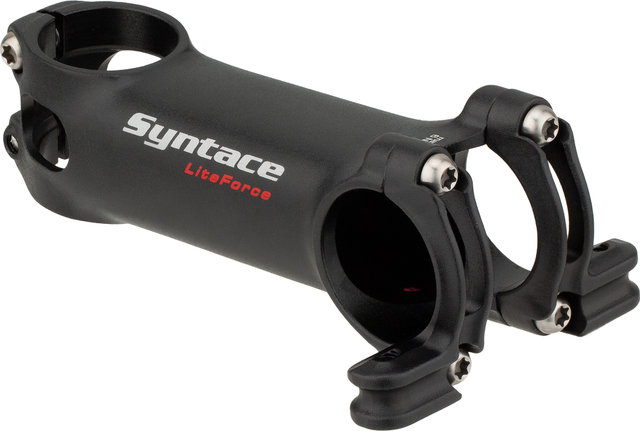

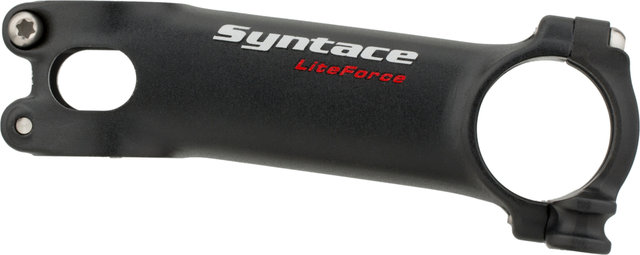

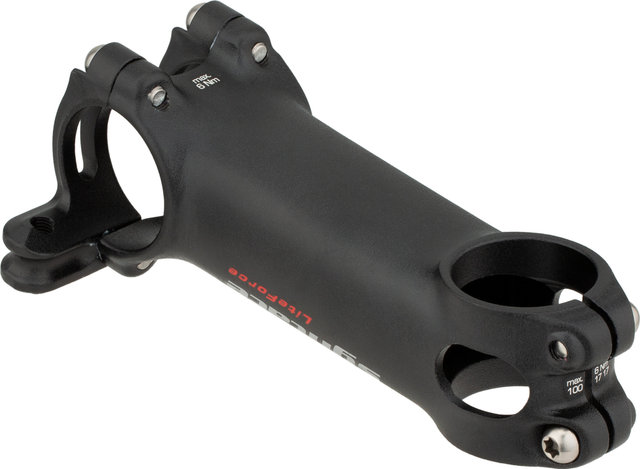

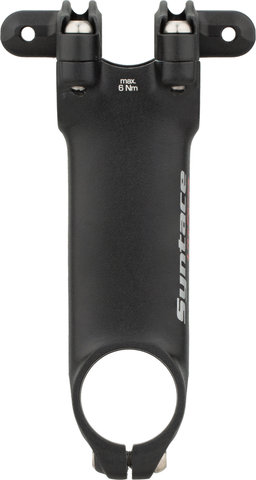

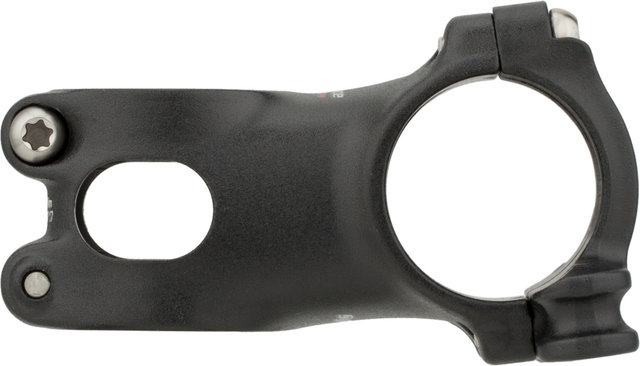

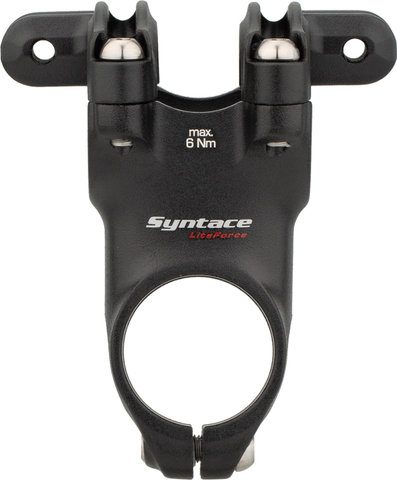

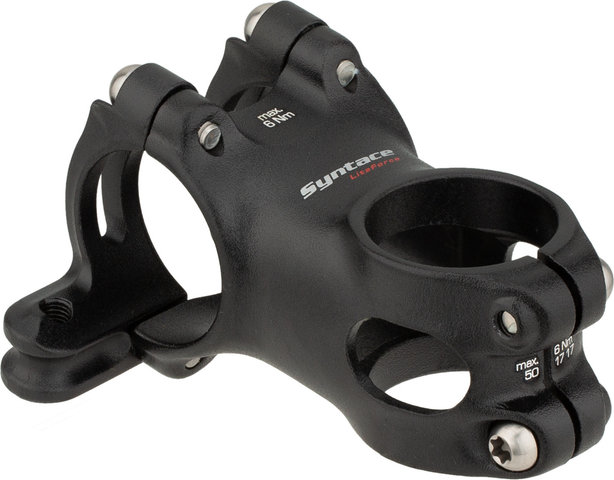

Syntace LiteForce TwinFix 31.8 Stem

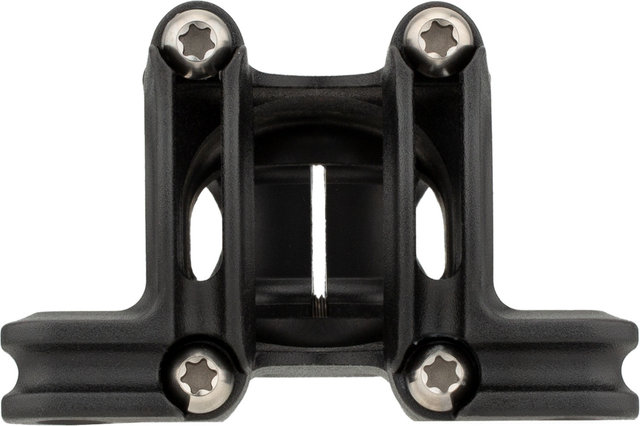

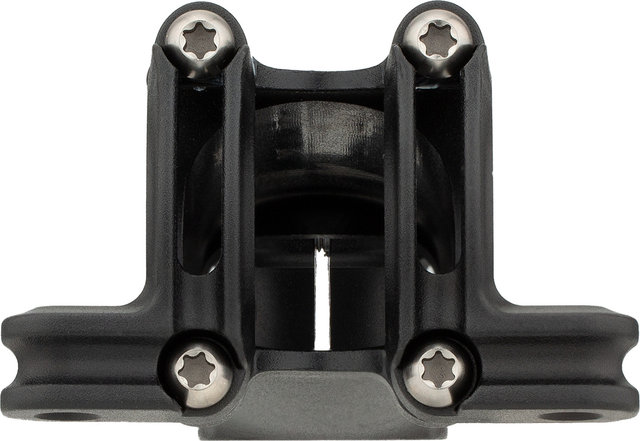

The LiteForce TwinFix stem from Syntace is as torsionally stiff as the MegaForce2, but has an approx. 15% lower weight. It can be mounted without spacers and enables FlipFlop mounting. The clamping plate is attached with four screws and offers a wide clamp on 31.8 mm handlebars.

Specifications:

Application:

Cross Country, Enduro, Gravel, Road

Design:

Ahead

Steerer Clamp:

1 1/8"

Stack Height:

34.5 mm

Handlebar Clamp:

31.8 mm

Lengths:

50 mm, 60 mm, 75 mm, 90 mm, 100 mm, 110 mm, 120 mm, 135 mm

Angle:

+6°/-6° (FlipFlop)

Technical Information:

Material:

Aluminium

Bolt Material:

titanium

Approved For:

Handlebar Width:

500 mm, 680 mm, 740 mm

Features:

• with TwinFix clamps
• evenly distributed, high clamping force due to four screws
• lightweight titanium bolts
• 3D-forged aluminium

Models:

50 mm 6°:

Length:

50 mm

Angle:

6°

Handlebar Width (max):

740 mm

Manufacturer Number:

152960

60 mm 6°:

Length:

60 mm

Angle:

6°

Handlebar Width (max):

740 mm

Manufacturer Number:

152977

75 mm 6°:

Length:

75 mm

Angle:

6°

Handlebar Width (max):

740 mm

Manufacturer Number:

152984

90 mm 6°:

Length:

90 mm

Angle:

6°

Handlebar Width (max):

740 mm

Manufacturer Number:

152991

100 mm 6°:

Length:

100 mm

Angle:

6°

Handlebar Width (max):

680 mm

Manufacturer Number:

153004

110 mm 6°:

Length:

110 mm

Angle:

6°

Handlebar Width (max):

680 mm

Manufacturer Number:

153011

120 mm 6°:

Length:

120 mm

Angle:

6°

Handlebar Width (max):

500 mm

Manufacturer Number:

153028

135 mm 6°:

Length:

111 mm

Angle:

6°

Handlebar Width (max):

500 mm

Manufacturer Number:

153035

Contents:

• 1 x Liteville LiteForce TwinFix stem
• 2 x TwinFix clamps
• 6 x TX25 titanium bolt

• black/+6°/-6° (FlipFlop)/50 mm: 82 g
• black/+6°/-6° (FlipFlop)/60 mm: 86 g
• black/+6°/-6° (FlipFlop)/75 mm: 94 g
• black/+6°/-6° (FlipFlop)/90 mm: 98 g
• black/+6°/-6° (FlipFlop)/120 mm: 116 g
• black/+6°/-6° (FlipFlop)/135 mm: 122 g
