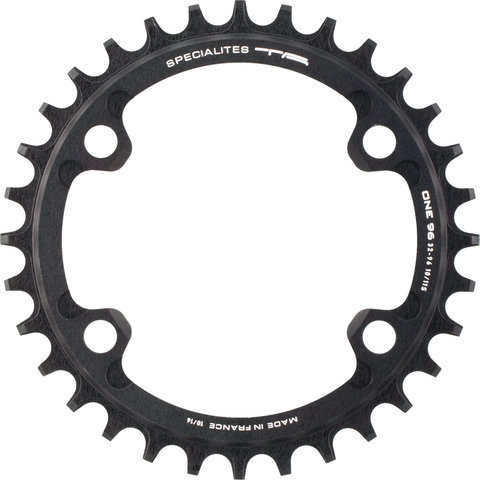

TA ONE 96 Chainring, 4-arm, 96 mm BCD

The TA ONE 96 is a chainring that allows conversion from 2x to 1 x 10/11/12-speed.

Specifications:

Application:

Cross Country, All Mountain, Enduro

Mount:

96 mm bolt circle diameter, 4-arm

Teeth:

30 T, 34 T, 36 T

Gearing:

1x10-speed, 1x11-speed, 1x12-speed

Technical Information:

Material:

aluminium (7075-T6)

Compatibility:

Cranks:

• Shimano XTR M9000 1x, 2x
• Shimano XTR M9020 1x, 2x
• Shimano XTR M9020 3x (middle position)
• Shimano XT M8000 1x, 2x
• Shimano SLX M7000 1x, 2x
• Shimano MT700 2x
• Shimano Deore M6000 2x
• Shimano FC-M5100 1x
• Shimano FC-M4100 1x, 2x
• Shimano FC-MT500 1x, 2x

Chains:

• Shimano 10-/11-speed chains
• SRAM 10-/11-/12-speed chains

Features:

• single chainring for conversion to 1x
• alternates between narrow and wide teeth
• matt finish
• original hardware can still be used (except for FC-M9020-3, here use XTR M9000 chainring bolt set)
• designed and produced in France

Manufacturer Numbers:

30 tooth:

PL-48096339-30

32 tooth:

PL-48096339-32 sold-out

34 tooth:

PL-48096339-34

36 tooth:

PL-48096339-36

Contents:

- 1 x TA ONE 96 chainring
