TRP Disc Brake Adapter for 223 mm Rotors

The disc brake adapter from TRP for a brake rotor with 223 mm diameter

With the TRP disc brake adapter, you can mount the brake caliper on your bike to fit a 223 mm brake rotor. Please note the mounting standards of your components.

Technical Information:

Adapter Material:

aluminium

Rotor Size:

223 mm

Models:

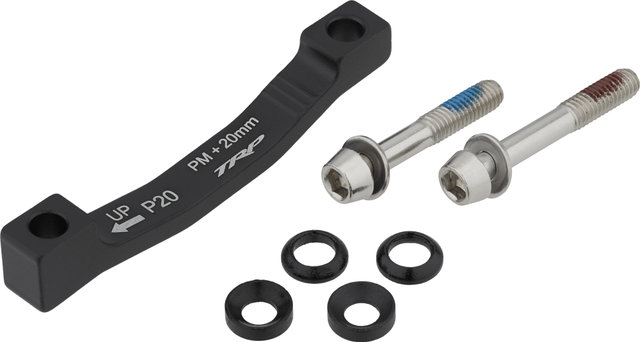

PM 8" to PM +20 mm:

Manufacturer Designation:

P20

Frame Mount:

post mount 8"

Fork Mount:

post mount 8"

Caliper Mount:

post mount

Increased Height:

20 mm

Manufacturer Number:

ABAD000143

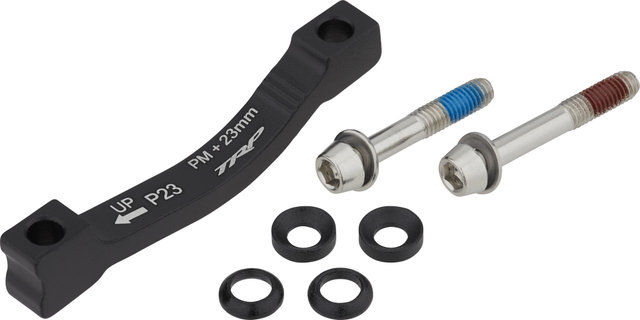

PM 8" to PM +23 mm:

Manufacturer Designation:

P23

Frame Mount:

post mount 8"

Fork Mount:

post mount 8"

Caliper Mount:

post mount

Increased Height:

23 mm

Manufacturer Number:

ABAD000144

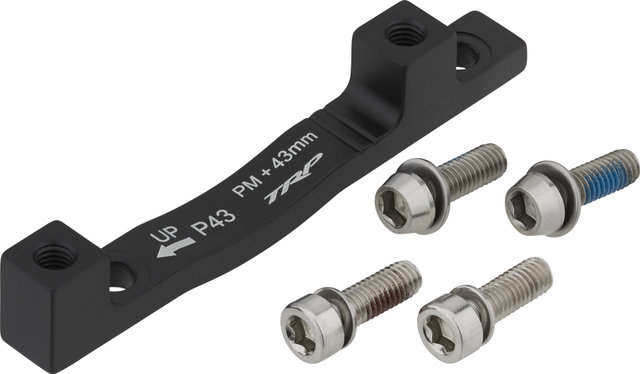

PM 7" to PM +43 mm:

Manufacturer Designation:

P43

Frame Mount:

post mount 7"

Fork Mount:

post mount 7"

Caliper Mount:

post mount

Increased Height:

43 mm

Manufacturer Number:

ABAD000146

Contents:

• 1 x TRP disc brake adapter
• 2 x bolts (for PM 8" to PM +20 mm, PM 8" to PM +23 mm)
• 4 x washers concave / convex (for PM 8" to PM +20 mm, PM 8" to PM +23 mm)
• 4 x bolts (for PM 7" to PM +43 mm)
